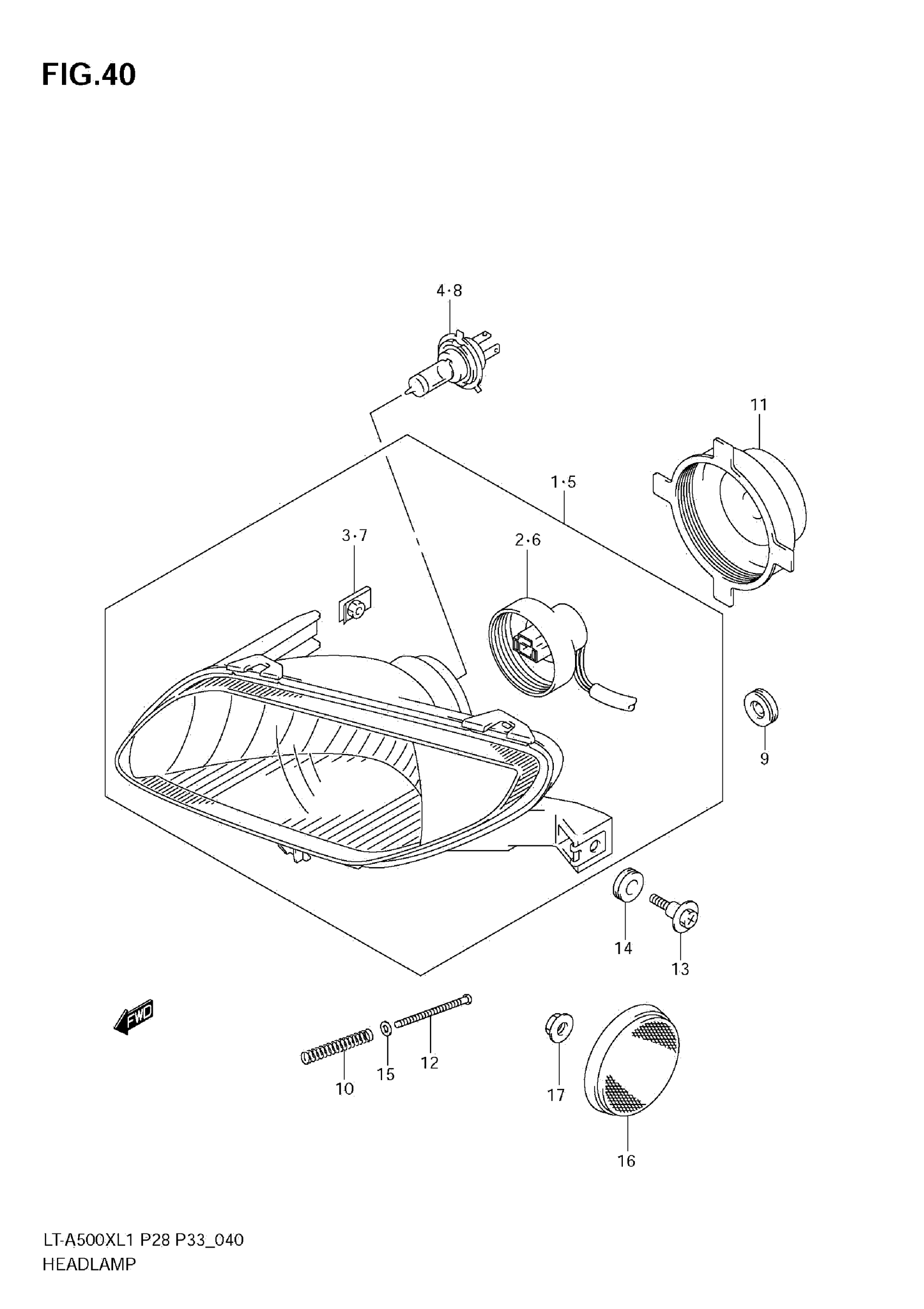

Suzuki LT-A500XL1 (2011) HEADLAMP (LT-A500XZ L1 E28) Diagram

Description

Price

HEADLAMP ASSY, RH

35100-31G90-999

Unavailable

CORD ASSY, RH

35171-31GM1

$30.10

NUT

35157-31G90

$5.30

BULB (12V35/35W)

09471-12101

$64.80

HEADLAMP ASSY LH This part replaces 35300-31G90-999.

35300-31G92-999

$102.70

CORD ASSY, LH

35171-31GH1

$38.48

NUT

35157-31G90

$5.30

BULB (12V35/35W)

09471-12101

$64.80

GROMMET, HEADLAMP HOUSING

09308-07011

$2.62

SPRING, HEADLAMP ADJUST

35154-31300

$3.70

COVER,HEADLAMP HOUSING

35174-31G00

$10.62

SCREW (4X50)

09125-04031

$2.28

SCREW (6X22.5)

09139-06118

$3.25

CUSHION

09320-10501

$6.23

WASHER

08322-0104A

$1.91

REFLEX REFLECTOR ASSY, FR SID This part replaces 35950-14A10.

35950-14A11

$15.23

NUT

08316-1005B

$2.50
