2011 Suzuki LT-A500XL1 Gasket SET Diagram

← All diagrams

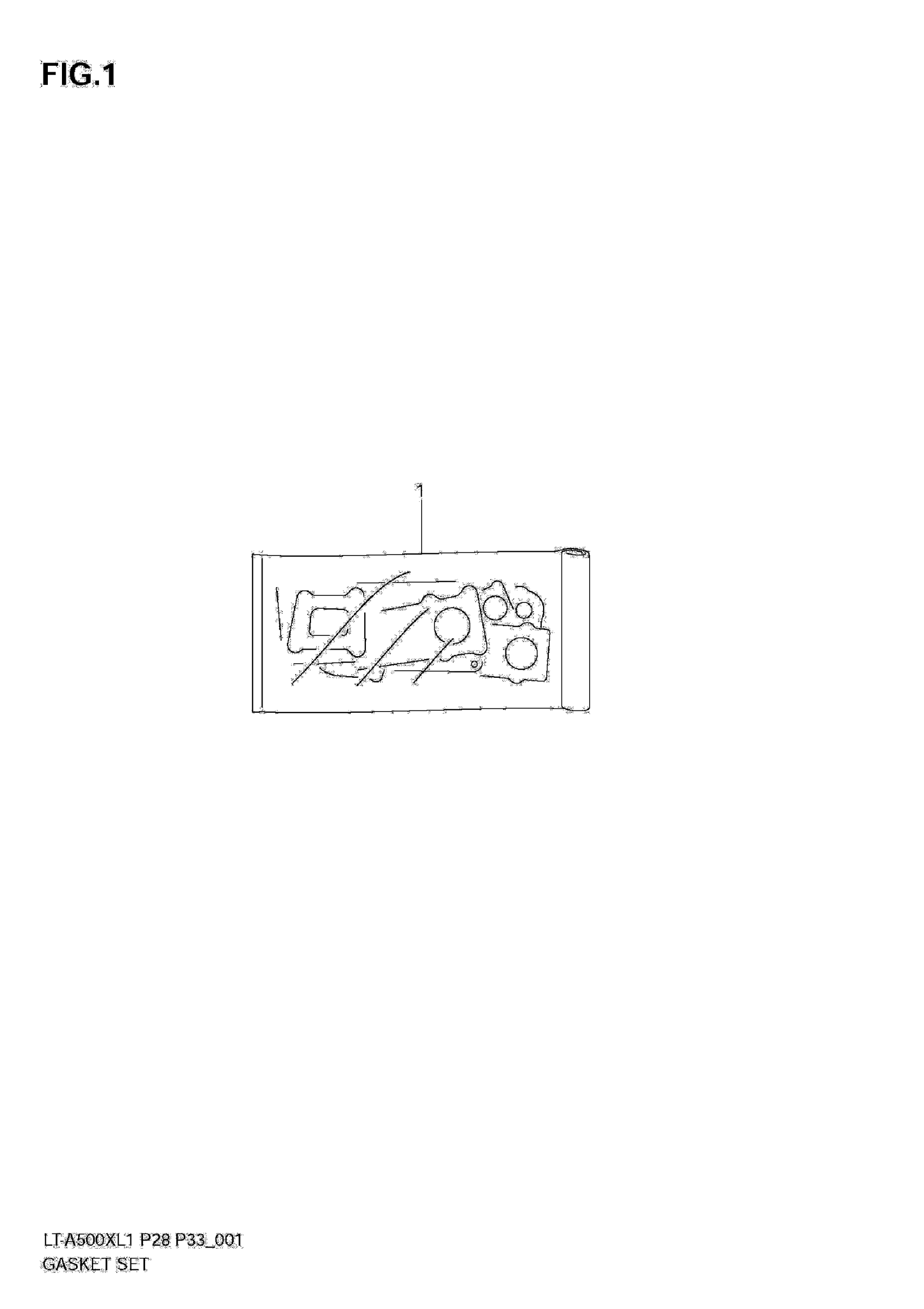

Find the part on the Gasket SET diagram for your 2011 Suzuki LT-A500XL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki LT-A500XL1 Gasket SET Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET SET

11400-11830

1
Out of stock

2

GASKET, CYLINDER HEAD | NOT SHOWN

11141-31H00

1
Out of stock

3

.O RING,INSPECTION CAP | NOT SHOWN

11177-14D01

2
Out of stock

4

GASKET, CYLINDER | NOT SHOWN

11241-11H00

1
Out of stock

5

GASKET, CLUTCH COVER | NOT SHOWN

11482-11H00

1
Out of stock

6

GASKET, MAGNETO COVER (NA) | NOT SHOWN

11483-11H00

1
Out of stock

7

.GASKET,TENSIONER ADJUSTER | NOT SHOWN

12837-24A10

1
Out of stock

8

.GASKET,EXHAUST | NOT SHOWN

14181-18C00

1
Out of stock
