2011 Suzuki LT-A500XL1 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2011 Suzuki LT-A500XL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

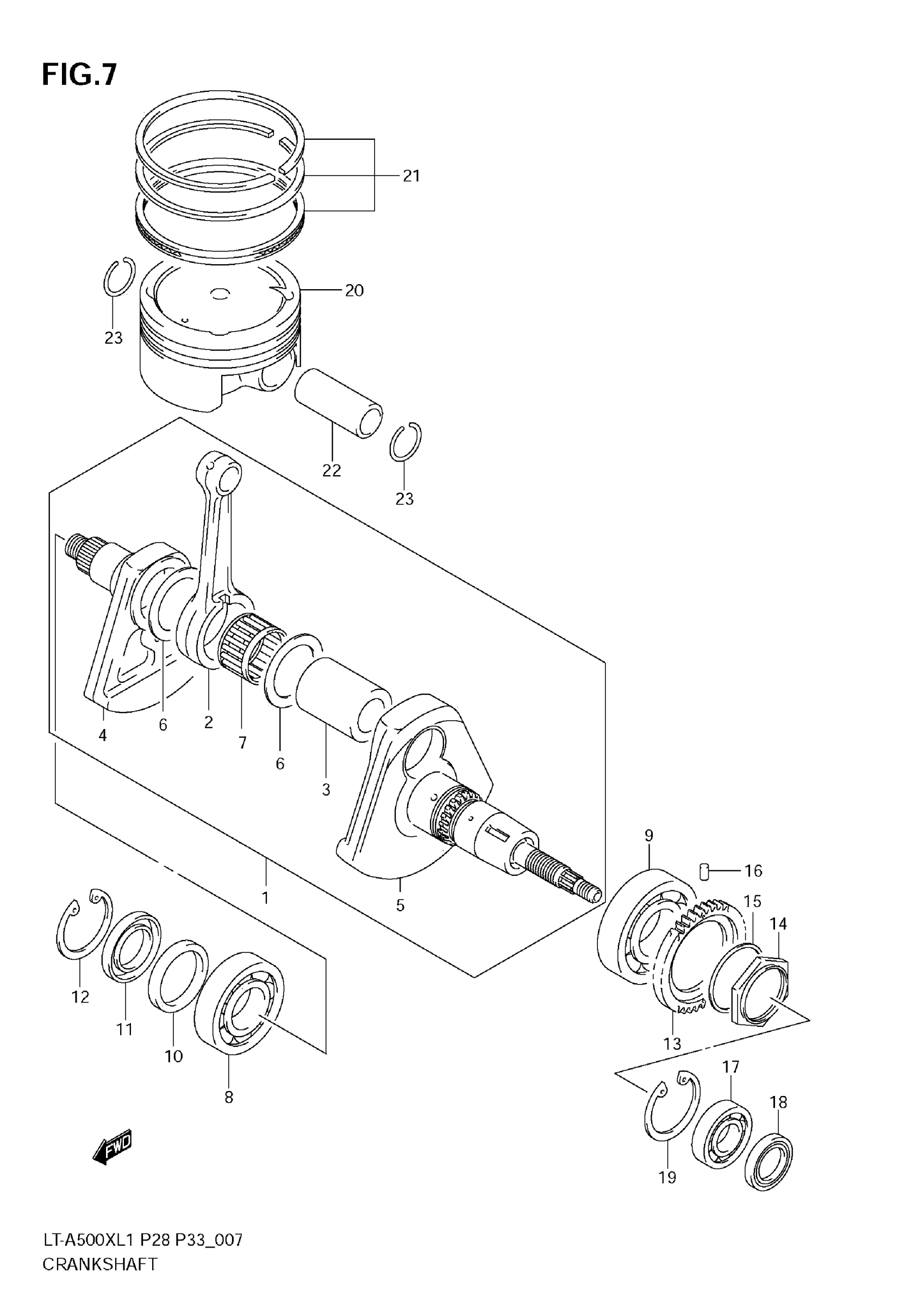

2011 Suzuki LT-A500XL1 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY

12200-11H00

1

$1,046.63

In stock

2

CONNROD

12161-11H00

1

$183.72

In stock

3

PIN, CRANK

12210-11H00

1

$81.27

In stock

4

CRANKSHAFT RH

12220-11H00

—
Out of stock

5

CRANKSHAFT LH

12261-11H00

—
Out of stock

6

WASHER

09160-35005

2

$6.55

In stock

7

BEARING (35X44X25)

09263-35043

1

$107.57

In stock

8

BEARING (40X80X18)

09262-40008

1

$87.28

In stock

9

BEARING (45X85X19)

09262-45007

1

$113.63

In stock

10

OIL SEAL (34X49X6)

09282-34003

1

$48.43

In stock

11

OIL SEAL (34X52X6)

09282-34001

1
Out of stock

12

1

$4.83

In stock

13

1

$170.68

In stock

14

1

$27.13

In stock

15

WASHER (45X60X1.2)

09160-45006

1

$7.03

In stock

16

PIN

09261-05005

1
Out of stock

17

BEARING (25X47X8)

09262-25006

1
Out of stock

18

OIL SEAL (25X42X6)

09283-25095

1
Out of stock

19

CIRCLIP

08331-41479

1
Out of stock

20

1

$85.96

In stock

21

RING SET, PISTON

12140-03G20

1

$117.03

In stock

22

PIN,PISTON

12151-24A00

1
Out of stock

23

CIRCLIP

09381-20004

2
Out of stock
