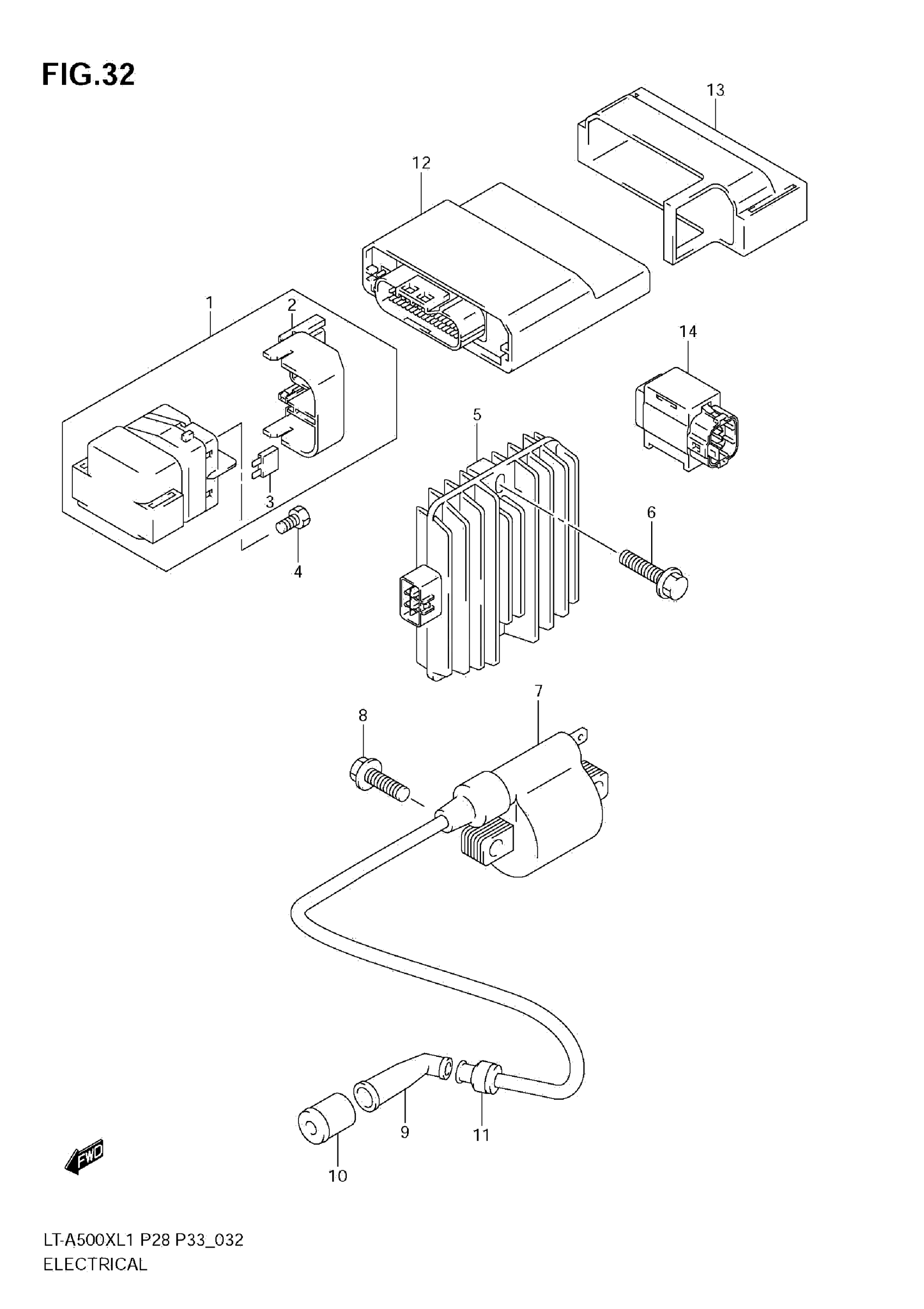

Suzuki LT-A500XL1 (2011) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR This part replaces 31800-41G00.

31800-41G10

$92.59

2

COVER, STARTER RELAY

31861-38G00

$4.88

3

FUSE (30A)

09481-30501

$2.32

4

BOLT (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-42F00

$237.18

6

BOLT

02162-0625B

$2.10

7

COIL ASSY, IGNITION

33410-19B10

$98.83

8

BOLT

01550-0620B

$2.39

9

CAP ASSY, SPARK PLUG

33510-43010

$24.99

10

SEAL, SPARK PLUG CAP

33541-44D00

$5.30

11

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

12

CONTROL UNIT,FI This part replaces 32920-31H10.

32920-31H11

$749.50

13

HOLDER, FI CONTROL UNIT

32980-31G00

$15.25

14

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92
