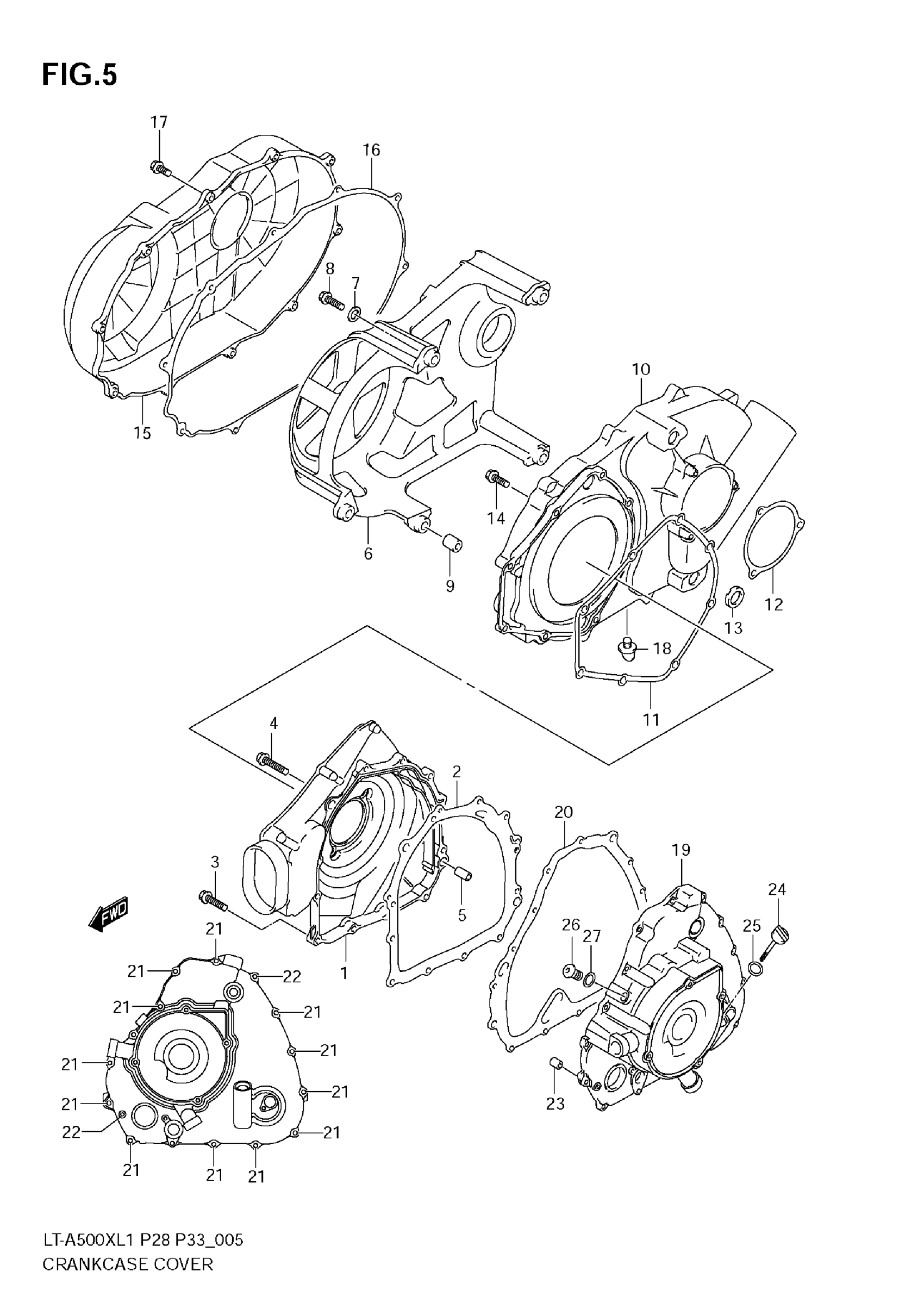

Suzuki LT-A500XL1 (2011) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-11H00

$197.56

2

GASKET

11482-11H00

$14.02

3

BOLT

01547-0625B

$2.45

4

BOLT

01547-0635B

$2.73

5

PIN

04211-11169

$1.78

6

HOUSING, BELT BEARING

11342-11H00

$255.65

7

GASKET, V-BELT BEARING HOUSIN This part replaces 11488-11H00.

11488-11H01

$2.68

8

BOLT

01547-0635B

$2.73

9

PIN

04211-09149

$1.65

10

COVER, BELT INNER

11370-11H00

$162.78

11

GASKET, V-BELT COVER INNER FR This part replaces 11484-11H00.

11484-11H01

$17.45

12

GASKET

11485-31G00

$7.85

13

GASKET, V-BELT COVER INNER This part replaces 11487-11H00.

11487-11H01

$3.27

14

BOLT

01547-0625B

$2.45

15

COVER, BELT OUTER

11380-11H00

$147.54

16

GASKET, V-BELT COVER OUTER This part replaces 11486-11H00.

11486-11H01

$17.98

17

BOLT

01547-0625B

$2.45

18

PLUG, WATER DRAIN

11375-31G00

$4.03

19

COVER, MAGNETO

11350-11H10

$312.43

20

GASKET

11483-11H00

$28.07

21

BOLT

01547-0625B

$2.45

22

BOLT

01547-0635B

$2.73

23

PIN

04211-11169

$1.78

24

GAUGE,OIL LEVEL

11971-09F50

$9.78

25

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

26

PLUG, SHAFT This part replaces 09248-14012.

09248-14011

$2.98

27

GASKET (14X18X1.5)

09168-14014

$1.70
