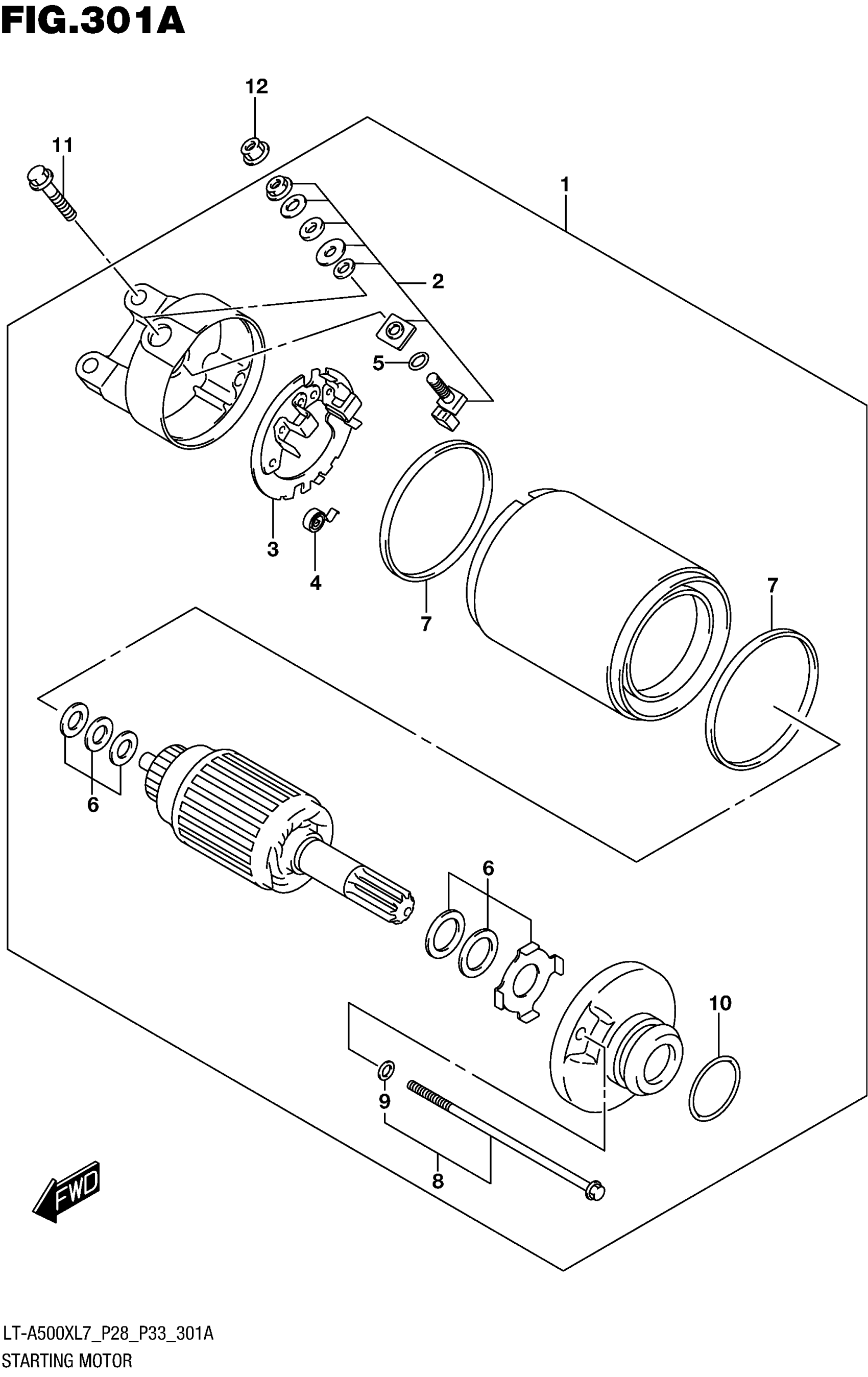

Suzuki LT-A500X AXI (RED, GREEN) (2017) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING

31100-11H00

$560.20

2

.TERMINAL SET, BRUSH

31130-13E00

$44.18

3

.HOLDER SET, BRUSH

31132-13E00

$56.75

4

.SPRING, BRUSH

31135-31300

$4.96

5

.O RING

31143-49040

$3.71

6

.WASHER SET

31170-19B10

$12.57

7

.O RING

31264-13E00

$6.68

8

.SET BOLT

31280-19F00

$20.45

9

..O RING

31156-13E00

$4.35

10

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

11

BOLT

01547-0625A

$2.01

12

NUT

08361-3506A

$1.80
