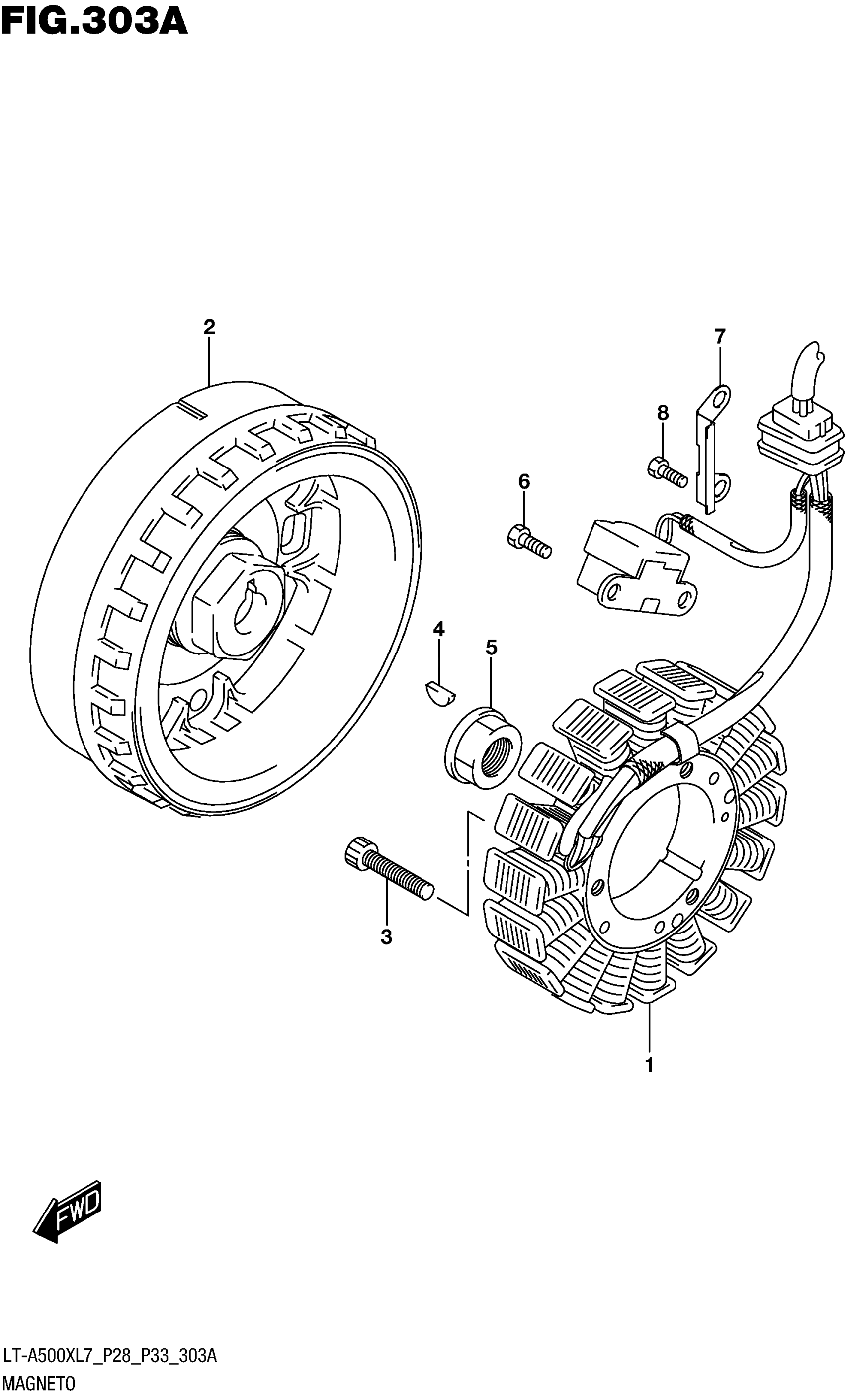

Suzuki LT-A500X AXI (RED, GREEN) (2017) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY This part replaces 32101-11H00.

32101-11H01

$554.60

2

ROTOR ASSY

32102-11H00

$704.90

3

BOLT

07130-0635A

$3.16

4

KEY

09420-05007

$4.60

5

NUT,MAGNETO ROTOR

31792-11H00

$11.78

6

BOLT (5X10)

09100-05019

$1.93

7

CLAMP, MAGNETO LEAD

32371-11H00

$5.05

8

BOLT (5X10)

09100-05019

$1.93
