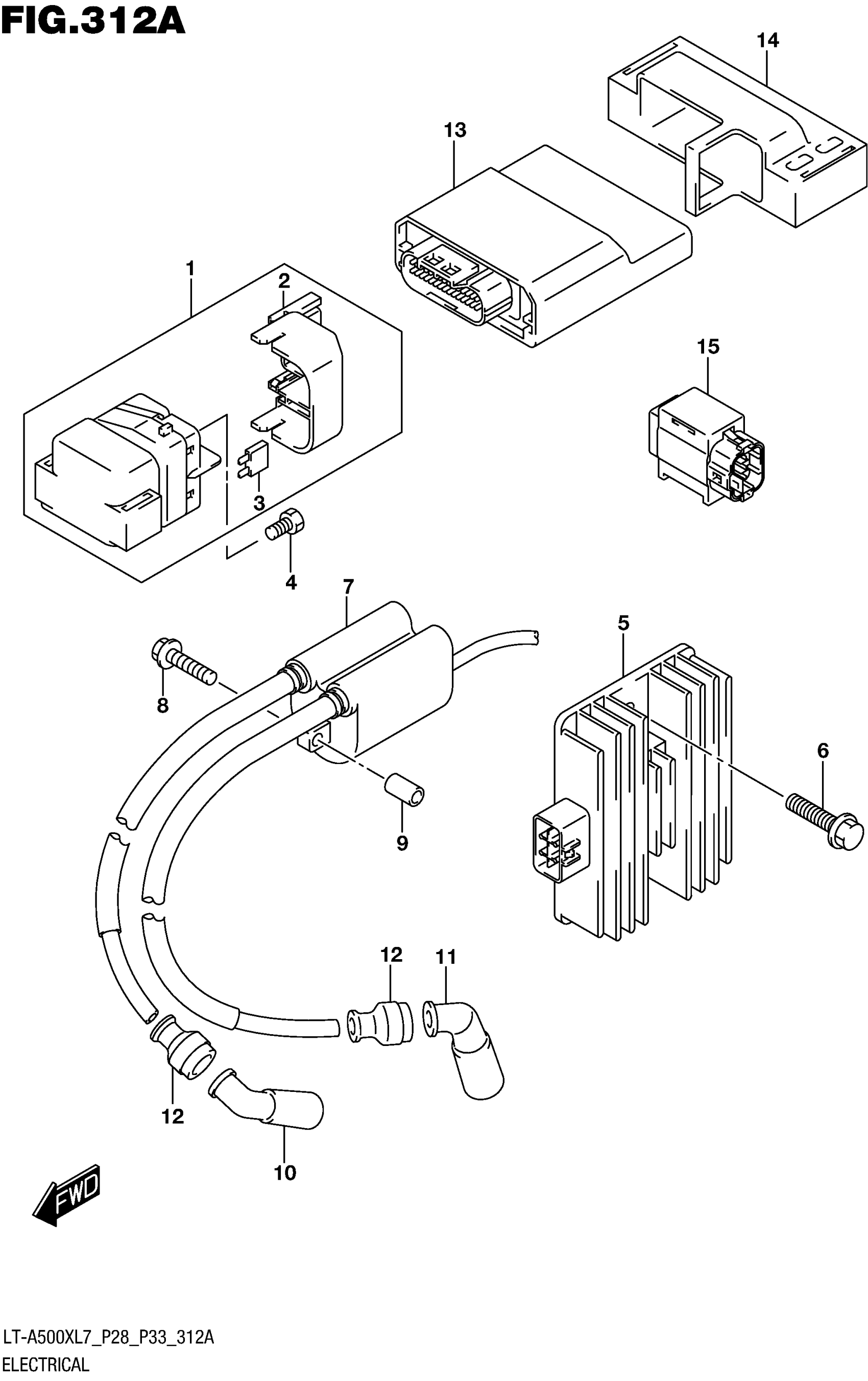

Suzuki LT-A500X AXI (RED, GREEN) (2017) ELECTRICAL Diagram

#

Description

Price

1

RELAY ASSY, STARTING MOTOR This part replaces 31800-41G00.

31800-41G10

$92.59

2

.COVER

31861-38G00

$4.88

3

.FUSE (30A)

09481-30501

$2.32

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-42F10

$238.72

6

BOLT

01550-0620A

$1.97

7

COIL ASSY, IGNITION This part replaces 33410-40H00.

33410-40H01

$106.57

8

BOLT

01547-0640A

$2.32

9

SPACER (6.4X10X18)

09180-06195

$3.68

10

CAP ASSY,SPARK PLUG

33510-31G10

$32.95

11

CAP ASSY,SPARK PLUG

33510-31G10

$32.95

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

13

CONTROL UNIT,FI This part replaces 32920-31HA0.

32920-31HA1

Unavailable

14

HOLDER, FI CONTROL UNIT

32980-31GA0

$42.80

15

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92
