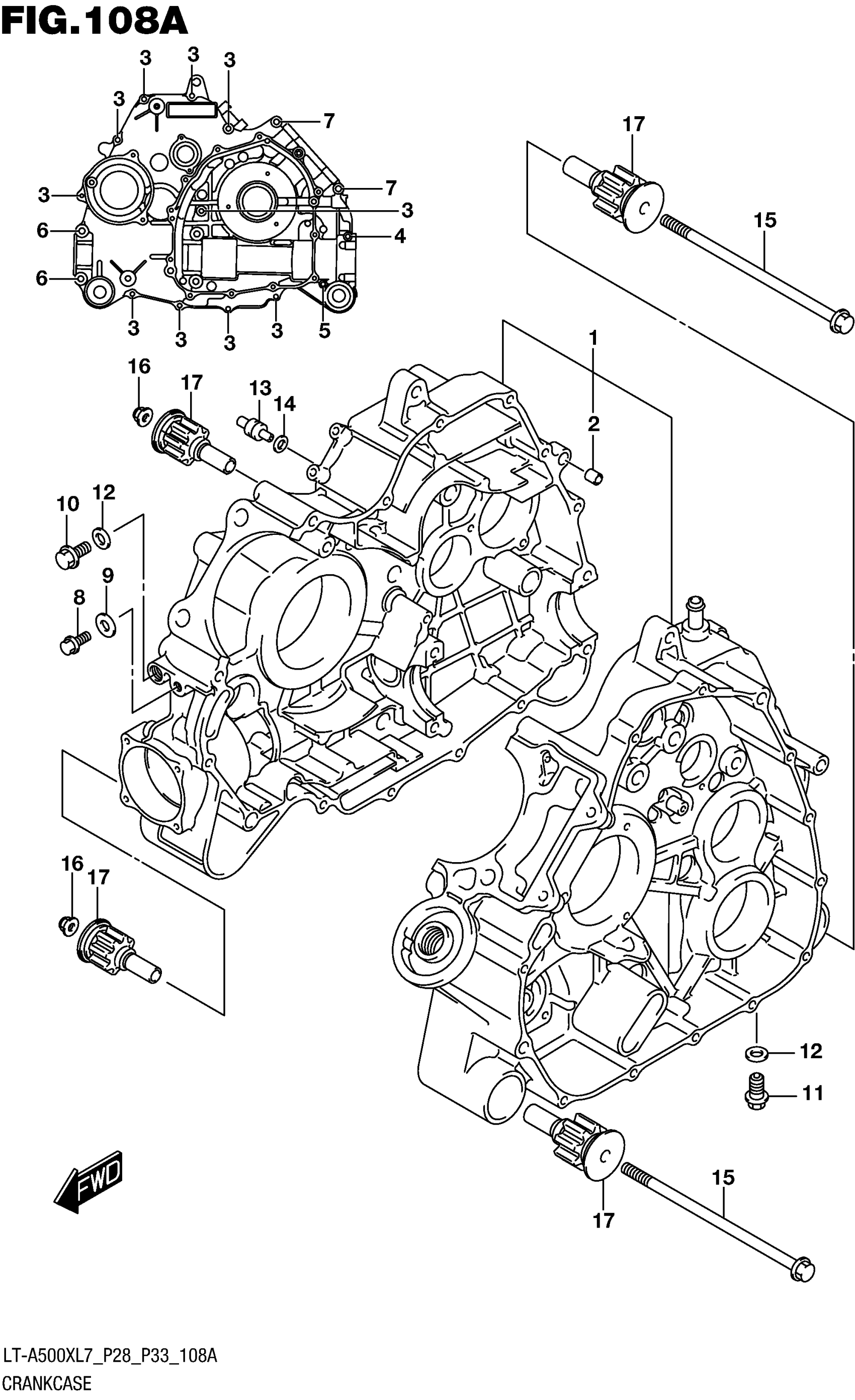

Suzuki LT-A500X AXI (RED, GREEN) (2017) CRANKCASE Diagram

Description

Price

CRANKCASE SET This part replaces 11301-11870.

11301-11871

$1,673.83

.PIN

04211-11169

$1.78

BOLT

01547-0650A

$2.46

.BOLT

01547-0680A

$3.30

.BOLT

01547-0690A

$2.70

.BOLT

01550-0850A

$3.67

BOLT

01550-0875A

$3.55

BOLT (8X12)

01550-0812A

$2.32

GASKET (8.2X14X1)

09168-08016

$1.65

PLUG (12X10)

09247-12006

$2.82

PLUG, DRAIN | OIL DRAIN This part replaces 09247-12102.

09247-12104

$2.73

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

JET,T/M OIL GALLERY

09493-20014

$16.87

O RING (D:1.2,ID:4)

09280-04004

$1.91

BOLT (10X195)

09103-10118

$11.56

NUT

09159-10115

$3.55

BUSH, ENG MTG

11651-31G10

$21.96
