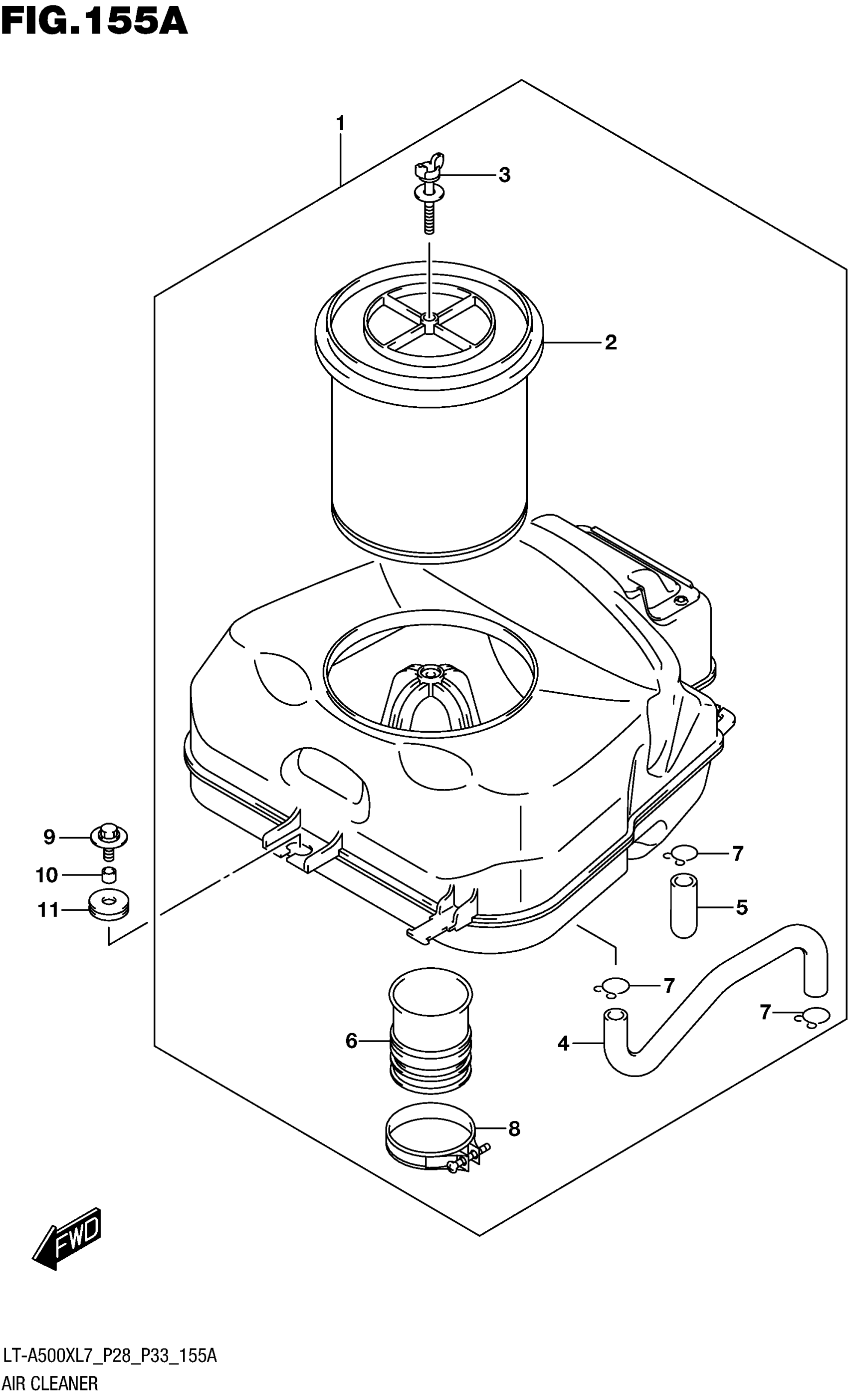

Suzuki LT-A500X AXI (RED, GREEN) (2017) AIR CLEANER Diagram

#

Description

Price

1

CLEANER ASSY,AI This part replaces 13700-11H30.

13700-11H31

$282.57

2

.FILTER ASSY

13780-31G30

$69.56

3

.BOLT, WING

13831-31G00

$7.71

4

.TUBE, BREATHER This part replaces 13853-31G00.

13853-31G01

$23.47

5

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

$5.41

6

.TUBE, OUTLET This part replaces 13881-11H01.

13881-11H02

$13.42

7

.CLIP

09401-14101

$2.44

8

.CLAMP

09402-52208

$4.99

9

BOLT (6X20)

09116-06149

$4.12

10

SPACER (6.1X8X9.5)

09180-06248

$2.21

11

CUSHION

09320-08028

$2.82
