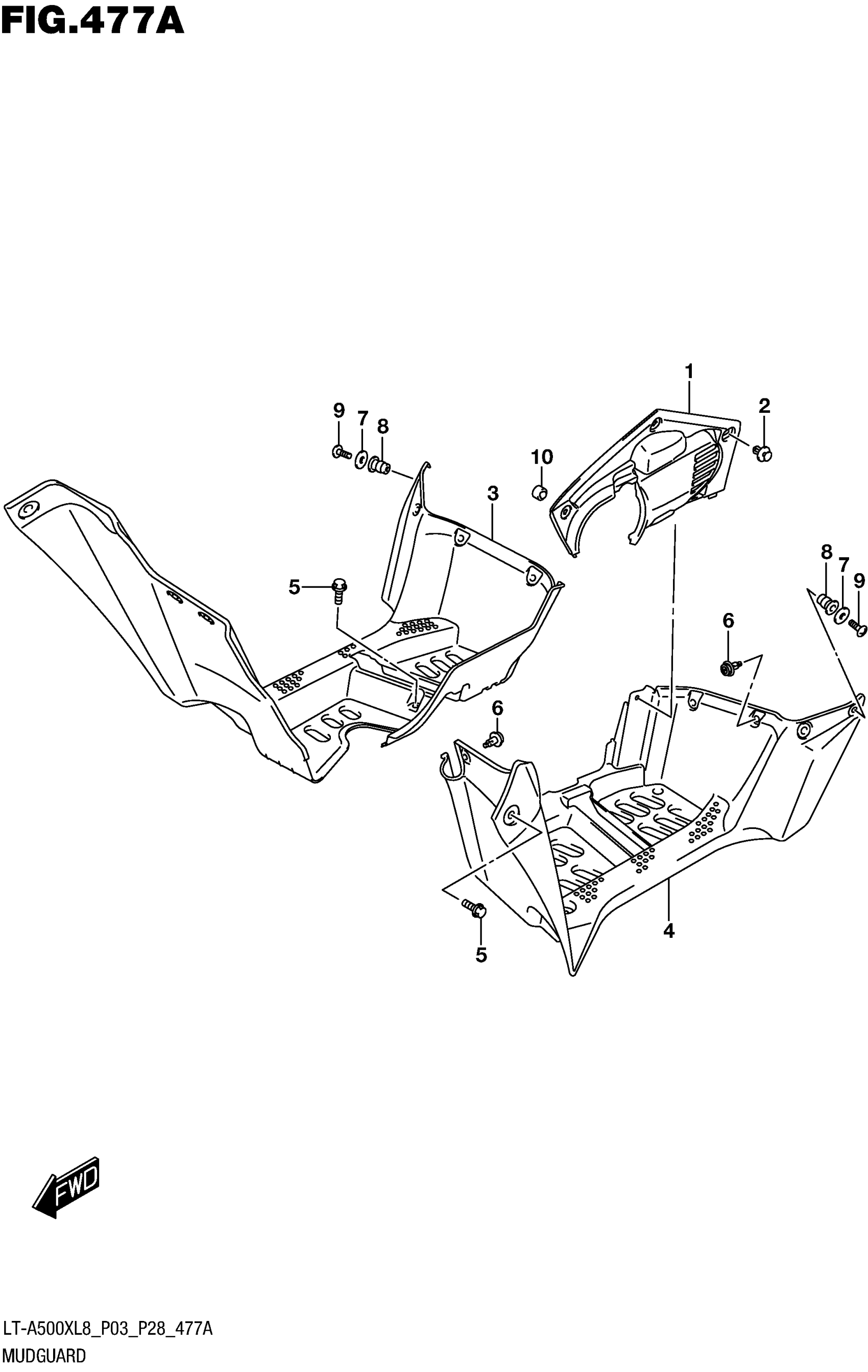

Suzuki LT-A500X, AXI, L8 (2018) MUDGUARD Diagram

#

Description
Price

1

LID (BLACK)

63342-31GA0-291

$21.45

2

CLIP

09409-08335

$2.47

3

MUDGUARD,FRONT This part replaces 63331-31G01-291.

63331-31G03-291

$47.34

4

MUDGUARD,FRONT This part replaces 63341-31G01-291.

63341-31G03-291

$158.41

5

BOLT (6X13.5)

09111-06088

$2.03

6

CLIP

09409-10306

$3.04

7

WASHER (5.5X20X1.4)

09160-05046

$1.92

8

NUT

09159-05019

$7.14

9

SCREW

02142-0520B

$1.78

10

CUSHION

09321-10019

$4.90
