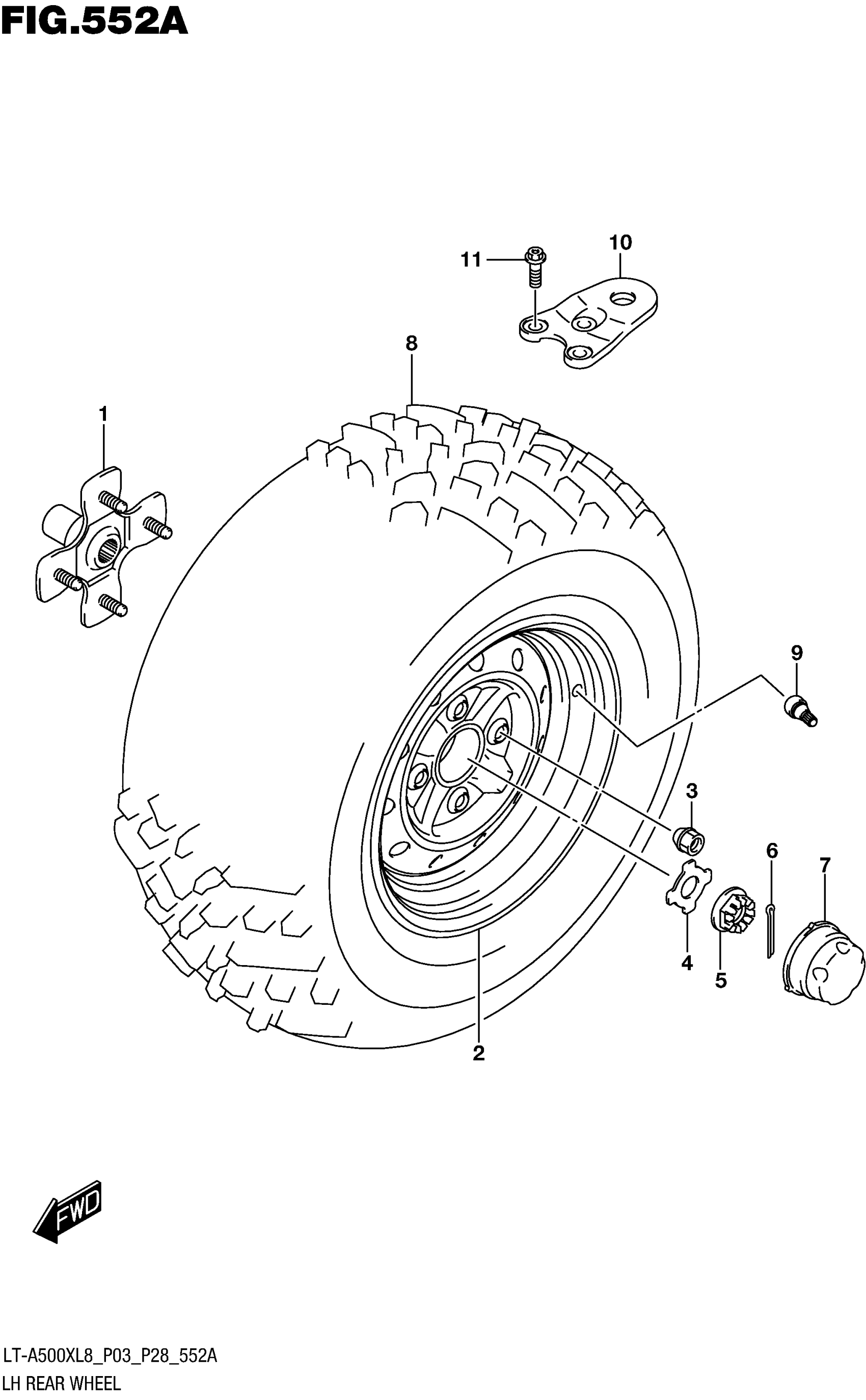

Suzuki LT-A500X, AXI, L8 (2018) LH REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL LH

64110-31G10

$247.50

2

RIM, REAR WHEEL (12X7.5AT)

65310-11H00-291

Unavailable

2

(BLACK)

65310-11H00-291

Unavailable

3

NUT

09140-10021

$2.09

4

WASHER

64723-03G00

$23.48

5

NUT

09141-20008

$17.59

6

COTTER PIN

04111-4035A

$1.41

7

CAP,WHEEL CENTER

54725-09F01

$9.53

8

TIRE,REAR (AT25X10-12) | AT489

65110-31G30

$326.70

8

TIRE,REAR (AT25X10-12) | CARLISLE

65110-31G30

$326.70

9

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.46

10

PLATE, TRAILER TOW

95211-31G00

$43.30

11

BOLT (10X30)

09103-10366

$2.95
