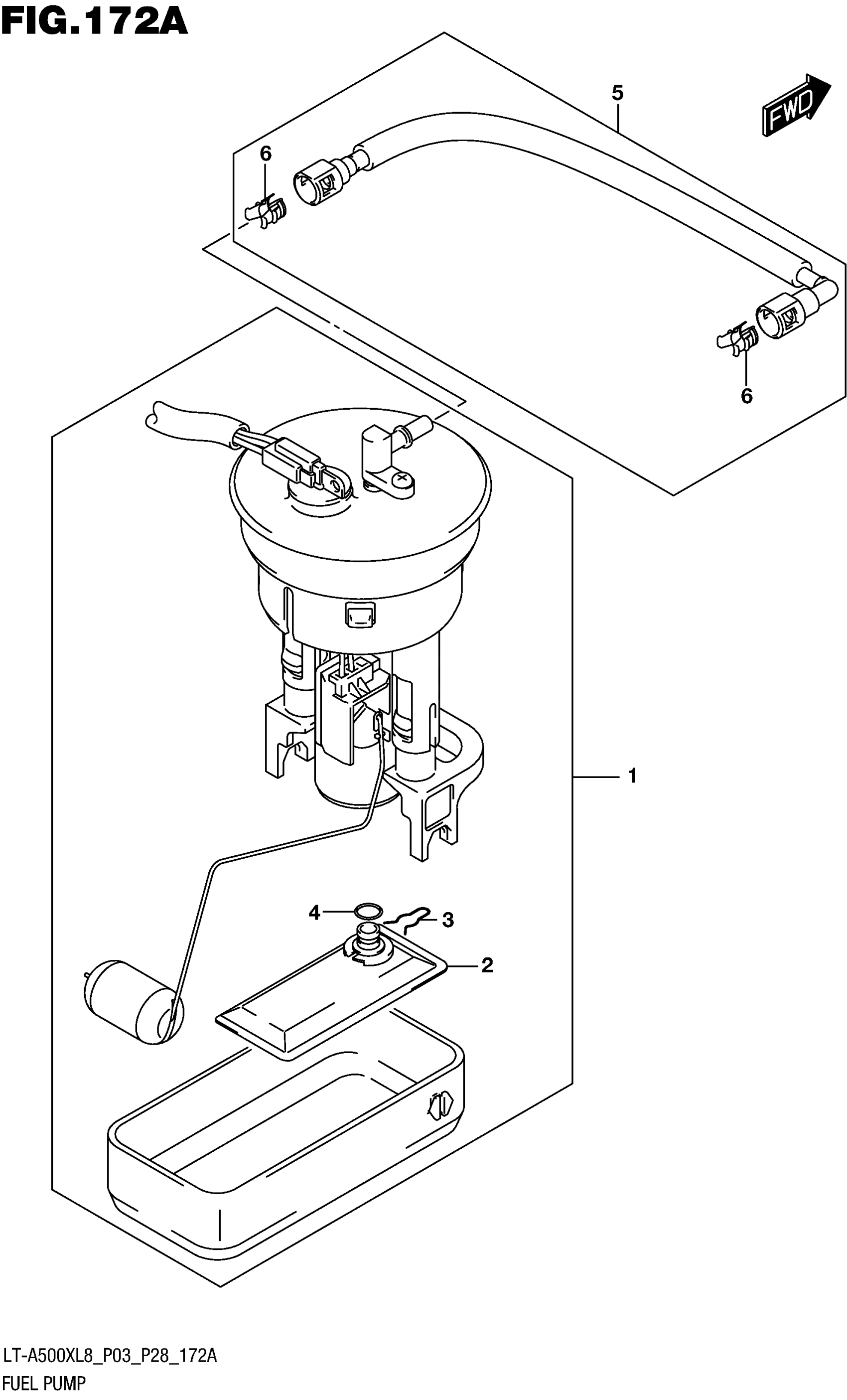

Suzuki LT-A500X, AXI, L8 (2018) FUEL PUMP Diagram

#

Description

Price

1

PUMP ASSY, FUEL This part replaces 15100-31G30.

15100-31G31

$400.79

2

.FILTER SET, FUEL PUMP

15420-31G00

$72.74

3

..CLIP

15421-31G00

$2.97

4

..O RING

15424-31G00

$6.57

5

HOSE, FUEL This part replaces 15810-31G02.

15810-31G03

$36.78

6

.RETAINER

15815-35F00

$7.83
