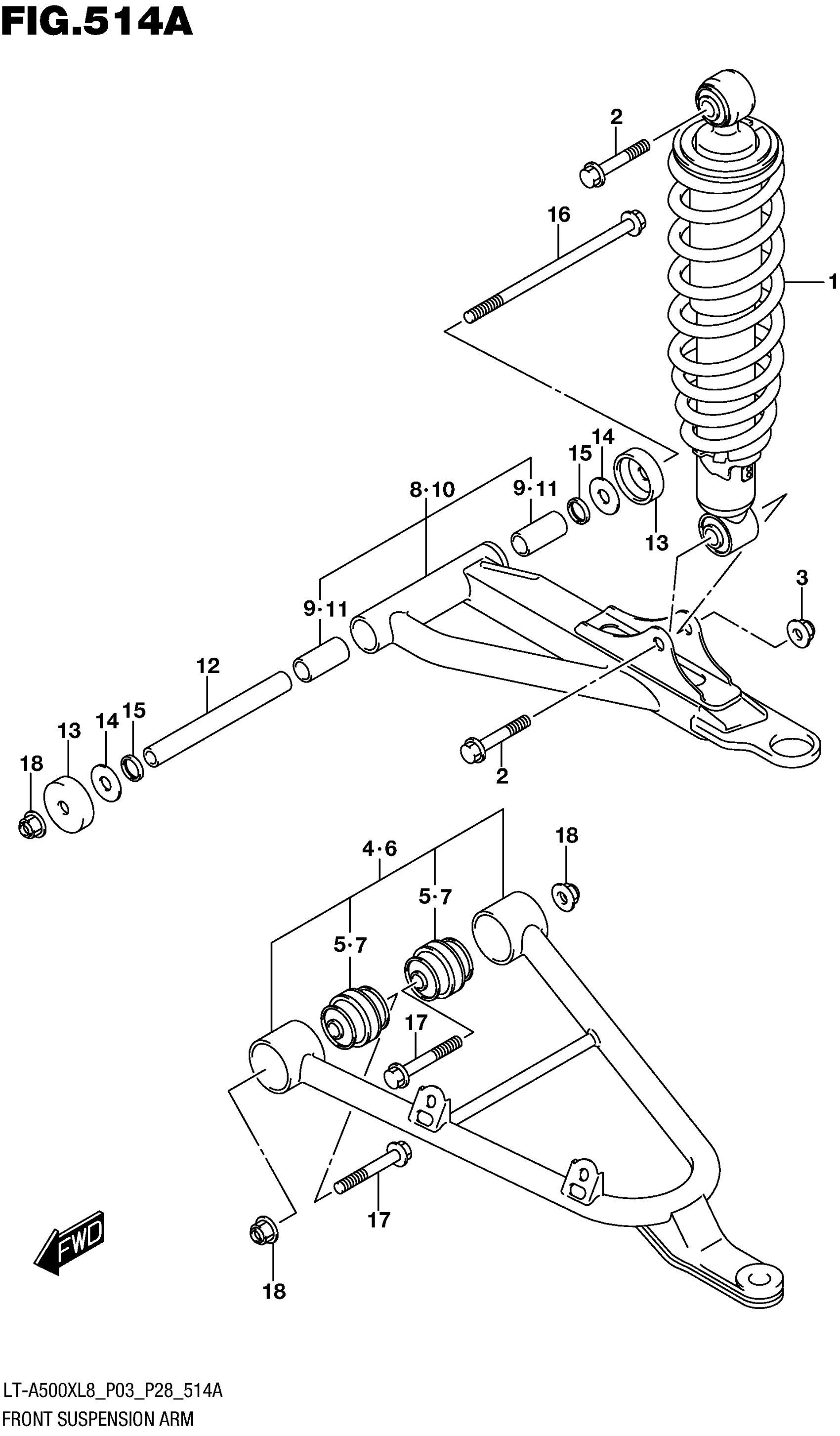

Suzuki LT-A500X, AXI, L8 (2018) FRONT SUSPENSION ARM Diagram

#

Description
Price

1

ABSORBER ASSY, FRONT SHOCK

52100-11H10-019

$162.03

1

(BLACK)

52100-11H10-019

$162.03

2

BOLT (10X48)

09103-10126

$4.50

3

NUT

09159-10115

$3.55

4

ARM SET, SUSPENSION LOWER RH

52410-31820

$311.55

5

.BUSH

09319-10055

$21.02

6

ARM SET, SUSPENSION LOWER LH

52420-31820

$308.65

7

.BUSH

09319-10055

$21.02

8

ARM SET, SUSPENSION UPPER RH

52430-31820

$301.47

9

.BUSH

51236-31G00

$16.84

10

ARM SET, SUSPENSION UPPER LH

52440-31820

$290.42

11

.BUSH

51236-31G00

$16.84

12

SPACER, FR SUSPENSION ARM

52455-31G10

$27.21

13

SEAL, FR SUSPENSION ARM PIVOT

51255-18900

$4.48

14

WASHER

08211-10281

$2.03

15

SEAL

52454-45G00

$7.44

16

BOLT (10X160)

09103-10389

$9.78

17

BOLT (10X57)

09103-10255

$7.78

18

NUT

09159-10115

$3.55
