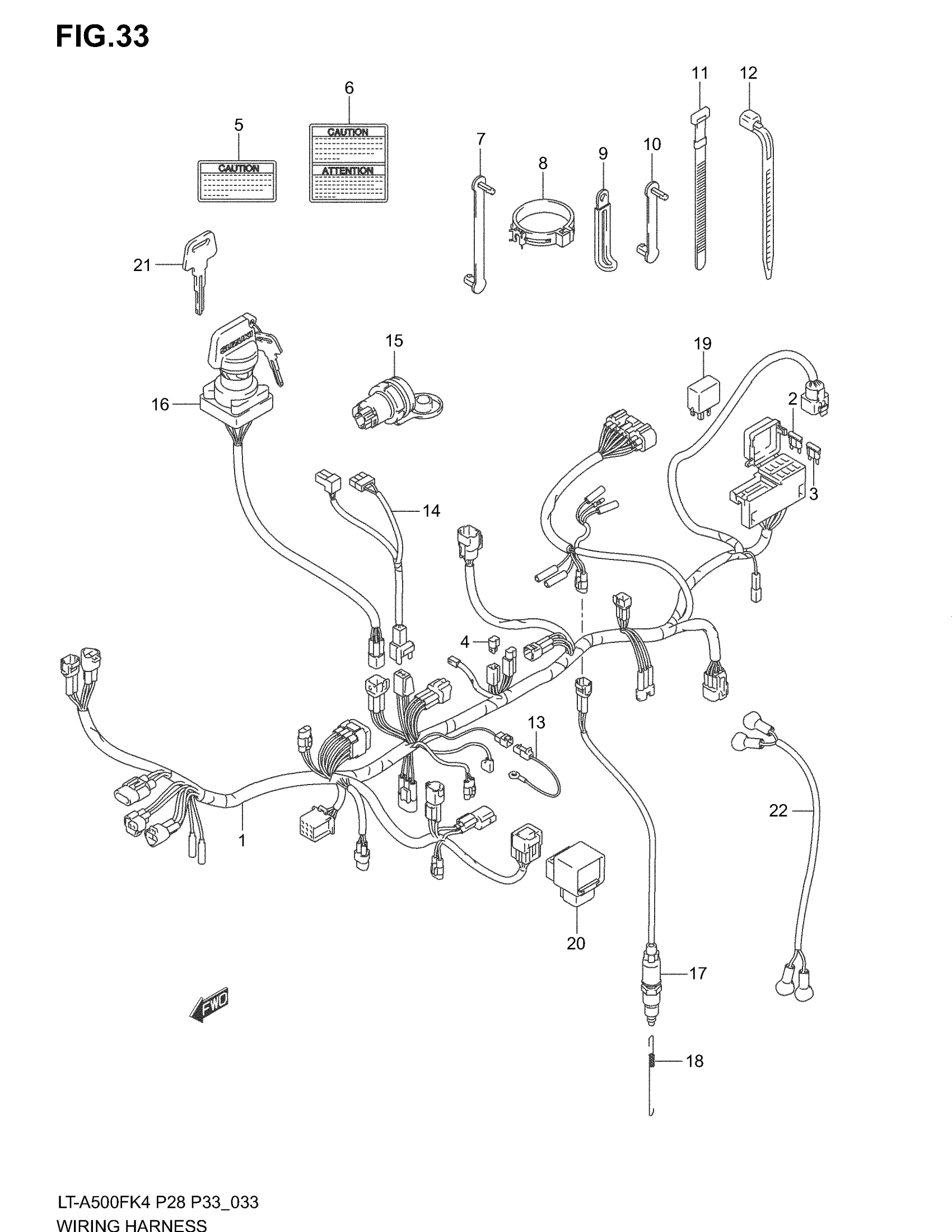

Suzuki LT-A500FB (2004) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS | Includes Item(s) 2 - 4

36610-03G51

Unavailable

2

FUSE (10A)

09481-10501

$2.06

3

FUSE (15A)

09481-15501

$2.02

4

DIODE

32800-16A00

$23.07

5

LABEL, CAUTION MAX AMP

38852-09F30

Unavailable

6

LABEL, CAUTION MAX AMP | E28

38852-03G10

Unavailable

7

CLAMP

36651-48E00

$3.25

8

CLAMP (ID:20)

09403-20403

$3.58

8

CLAMP (ID:25)

09403-25401

Unavailable

9

CLAMP (L:45)

09404-06429

$1.83

10

CLAMP

09407-03401

$3.07

11

CLAMP

09407-12402

$3.04

12

CLAMP (L:125)

09407-14403

$2.26

12

CLAMP (L:165)

09407-18402

$2.19

13

WIRE, IGNITION COIL

36851-05D00

$5.82

14

WIRE, FRONT BRAKE SWITCH LEAD

36857-03G00

$53.98

15

TERMINAL, POWER SOURCE | 12V/120W

38850-03G00

$75.08

16

SWITCH ASSY,IGN This part replaces 37110-03G00.

37110-03G01

$122.99

17

SWITCH ASSY,STOP LAMP This part replaces 37740-38F00.

37740-38F01

$115.27

18

SPRING

09443-06080

$4.73

19

RELAY,NEUTRAL START

38730-09F00

$46.55

20

RELAY ASSY, DRIVE

38750-03G00

$145.53

21

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

21

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07

21

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$8.07

21

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$8.07

22

WIRE, WINCH

33870-38F00

Unavailable
