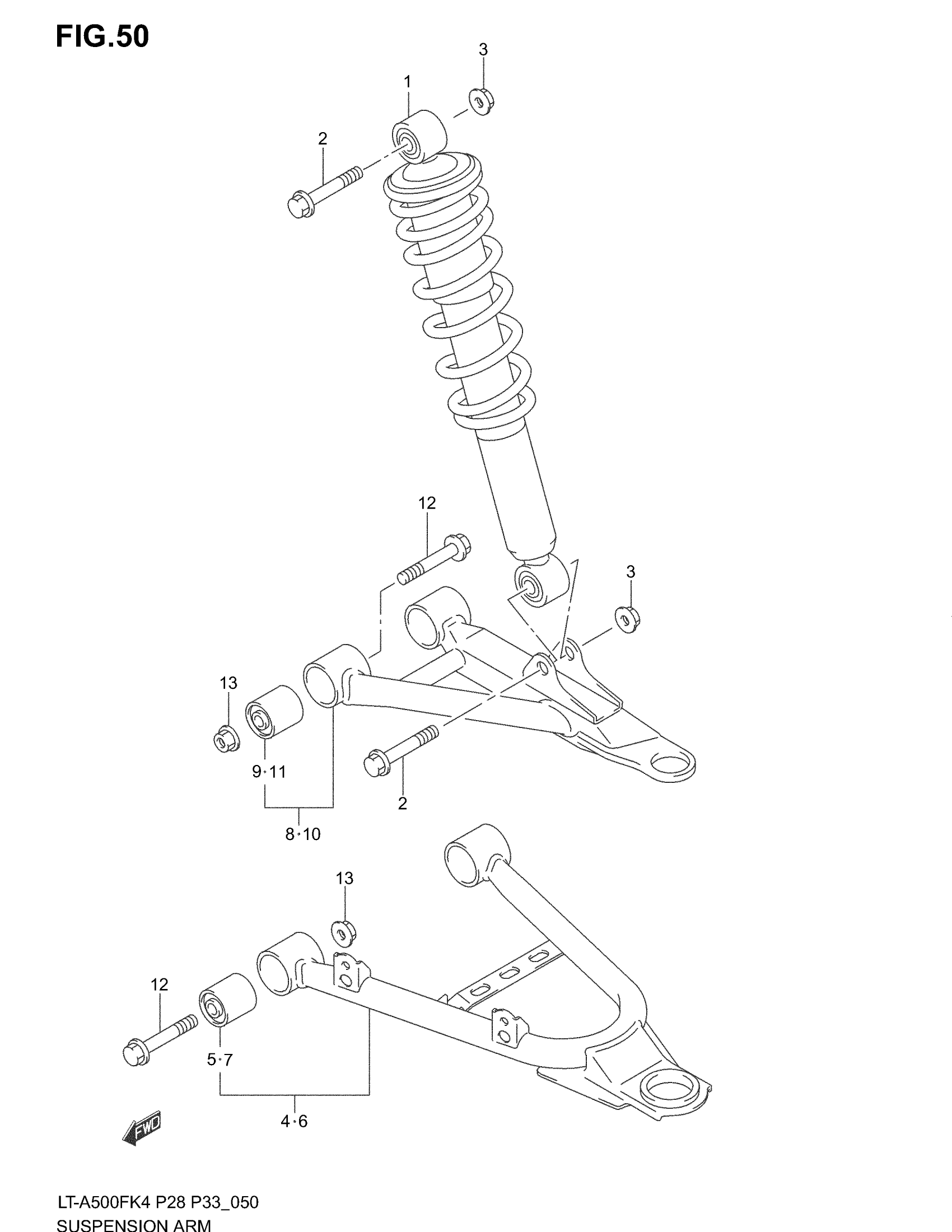

Suzuki LT-A500FB (2004) SUSPENSION ARM Diagram

#

Description
Price

1

ABSORBER ASSY, FRONT SHOCK (BLACK)

52100-03G50-019

Unavailable

2

BOLT (10X48)

09103-10126

$4.50

3

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

4

ARM SET, SUSPENSION LOWER RH | Includes Item(s) 5

52410-03830

Unavailable

5

BUSH (10X35.1X38)

09319-10055

$21.02

6

ARM SET, SUSPENSION LOWER LH | Includes Item(s) 7

52420-03830

Unavailable

7

BUSH (10X35.1X38)

09319-10055

$21.02

8

ARM SET, SUSPENSION UPPER RH | Includes Item(s) 9

52430-03830

Unavailable

9

BUSH (10X35.1X38)

09319-10055

$21.02

10

ARM SET, SUSPENSION UPPER LH | Includes Item(s) 11

52440-03830

$388.48

11

BUSH (10X35.1X38)

09319-10055

$21.02

12

BOLT (10X60)

09103-10301

$5.98

13

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55
