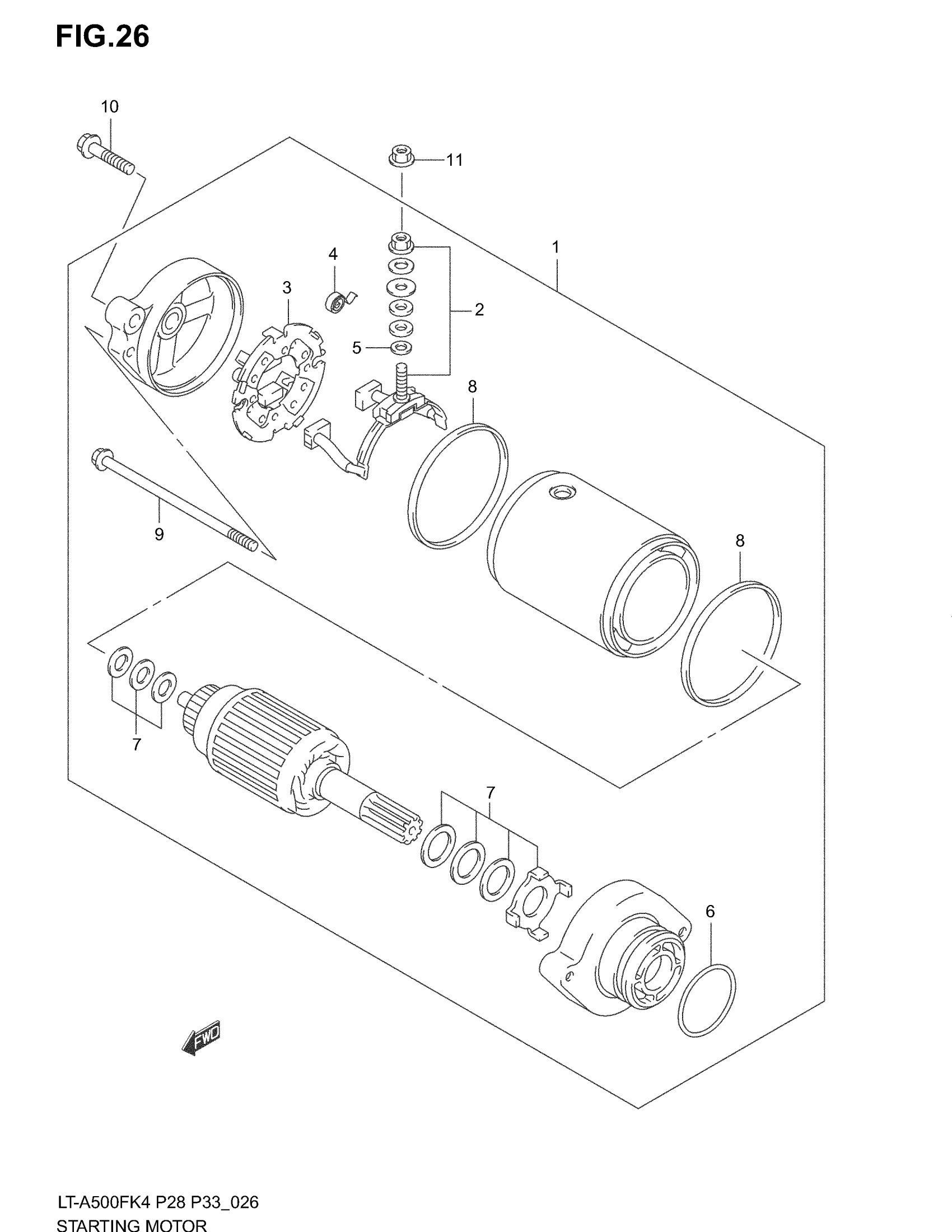

Suzuki LT-A500FB (2004) STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 9 This part replaces 31100-44D20.

31100-44D21

$604.78

2

TERMINAL SET, BRUSH

31130-38B00

$69.35

3

HOLDER SET, BRUSH

31132-38B00

$69.35

4

SPRING, BRUSH

31135-38B00

$5.40

5

O RING

31143-49040

$3.71

6

O RING

31156-48B00

$12.02

7

WASHER SET

31170-32E00

Unavailable

8

O RING This part replaces 31264-31300.

31264-32E00

$6.68

9

BOLT

31280-26D00

$20.45

10

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

11

NUT This part replaces 08361-35068.

08361-3506A

$1.80
