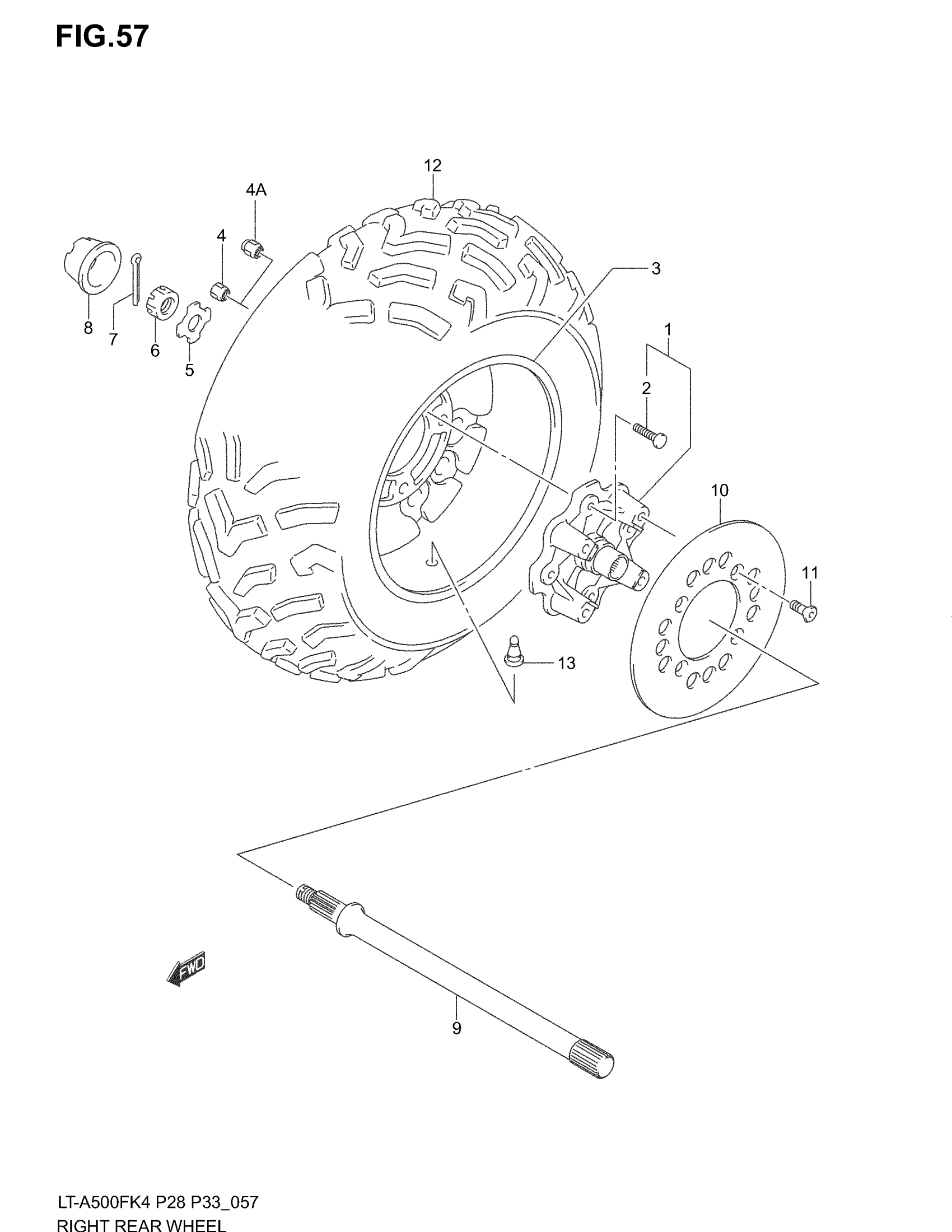

Suzuki LT-A500FB (2004) RIGHT REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL RH | Includes Item(s) 2

64110-38F10

$82.02

2

BOLT (10X30) This part replaces 09119-10049.

09119-10049-XC0

$2.26

3

RIM, REAR WHEEL (12X7.5AT) (SILVER) | FOR YT8,YT9,YU1,YDH

65311-03G00-12Z

Unavailable

3

RIM, REAR WHEEL (12X7.5AT) (SILVER) | FOR YFR

65311-03G10-12Z

Unavailable

4

NUT | FOR YT8,YT9,YU1,YDH

09140-10021

$2.03

4A

NUT | FOR YFR

09159-10012

$8.18

5

WASHER

64723-09F00

$13.35

6

NUT, HUB

09141-18010

$10.11

7

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

8

CAP,WHEEL CENTER

54725-09F01

$9.95

9

AXLE, REAR RH

64711-03G00

Unavailable

10

DISC, REAR BRAKE

69211-38F00

$273.07

11

BOLT

09106-08155

$3.76

12

TIRE,REAR This part replaces 65110-38F20.

65110-03G30

Unavailable

13

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85
