2004 Suzuki LT-A500FB Rear Swingingarm Diagram

← All diagrams

Find the part on the Rear Swingingarm diagram for your 2004 Suzuki LT-A500FB, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

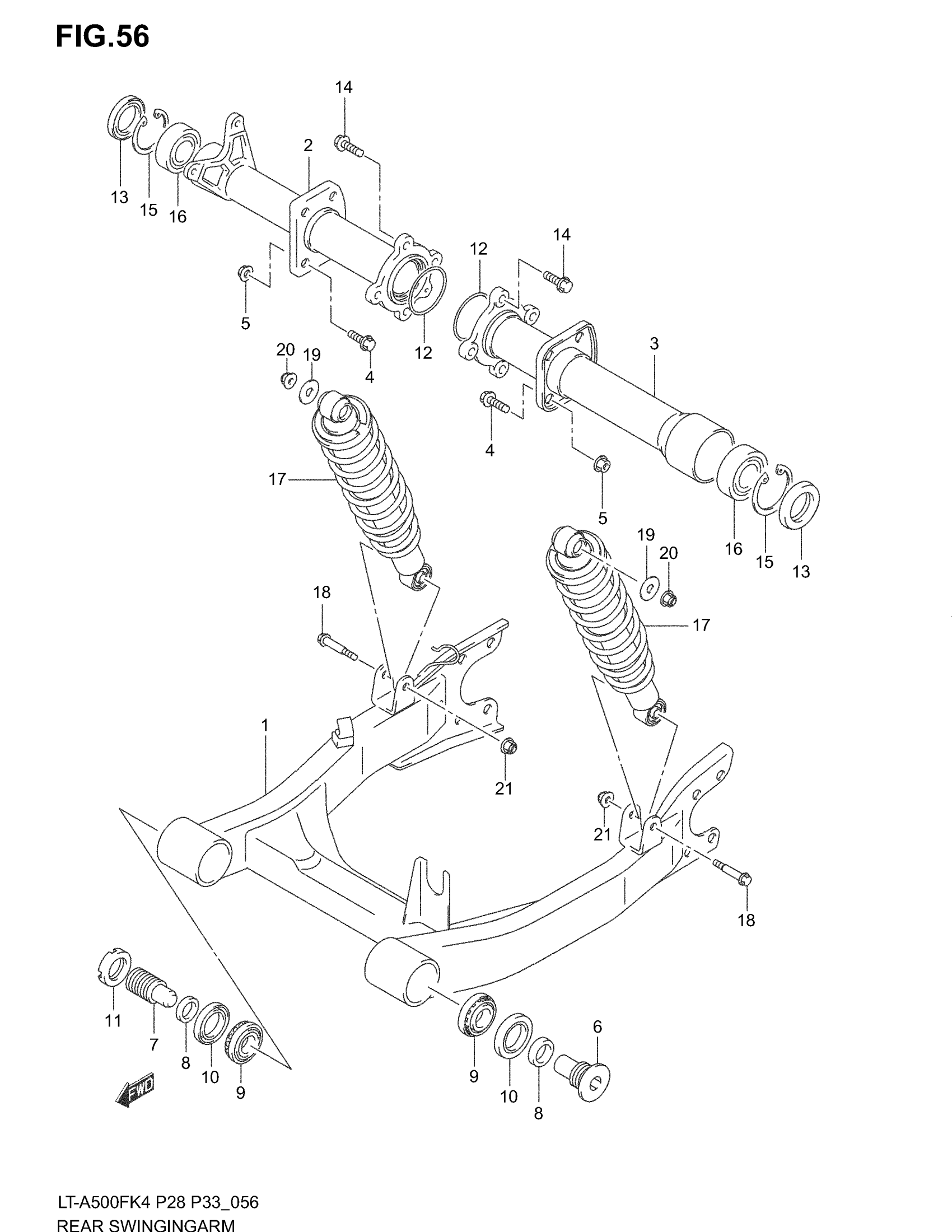

2004 Suzuki LT-A500FB Rear Swingingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGINGARM, REAR

61100-03G00

1
Out of stock

2

HOUSING, REAR AXLE R

61300-03G20

1
Out of stock

3

HOUSING, REAR AXLE L

61400-03G20

1
Out of stock

4

BOLT, REAR SWGARM BRACKET

09103-10216

8
Out of stock

5

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

8
Out of stock

6

BOLT, PIVOT L This part replaces 61213-03G00.

61213-03G20

1
Out of stock

7

BOLT, PIVOT R This part replaces 61213-03G10.

61213-03G30

1
Out of stock

8

SPACER, PIVOT

61251-03G00

2
Out of stock

9

BEARING, PIVOT

09265-17014

2
Out of stock

10

SEAL,OIL This part replaces 09285-25003.

09285-25007

2
Out of stock

11

NUT, PIVOT

61214-03G00

1
Out of stock

12

O RING, REAR AXLE HOUSING

09280-70005

2
Out of stock

13

SEAL, REAR AXLE HOUSING

09283-38022

2
Out of stock

14

BOLT, AXLE HOUSING

09103-10343

4
Out of stock

15

CLIP This part replaces 08331-41556.

08331-41559

2
Out of stock

16

BEARING, HUB

08123-60067

4
Out of stock

17

ABSORBER ASSY, REAR SHOCK (BLACK)

62100-03G50-019

2
Out of stock

18

BOLT

09103-10126

2
Out of stock

19

WASHER, UPPER OUTER

09160-10501

2
Out of stock

20

NUT This part replaces 08319-31103.

08319-3110A

2
Out of stock

21

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

2
Out of stock
← Left Rear Wheel Right Rear Wheel →
