Description

Price

1

TIE ROD, STEERING

51281-03G00

$36.12

2

KNUCKLE, STEERING RH

51231-03GG0

$146.63

3

KNUCKLE, STEERING LH

51241-03GG0

$144.58

4

END,KNUCKLE STEERING

51210-38F00

$64.70

5

ROD, END, R

51260-21G00

$65.40

6

ROD, END, L

51270-21G00

$88.25

7

NUT, TIE ROD (RH THREAD)

09140-10043

$2.92

8

NUT This part replaces 08314-40103.

08314-4010B

$2.58

9

NUT, TIE ROD (LH THREAD)

09140-10027

$1.54

10

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.25

11

WASHER, ROD END

09162-10008

$2.88

12

BOLT, KNUCKLE (10X30)

51233-09F00

$5.38

13

DUST SEAL, INNER (38X55X8)

09283-38012

$13.70

14

DUST SEAL, OUTER (38X55X6.4)

09283-38022

$12.10

15

BEARING

08123-60067

$27.08

16

SPACER,HUB BEARING

54731-03G00

$11.13

17

CIRCLIP This part replaces 08331-31306.

08331-31309

$2.68

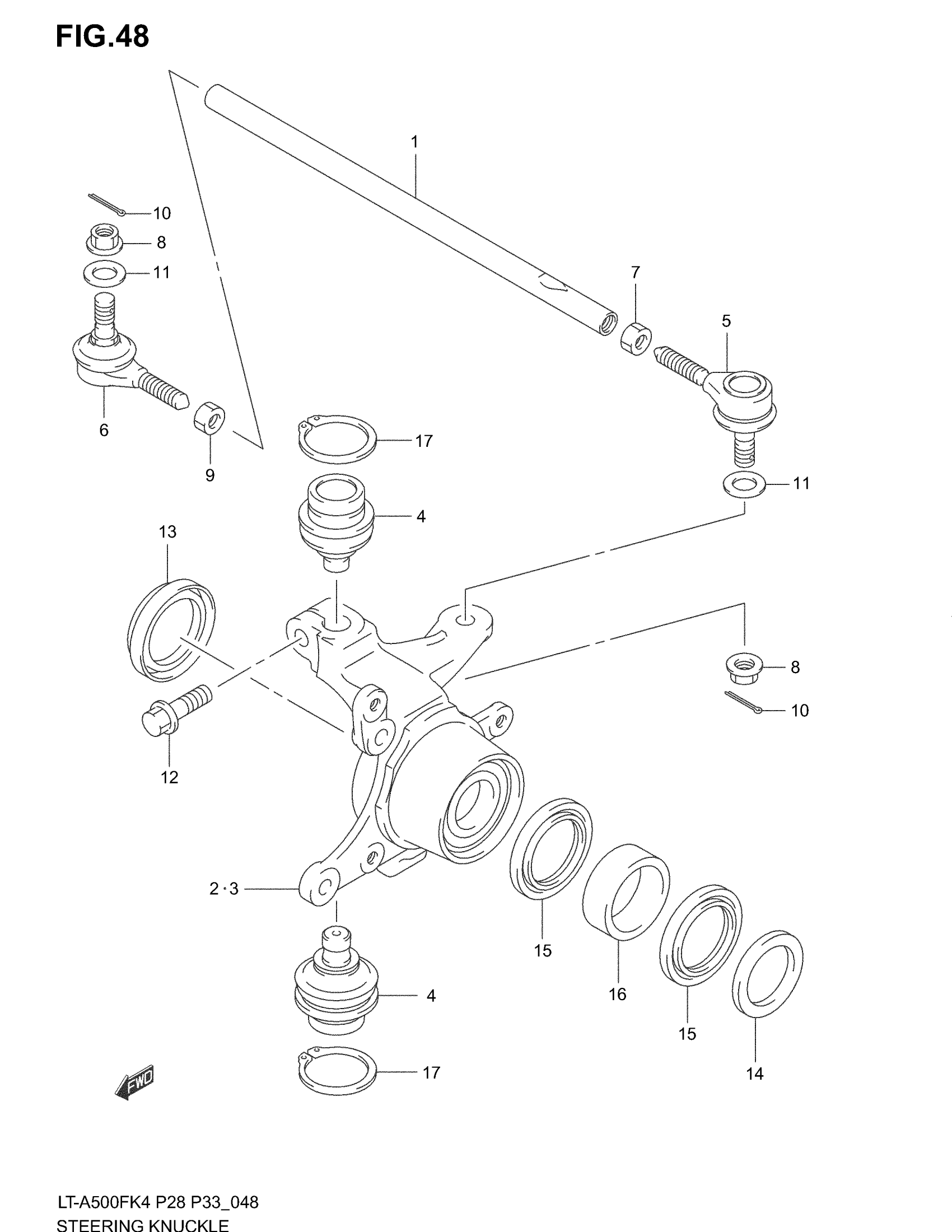

Suzuki LT-A500FB (2004) STEERING KNUCKLE Diagram
