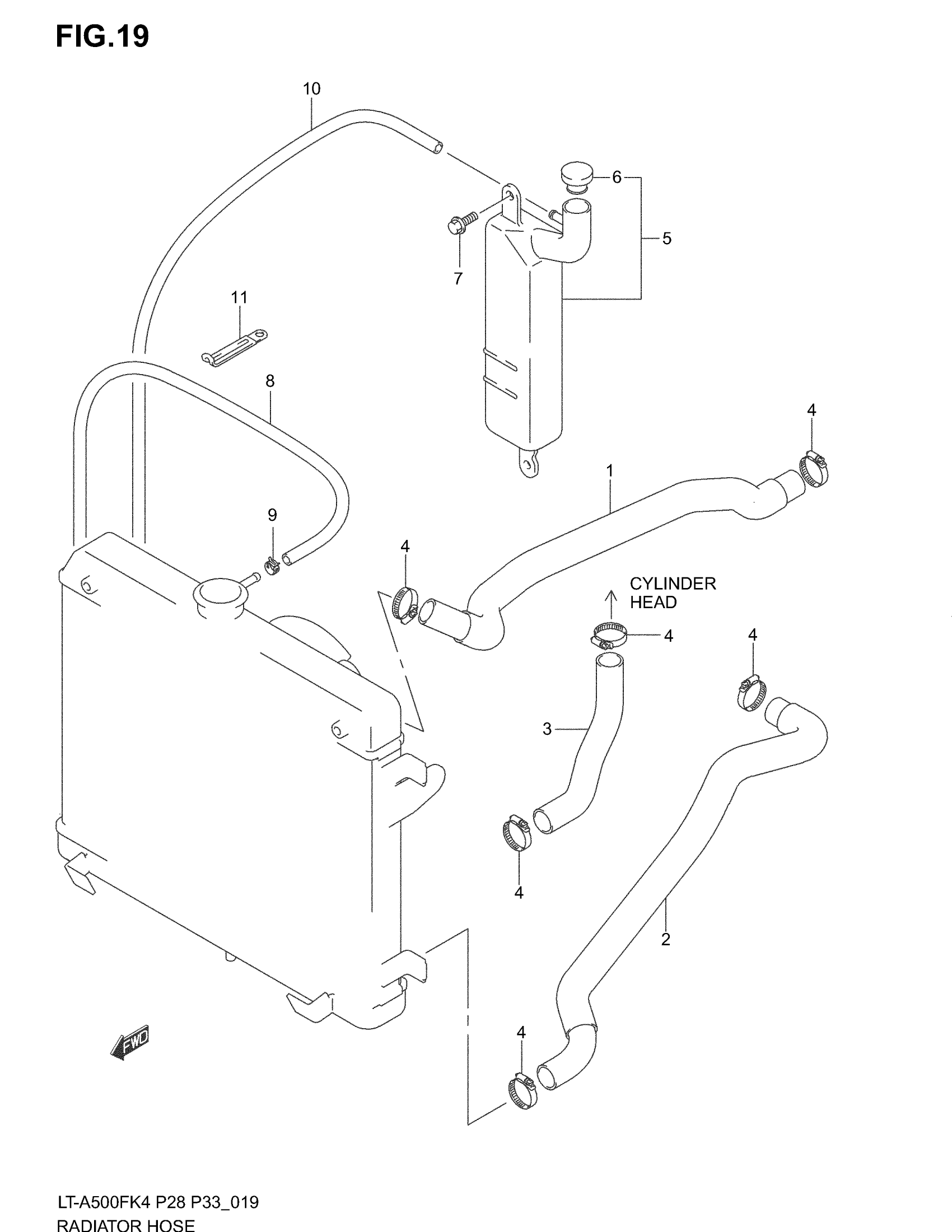

Suzuki LT-A500FB (2004) RADIATOR HOSE Diagram

#

Description

Price

1

HOSE, RADIATOR INLET

17851-03G00

$63.30

2

HOSE, RADIATOR OUTLET

17852-03G00

Unavailable

3

HOSE, WATER PUMP OUTLET

17854-03G00

$24.37

4

CLAMP

09402-32511

$10.86

5

TANK ASSY, RESERVOIR | Includes Item(s) 6

17910-03G00

$70.18

6

CAP, RESERVOIR TANK

17932-12C00

$4.48

7

SCREW

09116-06168

$2.50

8

HOSE SET, RESERVOIR TANK INLE This part replaces 17981-42E00.

17900-27810

$22.00

9

CLIP

09401-08411

$1.78

10

HOSE, OVERFLOW | L:600!440

09352-50901-600

$8.06

11

CLAMP This part replaces 09404-06432.

09404-06039

$1.74
