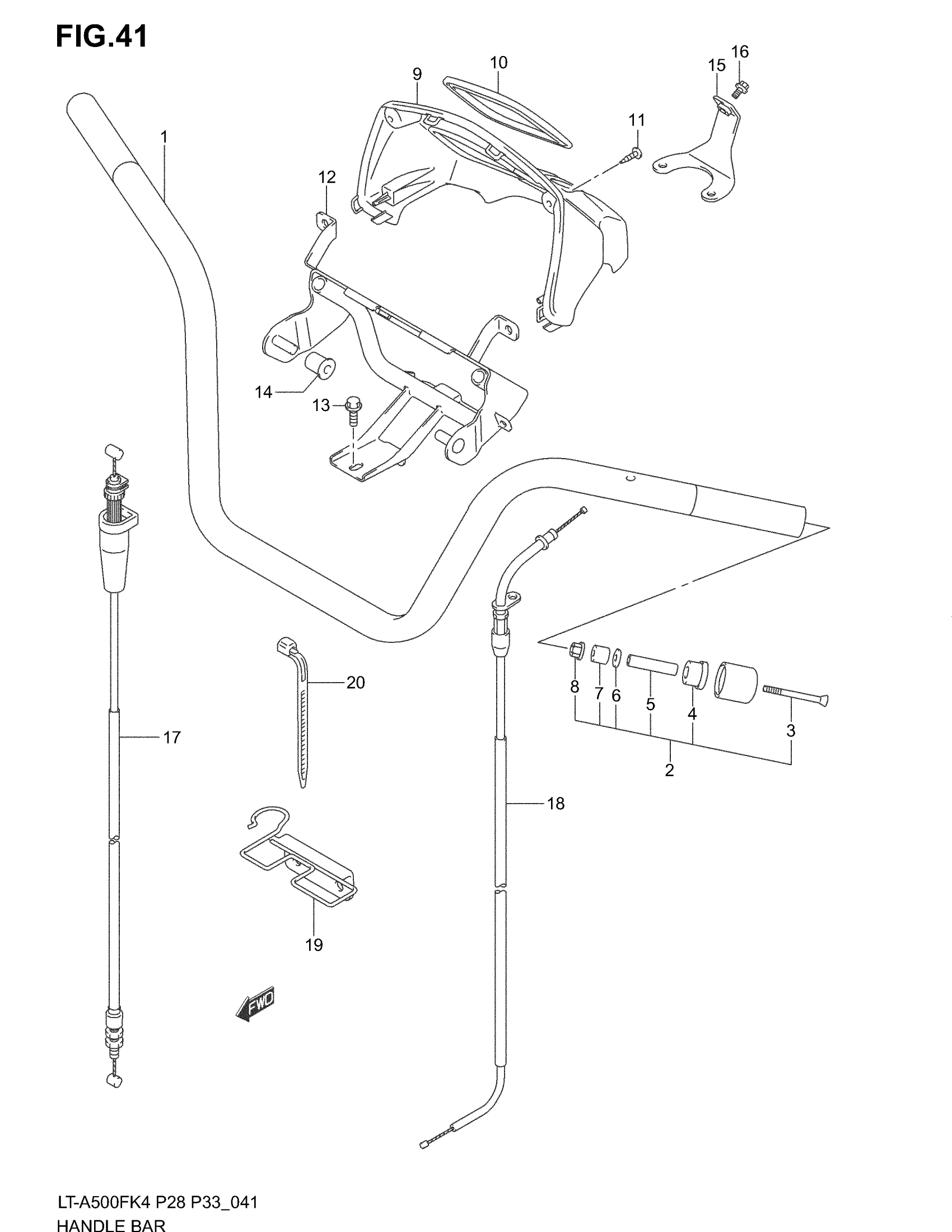

Suzuki LT-A500FB (2004) HANDLE BAR Diagram

#

Description
Price

1

HANDLE BAR

56111-03G10

$67.85

2

BALANCER SET | Includes Item(s) 3 - 8

56200-07840

$101.67

3

SCREW

09127-06018

$3.38

4

EXPANDER, OUTER

56272-10D00

Unavailable

5

SPACER

56276-17D00

$5.07

6

WASHER (6.5X14X2.0)

09160-06126

$1.91

7

.EXPANDER,HANDLE BALANCER

56272-42F00

$5.45

8

NUT

09159-06024

$2.11

9

COVER, HANDLE REAR (BLACK)

56321-03G00-291

Unavailable

10

MOLDING

56317-03G00

$52.85

11

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

12

BRACE, COVER

56160-03G00

$154.60

13

BOLT This part replaces 01550-08203.

01550-0820A

$2.23

14

CUSHION This part replaces 09320-07010.

09320-07019

$3.63

15

BRACKET, METER COVER

56190-03G00

Unavailable

16

BOLT This part replaces 09103-05018.

09103-05017

$2.86

17

CABLE ASSY, THROTTLE

58300-03G10

Unavailable

18

CABLE, STARTER

58410-03G01

$35.45

19

GUIDE, CABLE

58620-03G00

Unavailable

20

CLAMP

09403-10405

$3.15
