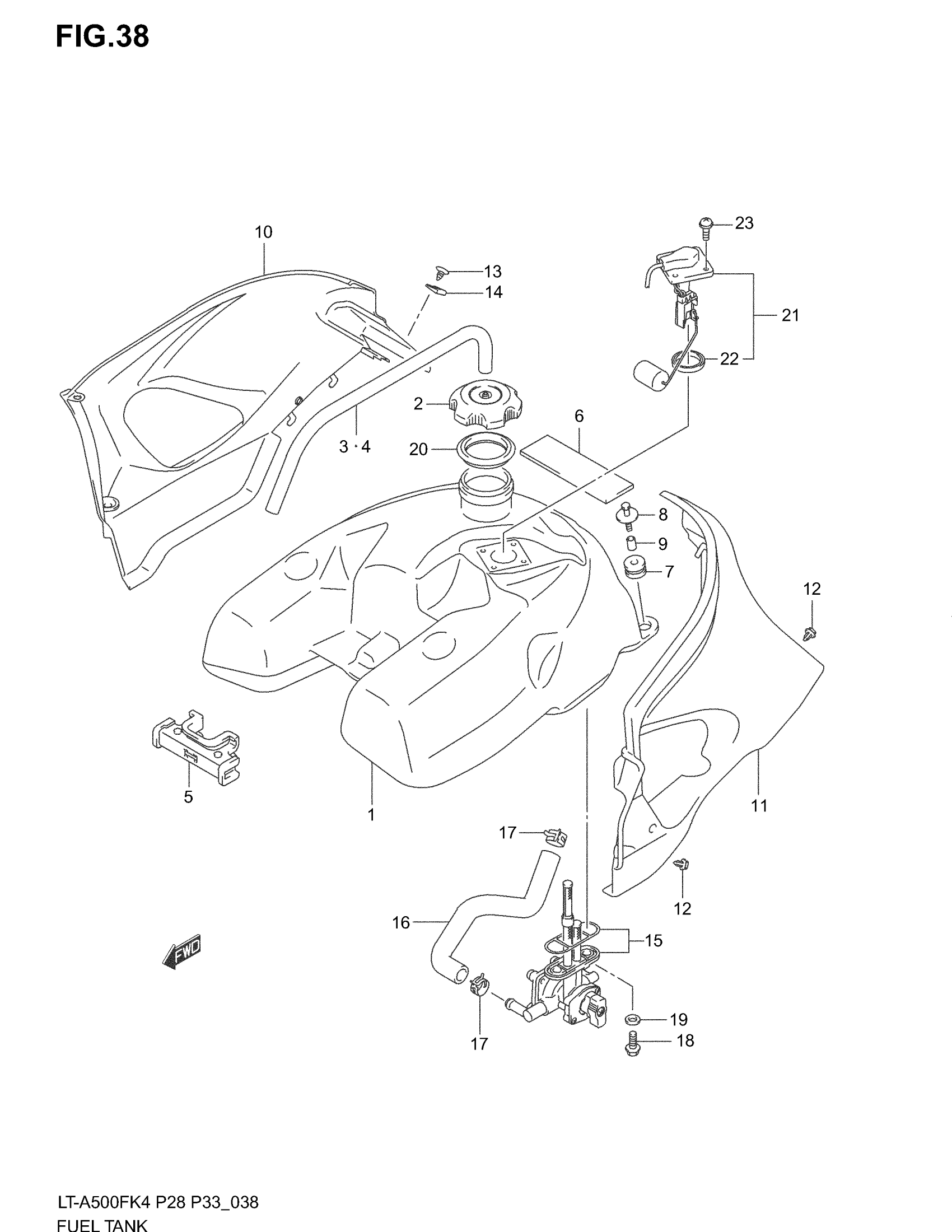

Suzuki LT-A500FB (2004) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL

44100-03G10

Unavailable

2

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

$38.33

3

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

4

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

5

CUSHION,FUEL TA This part replaces 44511-03G00.

44511-03G01

$20.92

6

CUSHION

47451-38A01

$4.43

7

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

$5.78

8

BOLT

09116-06050

$2.26

9

SPACER

09180-06293

$2.58

10

COVER, TANK RH (BLACK)

44271-03G03-291

Unavailable

11

COVER, TANK LH (BLACK)

44272-03G02-291

Unavailable

12

CLIP

09409-07333

$2.31

13

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

$1.97

14

NUT

09148-05038

$1.97

15

COCK ASSY,FUEL This part replaces 44300-03G02.

44300-03G03

$92.88

16

HOSE, FUEL

44421-03G01

$20.35

17

CLIP This part replaces 09401-11407.

09401-11415

$2.23

18

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

19

GASKET

09168-06026

$3.10

20

RUBBER, INLET

44261-38F00

$13.35

21

GAUGE ASSY, FUEL LEVEL | Includes Item(s) 22

34810-03G00

$66.46

22

.PACKING,FUEL LEVEL GAUGE This part replaces 34825-03A00.

34825-03A01

$8.07

23

SCREW This part replaces 02112-76163.

02112-7616A

$2.12
