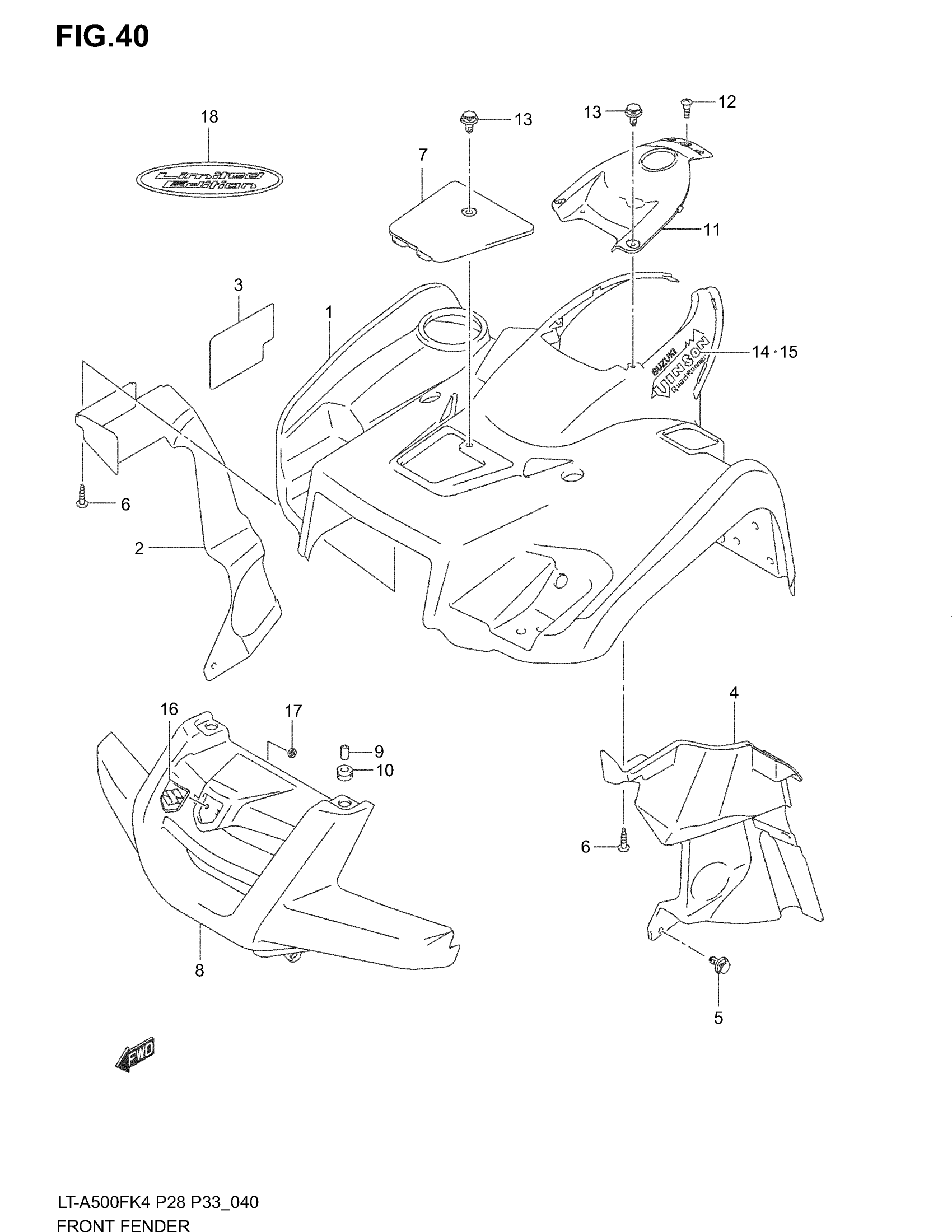

Suzuki LT-A500FB (2004) FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT This part replaces 53111-03G20-YT9.

53111-03G21-YT9

Unavailable

1

FENDER,FRONT This part replaces 53111-03G20-YU1.

53111-03G21-YU1

Unavailable

1

FENDER, FRONT This part replaces 53111-03G20-YT8.

53111-03G11-YT8

$561.13

1

FENDER, FRONT This part replaces 53111-03G20-YFR.

53111-03G21-YLZ

$366.63

1

FENDER,FRT(CAMO This part replaces 53111-03GC0-YDH.

53111-03GC1-YDH

Unavailable

2

MUDFLAP, INNER RH | Includes Item(s) 3

53410-03G02

Unavailable

3

SHIELD

63268-09F00

$26.28

4

MUDFLAP, INNER LH

53421-03G00

$40.88

5

CLIP

09409-08335

$2.47

6

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

$1.97

7

LID (YELLOW)

53341-03G01-YU1

Unavailable

7

LID (GREEN)

53341-03G01-YT8

Unavailable

7

LID (RED)

53341-03G01-YT9

Unavailable

7

LID (BLACK) This part replaces 53341-03G01-YFR.

53341-03G01-YLZ

Unavailable

7

LID (RED)

53341-03GC0-YDH

Unavailable

8

GRILLE, FRONT (BLACK)

53118-03G00-291

Unavailable

9

SPACER

09180-08188

$2.56

10

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.91

11

FENDER, CENTER (YELLOW)

53119-03G10-YU1

Unavailable

11

FENDER, CENTER (GREEN)

53119-03G10-YT8

Unavailable

11

FENDER, CENTER (RED)

53119-03G10-YT9

Unavailable

11

FENDER, CENTER (BLACK) This part replaces 53119-03G10-YFR.

53119-03G10-YLZ

Unavailable

11

FENDER, CENTER

53119-03GC0-YDH

Unavailable

12

SCREW

09139-05076

Unavailable

13

CLIP

09409-07333

$2.31

14

EMBLEM, RH | FOR YT9,YU1,YT8

68151-03G10-MV6

Unavailable

14

EMBLEM, RH | FOR YFR

68151-03G10-AMC

Unavailable

14

EMBLEM, RH | FOR YDH

68151-03GA0-MV6

Unavailable

15

EMBLEM, LH | FOR YT9,YU1,YT8

68152-03G10-MV6

Unavailable

15

EMBLEM, LH | FOR YFR

68152-03G10-AMC

Unavailable

15

EMBLEM, LH | FOR YDH

68152-03GA0-MV6

Unavailable

16

EMBLEM, FRONT

68151-38F00

$35.72

17

NUT This part replaces 09148-05006.

09148-05012

$1.75

18

EMBLEM, LIMITED | FOR YFR

68151-03G20-CN5

Unavailable
