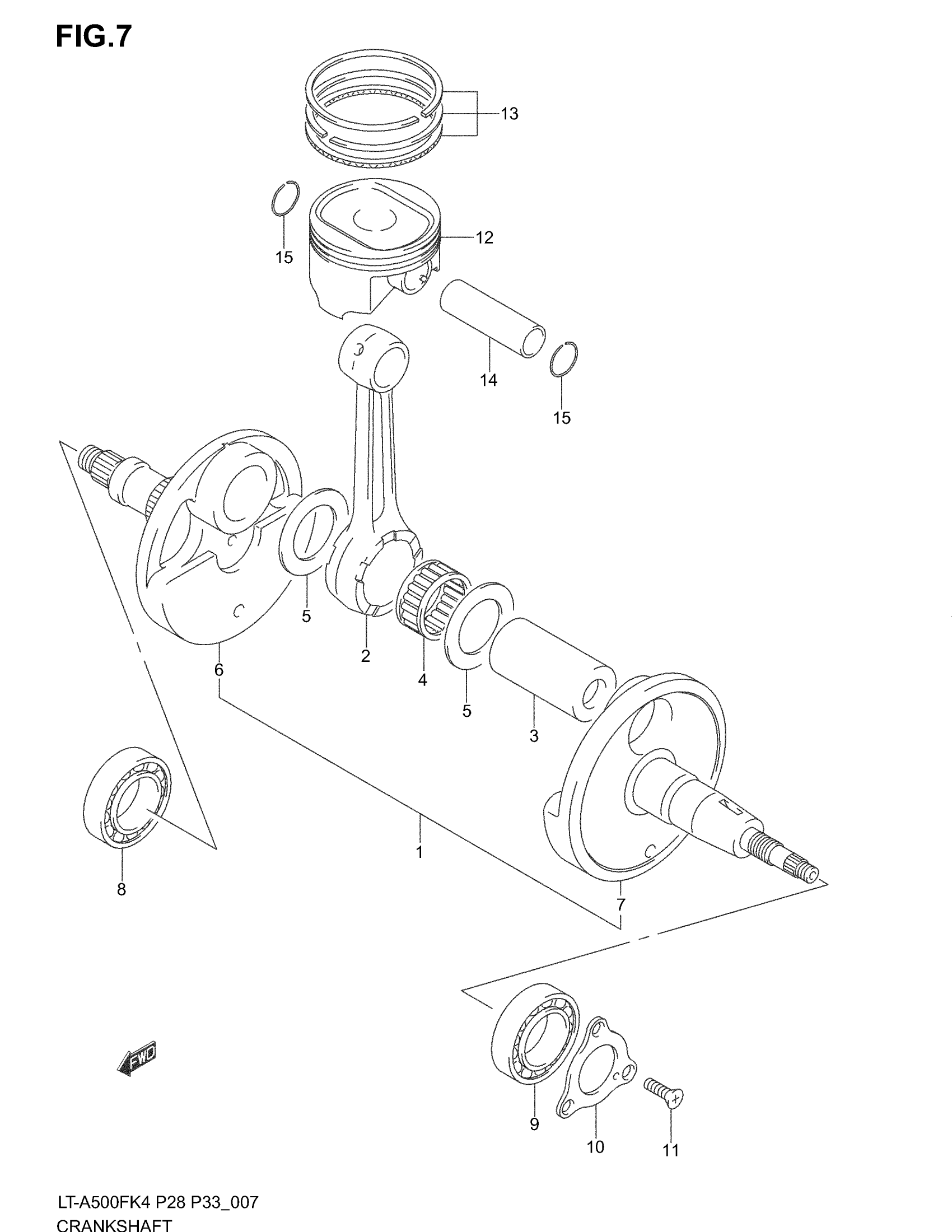

Suzuki LT-A500FB (2004) CRANKSHAFT Diagram

CRANKSHAFT SET | Includes Item(s) 2 - 7 This part replaces 12000-03860.

12000-03861

Unavailable

ROD, CONNECTING

12161-32E00

$157.58

PIN, CRANK

12210-24B01-0A0

$68.60

BEARING (37X47X24.8)

09263-37007

$99.39

WASHER (37X55X1)

09160-37006

$10.58

CRANKSHAFT SET, RH This part replaces 12220-03860.

12220-03861

Unavailable

CRANKSHAFT, LH

12261-03G00

Unavailable

BEARING, RH (40X80X18)

09262-40008

$68.27

BEARING, LH (35X80X21)

09262-35009

$87.52

RETAINER, OIL SEAL LH

12541-46510

$8.77

SCREW (6X12)

09126-06011

$2.03

PISTON

12111-03G00-0F0

$96.21

RING SET, PISTON

12140-03G00

$53.86

PIN

12151-09F00

$24.60

CIRCLIP

09381-23003

$1.49
