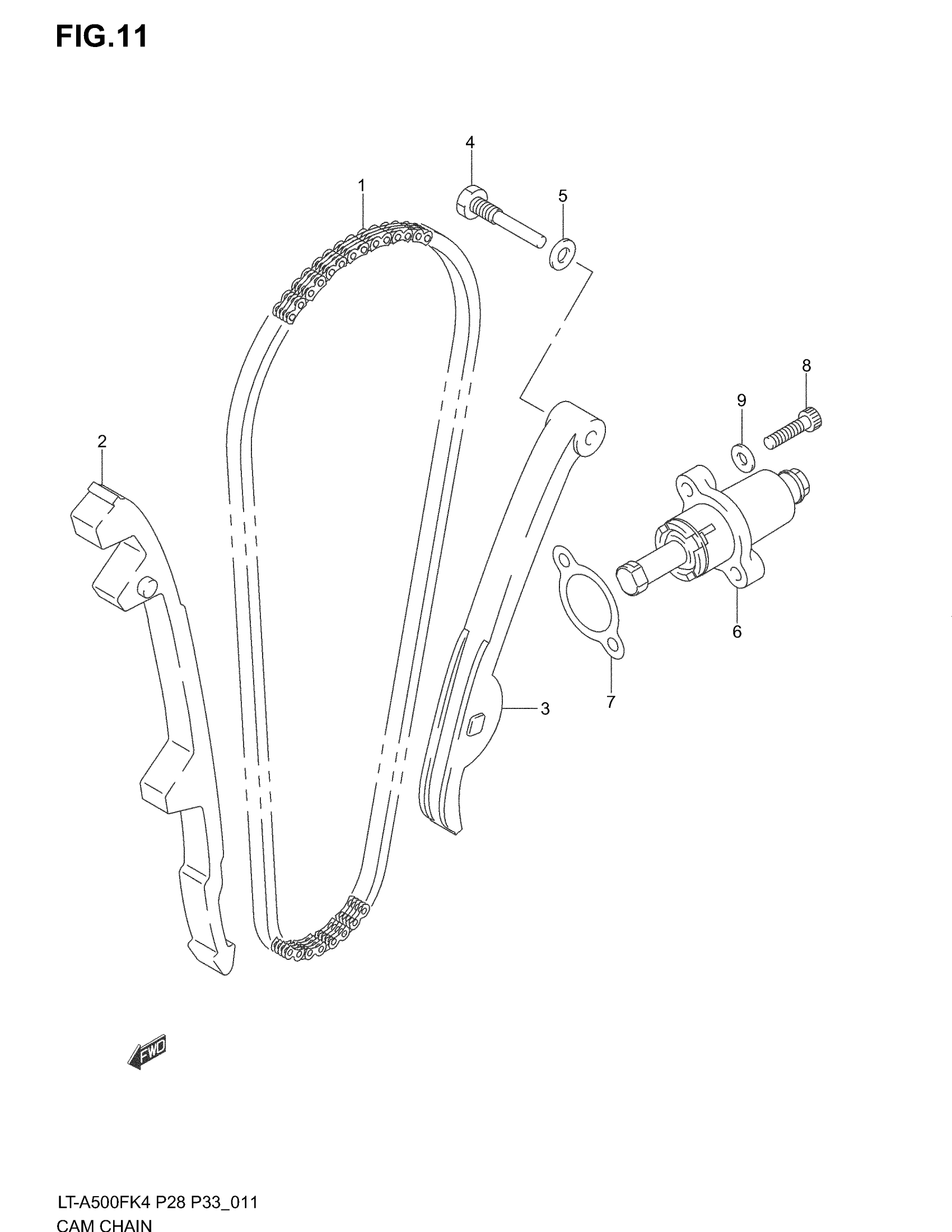

Suzuki LT-A500FB (2004) CAM CHAIN Diagram

#

Description

Price

1

CHAIN, CAM (120LE)

12760-09F00

$172.70

2

GUIDE,CAM CHAIN This part replaces 12771-09F00.

12771-09F01

$77.35

3

TENSIONER, CAM CHAIN This part replaces 12811-09F00.

12811-09F01

$67.73

4

BOLT

12812-32410

$4.52

5

GASKET (8.2X14X1)

09168-08016

$1.65

6

ADJUSTER ASSY, TENSIONER

12830-32E00

$113.78

7

.GASKET,TENSIONER ADJUSTER

12837-24A10

$3.25

8

BOLT This part replaces 07130-06253.

07130-0625B

$3.04

9

GASKET

09168-06023

$2.35
