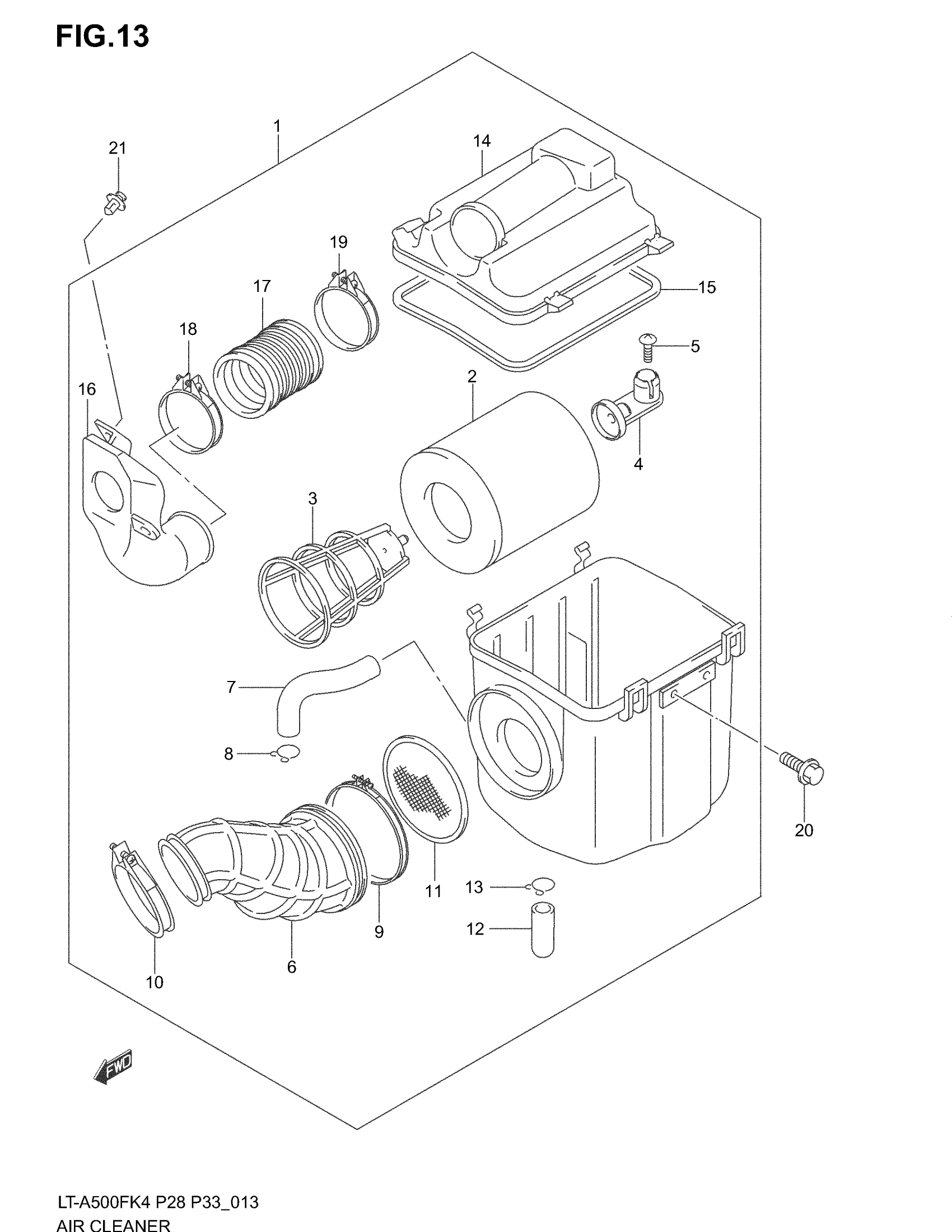

Suzuki LT-A500FB (2004) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 19

13700-03G10

$167.45

2

FILTER

13780-07G00

$32.07

3

HOLDER

13791-03G00

$8.73

4

STOPPER, HOLDER

13792-03G00

$7.19

5

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

6

TUBE, OUTLET

13881-03G00

$51.98

7

TUBE, BREATHER

13853-03G10

Unavailable

8

CLIP

09401-14301

$2.35

9

CLAMP (CLEANER SIDE)

13826-38F10

$14.17

10

CLAMP (CARBURETOR SIDE)

13826-38F20

$9.46

11

.TRAP, FLAME

13810-03G00

$11.87

12

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

$5.48

13

CLIP

09401-14301

$2.35

14

CAP, AIR CLEANER

13741-38F10

Unavailable

15

GASKET

13746-03G00

$4.72

16

DUCT,INLET This part replaces 13896-03G00.

13896-03G01

$36.84

17

..JOINT,INLET This part replaces 13891-03G00.

13891-03G01

$13.43

18

CLAMP

13826-38F20

$9.46

19

..CLAMP

09402-60208

$5.11

20

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

21

CLIP

09409-07333

$2.31
