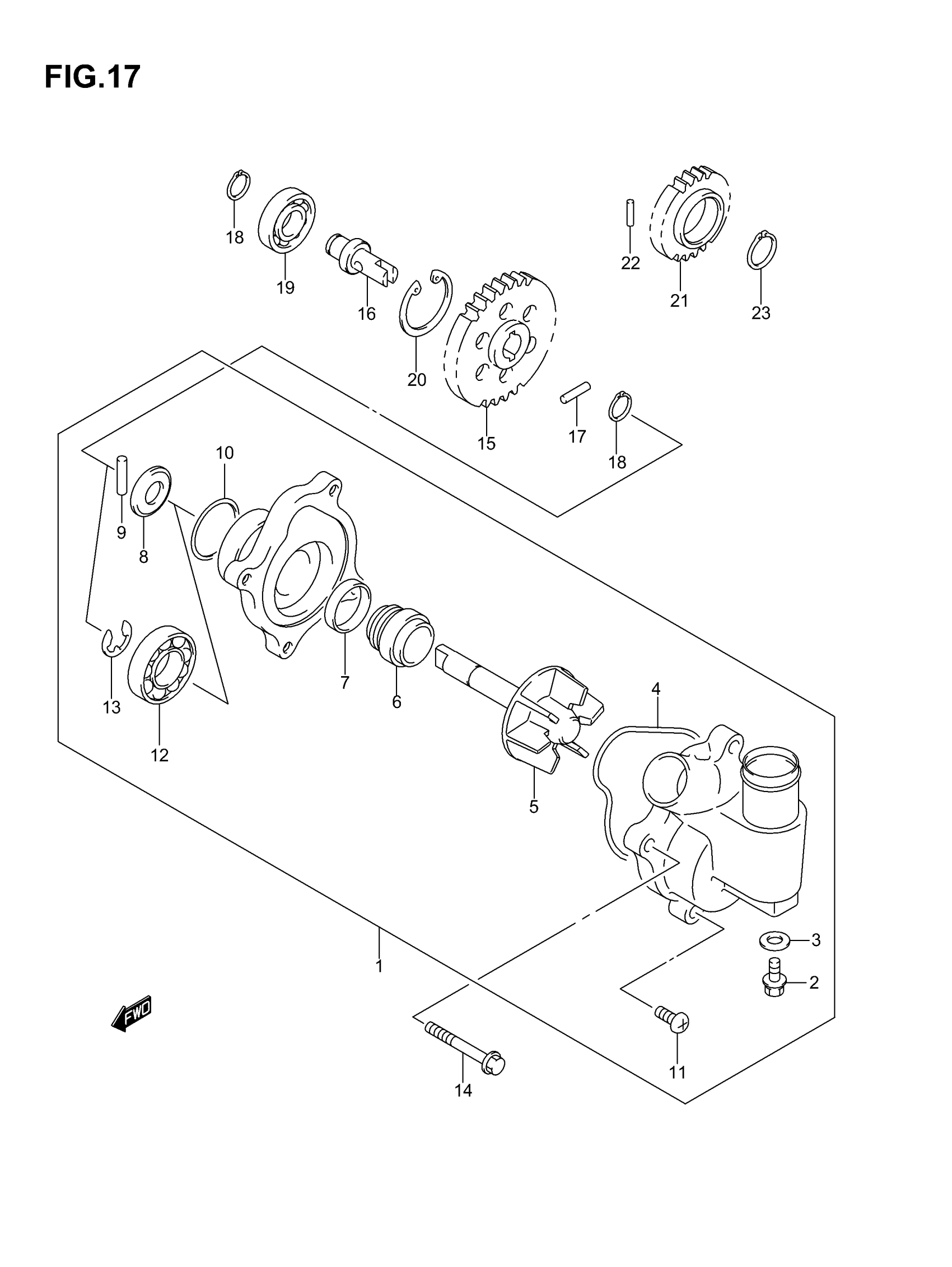

Suzuki LT-A500F (2007) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY, WATER | MODEL K4/K5 This part replaces 17400-03G00.

17400-09F50

$299.90

1

PUMP ASSY, WATER | MODEL K6/K7; Includes Item(s) 2 - 13

17400-09F50

$299.90

2

BOLT

17415-14300

$2.99

3

GASKET (8.2X14X1)

09168-08016

$1.65

4

O RING

17418-09F50

$9.72

5

IMPELLER/SHAFT | MODEL K4/K5

17491-03G00

$56.45

5

IMPELLER/SHAFT | MODEL K6/K7

17491-09F50

$56.45

6

.SEAL,MECHANICAL This part replaces 17470-02F00.

17470-02F11

$29.22

7

.SEAL OIL (10X21X5)

09283-10004

$4.96

8

WASHER | MODEL K4/K5

17481-03G00

Unavailable

9

PIN | MODEL K4/K5

17482-03G00

$2.63

10

.O-RING

17435-33400

$15.29

11

SCREW This part replaces 02112-06163.

02112-0616A

$1.49

12

BEARING | MODEL K6/K7

09262-10014

$16.01

13

.E-RING | MODEL K6/K7 This part replaces 08332-11086.

08332-1108A

$1.78

14

BOLT This part replaces 01547-06653.

01547-0665B

$3.18

15

GEAR, DRIVEN

16331-02F00

$69.38

16

SHAFT, DRIVEN GEAR

17521-09F50

Unavailable

17

PIN, DRIVEN GEAR

09261-04009

$1.56

18

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.78

19

BEARING, SHAFT

08110-62000

$14.53

20

CIRCLIP, SHAFT BEARING

08331-41309

$2.83

21

GEAR, WATER PUMP DRIVE

16321-44D01

Unavailable

22

PIN, DRIVE GEAR

04221-04069

$2.12

23

CIRCLIP This part replaces 08331-31226.

08331-31229

$2.48
