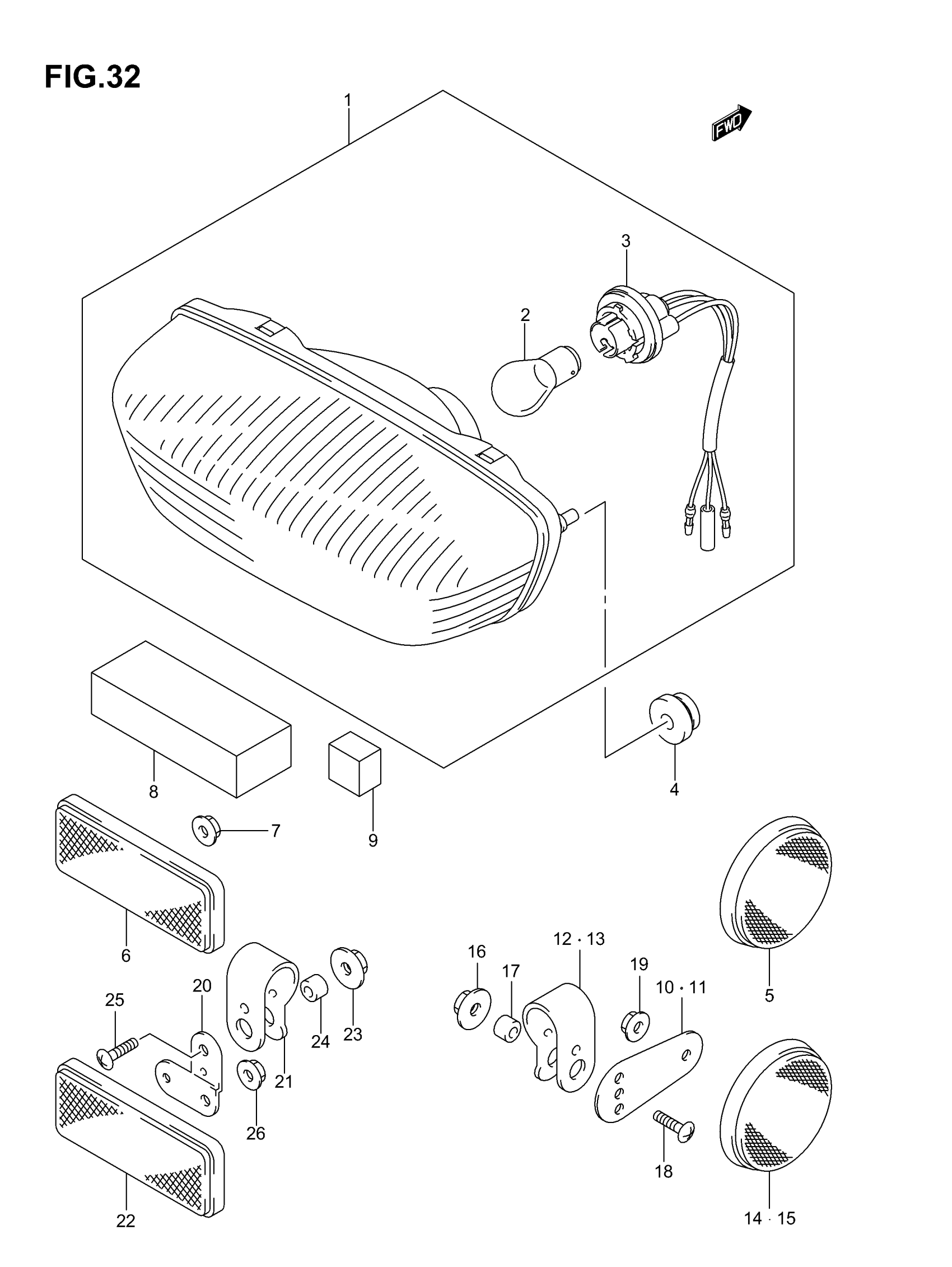

Suzuki LT-A500F (2007) TAIL LAMP Diagram

#

Description
Price

1

LAMP ASSY, TAIL | Includes Item(s) 2 - 3

35710-03G20

$63.25

2

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

3

SOCKET & CORD ASSY

35718-03G00

$35.23

4

CUSHION

09320-06023

$2.90

5

REFLECTOR ASSY, REAR SIDE | MODEL K4/K5/K6 E28

35970-14A10

$18.80

6

REFLECTOR ASSY, RR SIDE | MODEL K4/K5/K6 E28 This part replaces 35970-07F00.

35970-07F01

$20.88

7

NUT | MODEL K4/K5/K6 E28 This part replaces 08316-10053.

08316-1005A

$2.19

8

CUSHION (80X30X20)

33652-03G10

Unavailable

9

CUSHION (17X17X12)

33652-05G20

$2.53

10

PLATE, RR SIDE, R | MODEL K7 E28

35643-03G10

Unavailable

11

PLATE, RR SIDE, L | MODEL K7 E28

35643-03G10

Unavailable

12

BRACKET, REFLEX REFLECTOR, R | MODEL K7 E28

35656-03G10

Unavailable

13

BRACKET, REFLEX REFLECTOR, L | MODEL K7 E28

35656-03G10

Unavailable

14

REFLECTOR ASSY, RR R | MODEL K7 E28

35970-14A10

$18.80

15

REFLECTOR ASSY, RR L | MODEL K7 E28

35970-14A10

$18.80

16

NUT | MODEL K7 E28 This part replaces 09159-05044.

09159-05049

$2.30

17

SPACER (5.5X9.5X6.5) | MODEL K7 E28

09180-05053

Unavailable

18

SCREW | MODEL K7 E28

02142-0516A

$1.49

19

NUT | MODEL K7 E28

08316-1005A

$2.19

20

BRACKET, REAR, RR | MODEL K7 E28

35643-03G00

Unavailable

21

BRACKET, REAR, RR | MODEL K7 E28

35656-03G10

Unavailable

22

REFLECTOR ASSY, RR SIDE | MODEL K7 E28 This part replaces 35970-07F00.

35970-07F01

$20.88

23

NUT | MODEL K7 E28 This part replaces 09159-05044.

09159-05049

$2.30

24

SPACER (5.5X9.5X6.5) | MODEL K7 E28

09180-05053

Unavailable

25

SCREW | MODEL K7 E28

02142-0516A

$1.49

26

NUT | MODEL K7 E28

08316-1005A

$2.19
