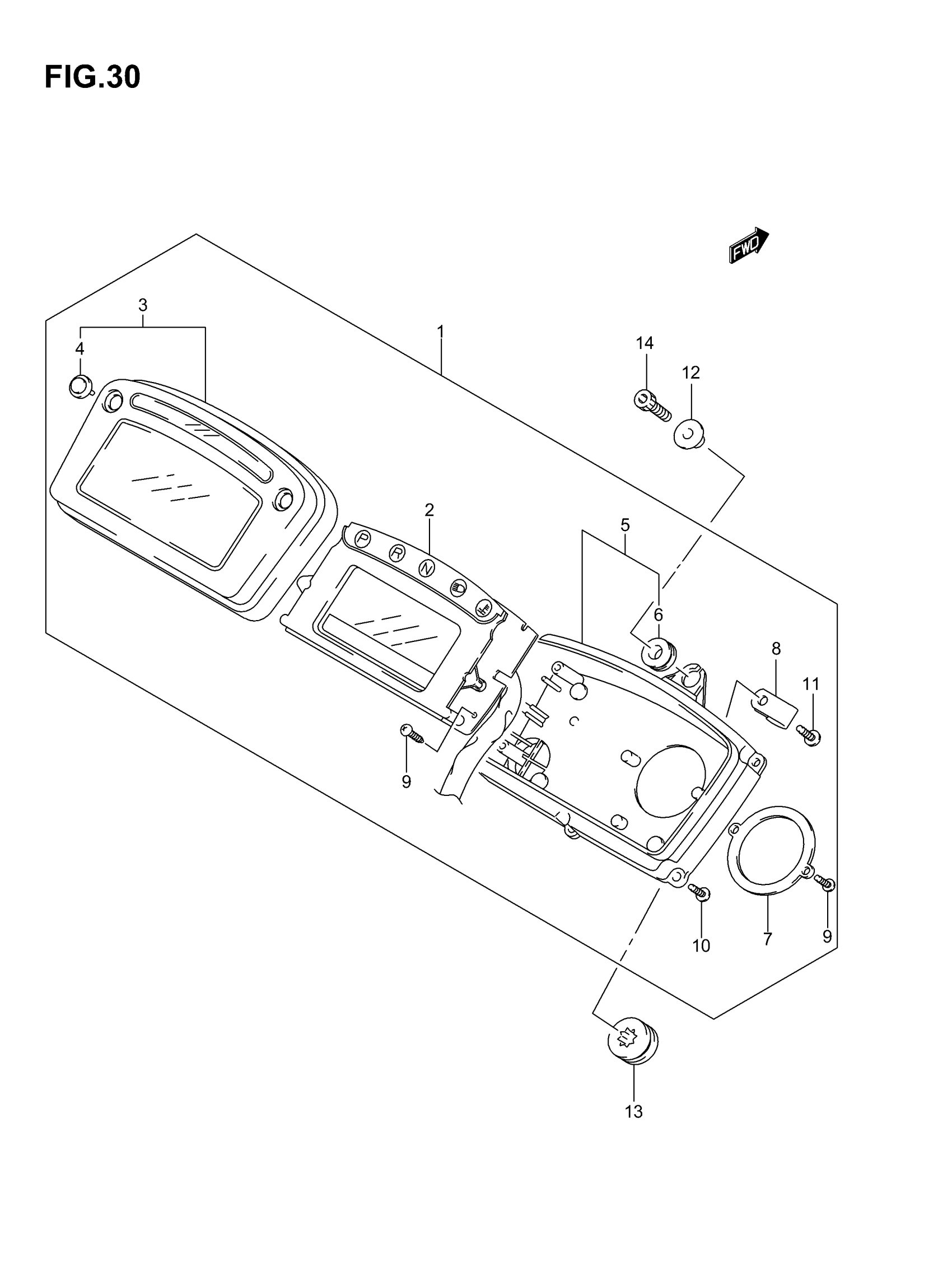

Suzuki LT-A500F (2007) SPEEDOMETER (MODEL K4/K5) Diagram

#

Description
Price

1

SPEEDOMETER ASSY

34100-03G60

Unavailable

1

SPEEDOMETER ASSY | E28; Includes Item(s) 2 - 11

34100-03G70

Unavailable

2

SPEEDOMETER

34120-03G60

Unavailable

2

SPEEDOMETER | E28

34120-03G70

Unavailable

3

CASE, UPPER This part replaces 34150-03G00.

34150-31G00

$98.18

4

SWITCH RUBBER

34124-24F00

$8.83

5

CASE, LOWER

34111-03G60

$53.58

6

DAMPER

34955-33E00

$3.56

7

BRACKET

34128-03G00

Unavailable

8

CLAMP

34176-03G00

Unavailable

9

SCREW (3X14)

34149-31F10

$4.10

10

SCREW (3X14)

34149-03G00

$3.71

11

SCREW This part replaces 02142-04163.

02142-0416A

$2.27

12

SPACER

34187-47F00

$7.85

13

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.92

14

BOLT This part replaces 07130-05203.

07130-0520B

$2.53
