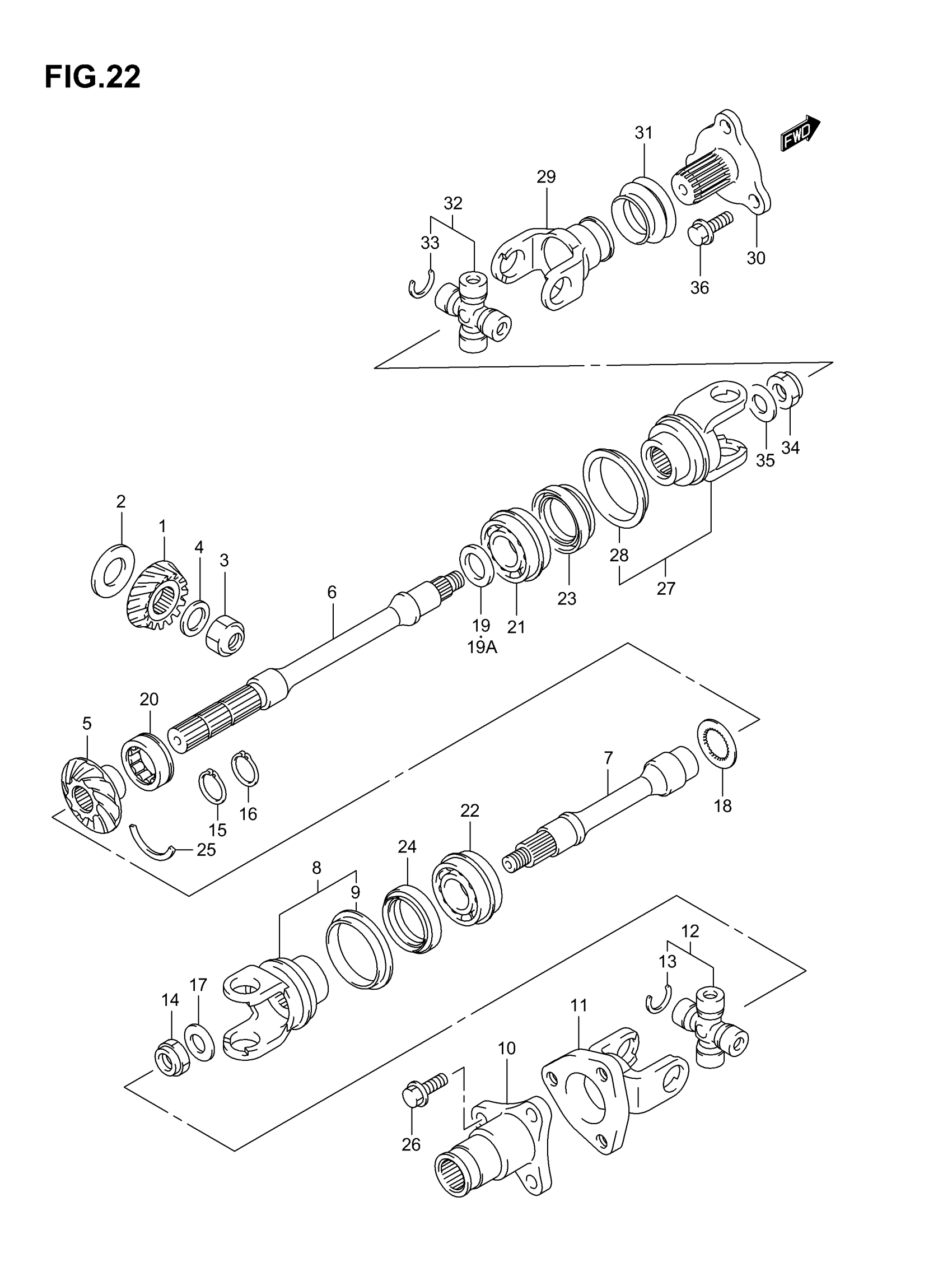

Suzuki LT-A500F (2007) SECONDARY DRIVE Diagram

#

Description
Price

1

GEAR, SEC DRIVE BEVEL | NT:15

24911-44D40

$227.45

2

SHIM SET,SEC DRIVE BEVEL | MODEL K4/K5 T:0.25/0.30/0.35/0.90/1.00/ 1.05/1.10/1.15 This part replaces 24935-19810.

24935-03811

$133.70

2

SHIM SET,SEC DRIVE BEVEL | MODEL K6/K7 T:0.25/0.30/0.35/0.55/0.58/ 0.60/0.63/0.65/0.68/0.70/ 0.73/0.75/0.78/0.80/0.83/ 0.85/0.88/0.90/0.93/0.95/ 0.98/1.00/1.03/1.05/1.08/ 1.10/1.13/1.15/1.18/1.20/ 1.23/1.25/1.28/1.30

24935-03811

$133.70

3

NUT, SEC DRIVE BEVEL GEAR

09140-20012

$4.32

4

WASHER, SEC DRIVE BEVEL GEAR | 20X32X1

09181-20223

$2.92

5

GEAR, SEC DRIVEN BEVEL

24921-09F70

$282.23

6

SHAFT, SEC DRIVEN FRONT

24961-09F70

Unavailable

7

SHAFT, SEC DRIVEN OUTPUT REAR

24970-09F52

Unavailable

8

YOKE, RR DRIVE OUTPUT | Includes Item(s) 9

27130-03G10

$189.03

9

PLATE, OUTPUT

27592-38F00

$11.33

10

SHAFT, PROPELLER REAR

27150-38F00

$135.18

11

YOKE, PROP SHAFT JOINT REAR

27161-03G00

Unavailable

12

JOINT SET, UNIVERSAL RR | Includes Item(s) 13 This part replaces 27200-73813.

27200-73814

$50.65

13

CIRCLIP, UNIVERSAL OUTPUT RR

09380-25005

$1.67

14

NUT, REAR DRIVE OUTPUT YOKE

09159-16003

$4.00

15

CIRCLIP, ENGINE SPROCKET This part replaces 08331-31246.

08331-3124A

$2.03

16

CIRCLIP, ENGINE SPROCKET This part replaces 08331-31246.

08331-3124A

$2.03

17

WASHER, REAR OUTPUT YOKE | 16X30X3

09160-16026

$5.00

18

WASHER, SEC DRIVEN SHAFT

09167-24002

$2.90

19

SHIM, SEC DRIVEN | 25X34X0.6,MODEL K4/K5

09181-25051

$3.50

19

SHIM, SEC DRIVEN | 25X34X0.65,MODEL K4/K5

09181-25052

$3.50

19

SHIM (25X34X0.7) | 25X34X0.70,MODEL K4/K5 This part replaces 09181-25053.

09181-25160

$2.93

19

SHIM, SEC DRIVEN | 25X34X0.75,MODEL K4/K5

09181-25054

$3.50

19

SHIM 0.8 | 25X34X0.80,MODEL K4/K5 This part replaces 09181-25055.

09181-25162

$2.42

19

SHIM, SEC DRIVEN | 25X34X0.85,MODEL K4/K5

09181-25056

$3.42

19

SHIM 0.9 | 25X34X0.90,MODEL K4/K5 This part replaces 09181-25057.

09181-25164

$2.42

19

SHIM, SEC DRIVEN | 25X34X0.95,MODEL K4/K5

09181-25058

$3.50

19

WASHER, 5TH DRIVE | 25X34X1.00,MODEL K4/K5 This part replaces 09181-25059.

09181-25167

$3.12

19

SHIM, SEC DRIVEN | 25X34X1.05,MODEL K4/K5

09181-25060

$3.42

19

SHIM, SEC DRIVEN | 25X34X1.10,MODEL K4/K5

09181-25061

$3.85

19

SHIM, SEC DRIVEN | 25X34X1.15,MODEL K4/K5

09181-25062

$3.27

19

SHIM, SEC DRIVEN | 25X34X1.20,MODEL K4/K5

09181-25063

$3.77

19A

SHIM SET,SEC DRIVEN BEVEL | MODEL K6/K7 T:0.55/0.58/0.60/0.63/0.65/ 0.68/0.70/0.73/0.75/0.78/ 0.80/0.83/0.85/0.88/0.90/ 0.93/0.95/0.98/1.00/1.03/ 1.05/1.08/1.10/1.13/1.15/ 1.18/1.20/1.23/1.25/1.28/ 1.30/1.33/1.35/1.38/1.40

24945-03811

$111.58

20

BRG, SEC DRIVEN GEAR MDL | 30X50X17

09263-30050

$57.07

21

BRG, SEC DRIVEN OUTPUT SFT FR | 25X52X20.6

09267-25014

$124.50

22

BRG, SEC DRIVEN OUTPUT SFT RR | 25X52X20.6

09267-25014

$124.50

23

OIL SEAL, DRIVEN SHAFT FRONT | 34X52X9

09283-34008

$20.72

24

OIL SEAL, DRIVEN SHAFT REAR | 34X52X9

09283-34008

$20.72

25

RING, SEC DRIVEN BEARING M

09390-50002

$3.03

26

BOLT, PROPELLER SHAFT REAR | 10X20

09103-10310

$3.10

27

YOKE, FRONT DRIVE OUTPUT | Includes Item(s) 28

27130-03G00

$156.94

28

PLATE, OUTPUT

27592-38F00

$11.33

29

YOKE, PROPELLER SHAFT JOINT

27140-03G00

$117.76

30

SHAFT, PROPELLER

27150-03G10

Unavailable

31

BOOT, PROPELLER SHAFT

27153-03G00

$10.47

32

JOINT SET,UNIVERSAL | Includes Item(s) 33 This part replaces 27200-19810.

27200-19811

$59.54

33

CIRCLIP

09380-20016

$2.32

34

NUT, FRONT DRIVE OUTPUT YOKE

09159-16003

$4.00

35

WASHER, FR DRIVE OUTPUT YOKE | 16X30X3

09160-16026

$5.00

36

BOLT, PROPELLER SHAFT (10X20)

09103-10310

$3.10
