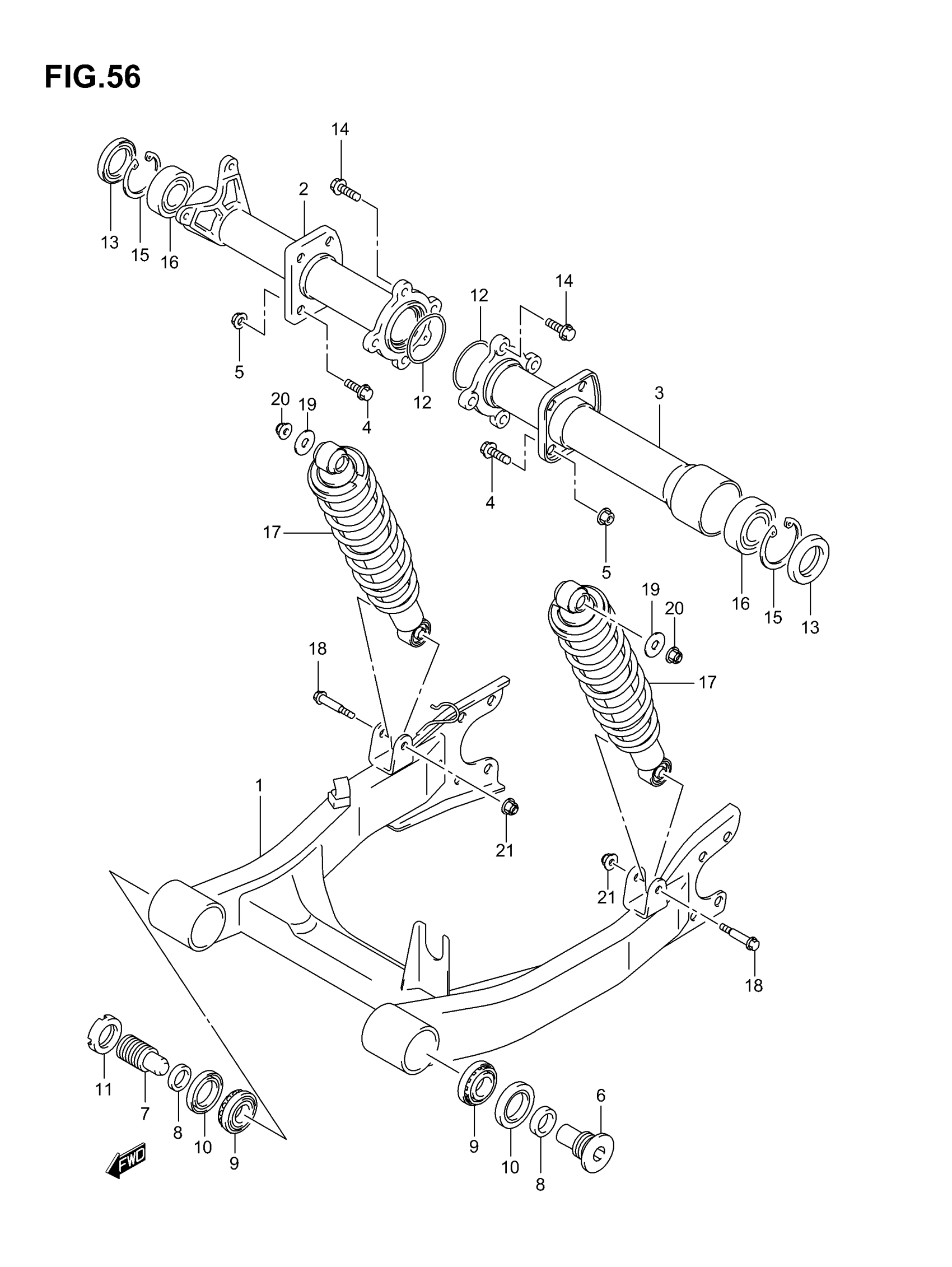

Suzuki LT-A500F (2007) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM, REAR

61100-03G00

Unavailable

2

HOUSING, REAR AXLE R

61300-03G20

$231.12

3

HOUSING, REAR AXLE L

61400-03G20

$228.97

4

BOLT, REAR SWGARM BRACKET

09103-10216

$4.17

5

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

6

BOLT, PIVOT L | MODEL K4 This part replaces 61213-03G00.

61213-03G20

$36.72

6

BOLT, PIVOT L | MODEL K5/K6/K7

61213-03G20

$36.72

7

BOLT, PIVOT R | MODEL K4 This part replaces 61213-03G10.

61213-03G30

$34.67

7

BOLT, PIVOT R | MODEL K5/K6/K7

61213-03G30

$34.67

8

SPACER, PIVOT

61251-03G00

$12.48

9

BEARING, PIVOT

09265-17014

$24.48

10

SEAL,OIL This part replaces 09285-25003.

09285-25007

$7.05

11

NUT, PIVOT

61214-03G00

$27.72

12

O RING, REAR AXLE HOUSING

09280-70005

$6.23

13

SEAL, REAR AXLE HOUSING

09283-38022

$13.01

14

BOLT, AXLE HOUSING | MODEL K4/K5/K6

09103-10343

$4.68

14

BOLT, AXLE HOUSING (10X30) | MODEL K7 This part replaces 09103-10410.

09103-10421

$4.25

15

CIRCLIP

08331-41559

$3.70

16

BEARING, HUB

08123-60067

$29.13

17

ABSORBER ASSY, REAR SHOCK (BLACK) | MODEL K4

62100-03G50-019

$209.22

17

ABSORBER ASSY, REAR SHOCK (BLACK) | MODEL K5/K6/K7

62100-03G60-019

$209.07

18

BOLT

09103-10126

$4.50

19

WASHER, UPPER OUTER

09160-10501

$2.33

20

NUT This part replaces 08319-31103.

08319-3110A

$2.73

21

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55
