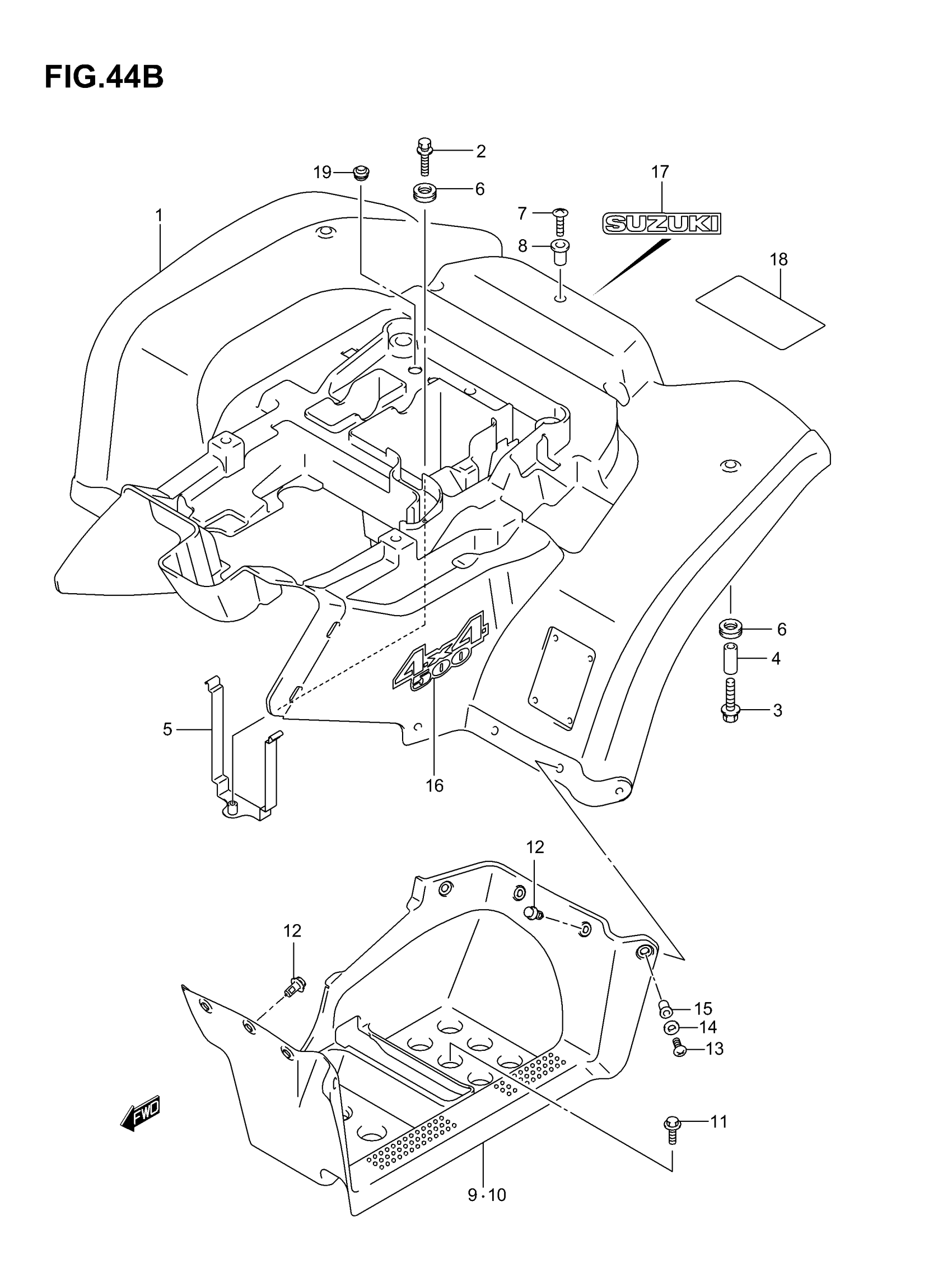

Suzuki LT-A500F (2007) REAR FENDER (MODEL K7) Diagram

#

Description
Price

1

FENDER, REAR (RED)

63111-03G21-YT9

$597.02

1

FENDER, REAR (GREEN)

63111-03G21-YLG

Unavailable

1

FENDER,REAR (CA | CAMO This part replaces 63111-03GC1-YKL.

63111-03GC2-YKL

$893.72

1

FENDER, REAR (BLACK) | FOR YLZ,Y4X

63111-03G21-YLZ

$595.52

1

FENDER, REAR (YELLOW) | E28

63111-03G21-YU1

$587.13

2

BOLT, CENTER

09112-06009

$3.93

3

BOLT, CENTER

09116-06147

$3.20

4

SPACER

09180-06120

$2.32

5

BRACKET, REAR FENDER

63151-03G01

Unavailable

6

CUSHION

09320-11008

$2.60

7

SCREW, REAR This part replaces 02142-05203.

02142-0520B

$1.78

8

NUT

09159-05019

$7.14

9

MUDGUARD,FOOTRE This part replaces 63331-03G00-291.

63331-03G02-291

Unavailable

10

MUDGUARD,FOOTRE This part replaces 63341-03G00-291.

63341-03G02-291

Unavailable

11

BOLT (6X16.5) This part replaces 09111-06061.

09111-06094

$2.03

12

CLIP

09409-08335

$2.47

13

SCREW, REAR This part replaces 02142-05203.

02142-0520B

$1.78

14

WASHER

09160-05046

$1.92

15

NUT

09159-05019

$7.14

16

EMBLEM, SIDE | FOR YT9,YLG,YLZ,Y4X,YU1

68171-03G30-DJG

Unavailable

16

EMBLEM, SIDE | FOR YKL

68171-03GC0-DJG

Unavailable

17

EMBLEM,"SUZUKI" | FOR YT9,YLG,YLZ,Y4X,YU1 This part replaces 68171-03G20-YD8.

68171-03G21-YD8

$11.25

17

EMBLEM, REAR (SILVER) | FOR YKL

68171-03GA0-YD8

Unavailable

18

SHIELD, REAR FENDER | FOR YKL

63262-21G00

Unavailable

19

PLUG, REAR FENDER

63118-03G00

Unavailable
