2007 Suzuki LT-A500F Rear Caliper Diagram

← All diagrams

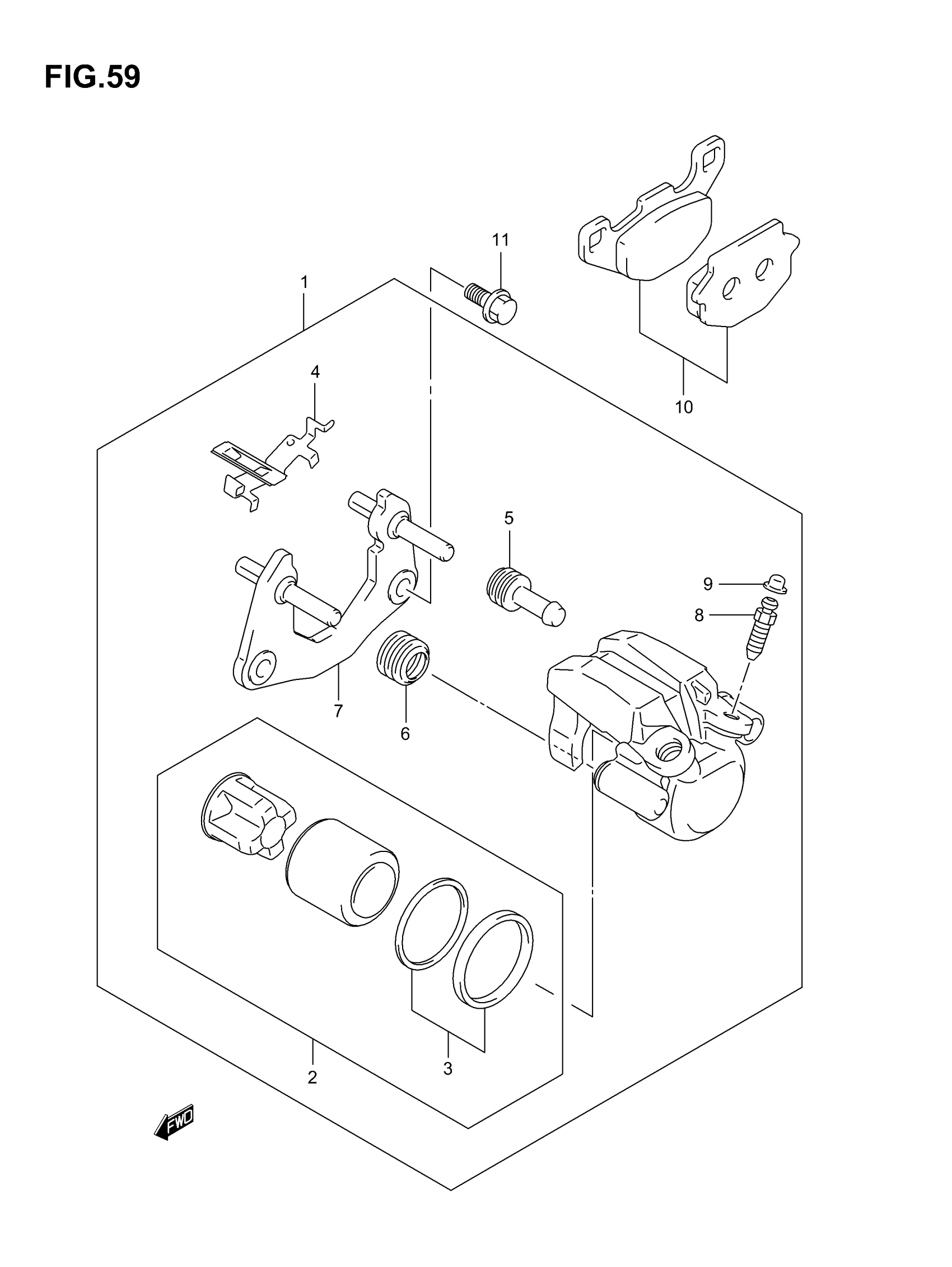

Find the part on the Rear Caliper diagram for your 2007 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki LT-A500F Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$301.45

In stock

2

PISTON SET

59100-01850

1

$48.07

In stock

3

SEAL SET, PISTON

59100-35860

1

$15.55

In stock

4

SPRING, PAD

59315-36500

1

$9.61

In stock

5

.INSULATOR, AXLE

59313-36500

1

$5.97

In stock

6

.BOOT, AXLE

59312-36500

1

$5.21

In stock

7

BRACKET

69150-03GF0

1

$123.38

In stock

8

BLEEDER

59121-18410

1

$8.70

In stock

9

CAP, BLEEDER

55156-66310

1

$5.15

In stock

10

PAD SET

69100-03860

1

$60.23

In stock

11

BOLT

09103-08385

2

$4.00

In stock
