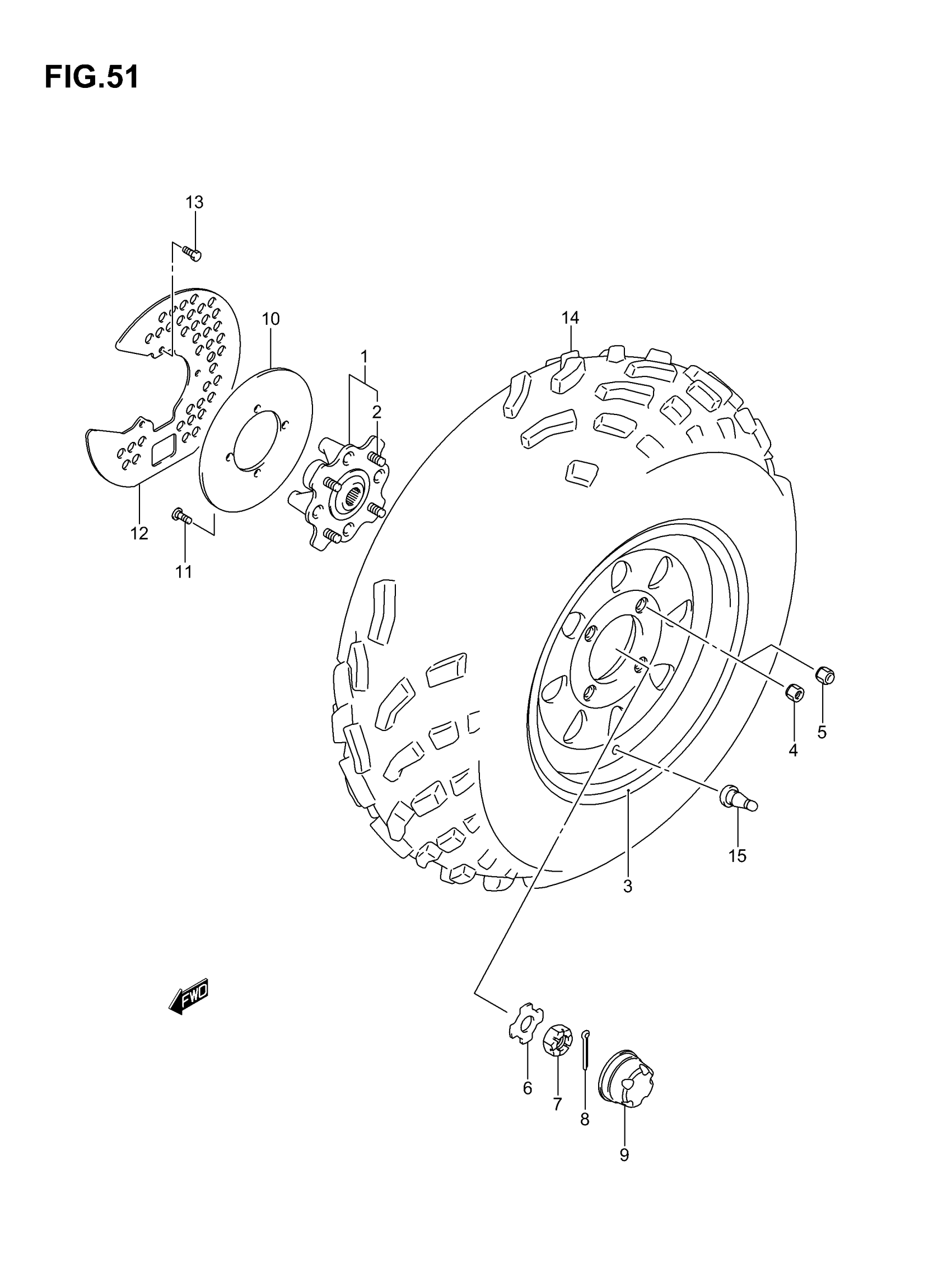

Suzuki LT-A500F (2007) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHEEL | Includes Item(s) 2

54110-03G10

Unavailable

2

BOLT (10X30) This part replaces 09119-10049.

09119-10049-XC0

$2.26

3

RIM, FRONT WHEEL (12X6.0AT) (SILVER) | MODEL K4 FOR YT8,YT9,YU1,YDH MODEL K5 MODEL K6 019,YT9,YLG,YKL MODEL K7 YT9,YLG,YKL,YLZ

55311-03G00-12Z

Unavailable

3

RIM, FRONT WHEEL (12X6.0AT) (SILVER) | MODEL K4 FOR YFR MODEL K6 FOR 3WX MODEL K7

55311-03G10-12Z

Unavailable

4

NUT | MODEL K4 FOR YT8,YT9,YU1,YDH MODEL K5/K6/K7

09140-10021

$2.03

5

NUT | MODEL K4 FOR YFR

09159-10012

$8.18

6

WASHER

64723-09F00

$13.35

7

NUT, HUB

09141-18010

$10.11

8

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

9

CAP,WHEEL CENTER

54725-09F01

$9.95

10

DISC,FRONT BRAKE

59211-38F20

$46.75

11

BOLT, BRAKE DISC

09106-08155

$3.76

12

COVER, FRONT DISC

59231-38F01

$14.07

13

BOLT (6X12) This part replaces 09103-06083.

09103-06285

$1.97

14

TIRE COMP,FRONT | MODEL K4/K5/K6 This part replaces 55110-03G00.

55110-03G20

$541.40

14

TIRE, FRONT (AT25X8-12) (DUNLOP) | MODEL K7

55110-03G10

Unavailable

15

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85
