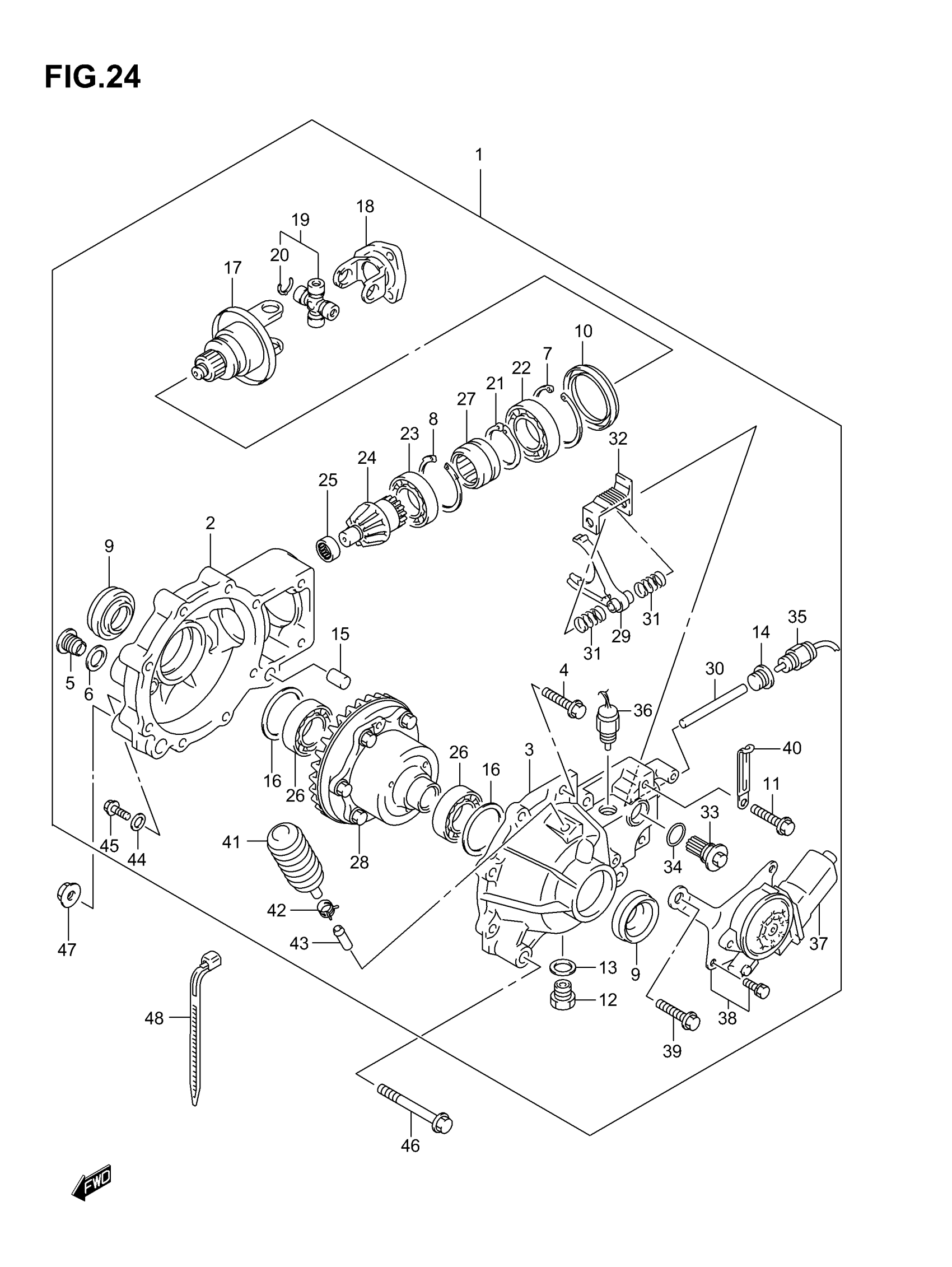

Suzuki LT-A500F (2007) FINAL BEVEL GEAR (FRONT)('%05/10) Diagram

#

Description
Price

1

CASE ASSY, FRONT DIFFERENTIAL | Includes Item(s) 2 - 37 This part replaces 27400-03G12.

27400-03G13

$1,568.02

2

HOUSING FINAL DRIVE, FRONT This part replaces 27451-38FB0.

27451-38FB1

Unavailable

3

COVER FINAL DRIVE, FRONT

27461-03GA0

Unavailable

4

BOLT (8X25) This part replaces 27401-38FA0.

27401-38FA1

Unavailable

5

PLUG

27409-38FA0

$3.40

6

.WASHER This part replaces 27407-38FA0.

27407-31GA0

$9.15

7

RING SNAP

27403-38FA0

$4.82

8

RING SNAP

27403-38FB0

$4.82

9

OIL SEAL

27406-38FD0

$7.66

10

OIL SEAL

27406-38FB0

$9.81

11

BOLT (6X12)

27401-03GC0

$2.80

12

PLUG

27409-38FB0

Unavailable

13

WASHER

27407-38FB0

$2.78

14

PLUG This part replaces 27409-03GA0.

27409-03GA1

$5.87

15

COLLAR

27404-38FA0

Unavailable

16

SHIM SET | T:0.70/0.75/0.80/0.85/0.90/0.95/ 1.00/1.05/1.10/1.15/1.20/1.25/ 1.30/1.35/1.40/1.45

27445-38FA0

$114.32

17

YOKE ASSY

27130-03GA0

$113.25

18

YOKE, PROP SHAFT JOINT

27161-03GA0

$78.23

19

JOINT SET,UNIVERSAL This part replaces 27200-19810.

27200-19811

$59.54

20

CIRCLIP

09380-20016

$2.32

21

SNAP RING

27403-38FC0

$3.27

22

BEARING

27405-38FA0

$28.97

23

BEARING

27405-38FB0

$30.47

24

PINION, DRIVE

27311-03GA0

Unavailable

25

BEARING

27405-38FC0

$8.53

26

BEARING

27405-38FD0

$15.88

27

SLEEVE This part replaces 27371-38FA0.

27371-31GA0

$76.35

28

GEAR ASSY

27320-03GA0

$566.42

29

FORK, SHIFT

27941-03GA0

$87.70

30

ROD, SHIFT

27921-03GA0

Unavailable

31

SPRING, SHIFT

27402-03GA0

Unavailable

32

BRACKET, ROD

27911-03GA0

$41.45

33

GEAR, SHIFT

27931-03GA0

$60.37

34

SEAL This part replaces 27406-03GA0.

27406-03GA1

$2.50

35

SWITCH ASSY, 2WD

27425-03GA0

$95.52

36

SWITCH ASSY, 4WD

27425-03GB0

$112.37

37

DVC ASSY

27421-03GA0

$524.22

38

BRACKET SET, ACTUATOR | Includes Item(s) 39 - 45

27420-03GA0

$13.65

39

BOLT (8X45)

27401-03GA0

Unavailable

40

CLIP

27403-03GA0

Unavailable

41

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

$18.50

42

CLAMP

09401-08411

$1.78

43

UNION

09364-08003

$3.15

44

WASHER, LEVEL PLUG

27407-38FD0

$3.05

45

PLUG, LEVEL

27409-38FC0

$5.35

46

BOLT, FRONT DIFFERENTIAL

09103-10148

$6.94

47

NUT, FRONT DIFFERENTIAL

08319-31107

$2.73

48

CLAMP (L:125)

09407-14403

$2.26
