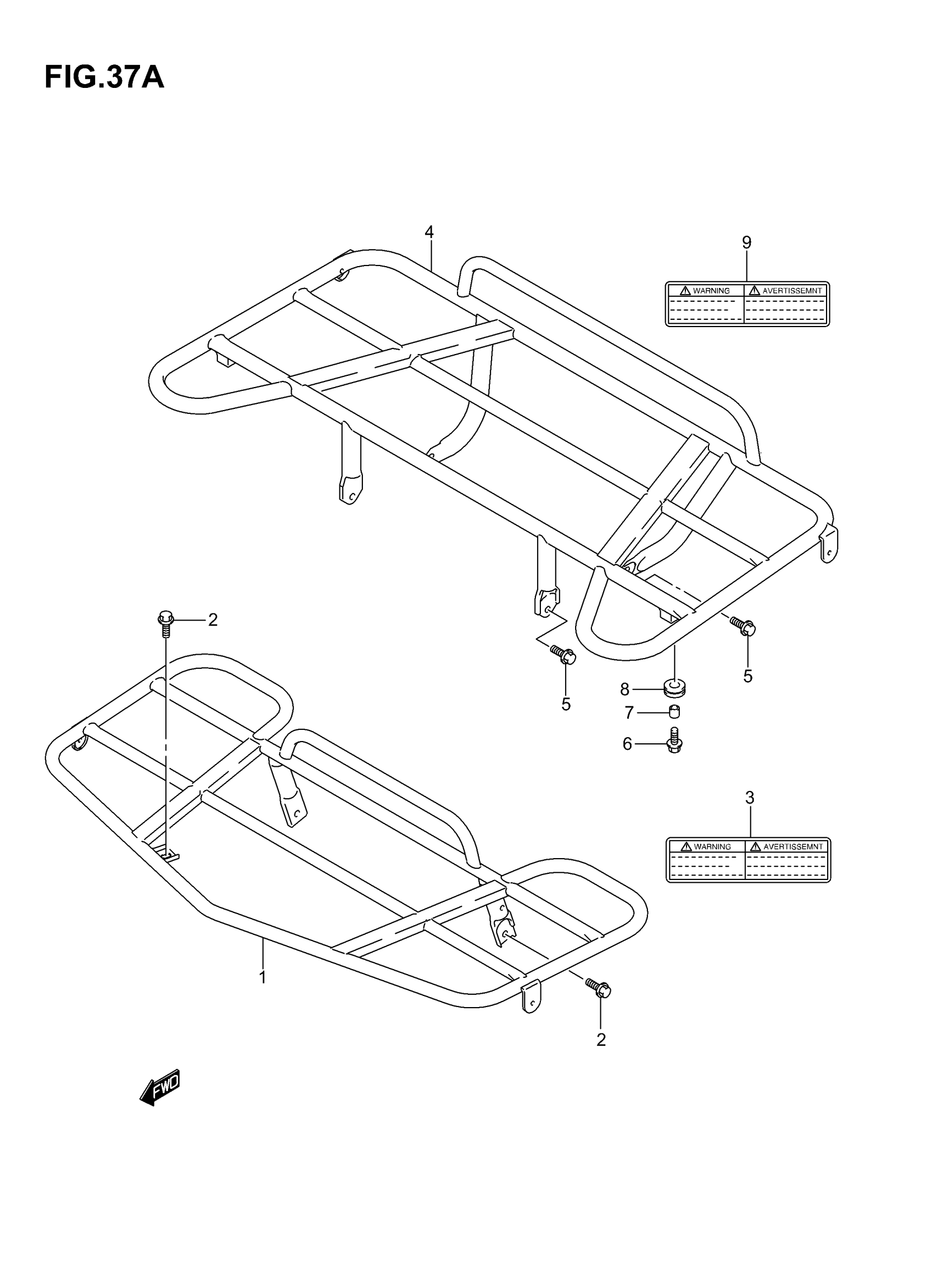

Suzuki LT-A500F (2007) CARRIER (MODEL K6) Diagram

#

Description
Price

1

CARRIER, FRONT | MODEL K6 E33 This part replaces 46410-03G40-YH5.

46400-03GD0-YSN

$299.47

1

CARRIER, FRONT (BLACK) | MODEL K6 E28

46410-03G50-YH5

Unavailable

1

CARRIER, FRONT (SILVER) | MODEL K6 E28 FOR 3WX

46410-03G50-YFS

Unavailable

1

CARRIER, FRONT | MODEL K7 This part replaces 46400-03GD0-YH5.

46400-03GD0-YSN

$299.47

1

CARRIER, FRONT (SILVER) | MODEL K7 E28 FOR 4YX

46400-03GD0-YFS

Unavailable

2

BOLT This part replaces 01550-08203.

01550-0820A

$2.23

3

LABEL,FRONT CAR | P33 This part replaces 68381-19B00.

68381-19B01

$5.42

3

LABEL,WARNING F | P28 This part replaces 68381-19B20.

68381-19B21

$8.03

4

CARRIER, REAR | MODEL K6 E33 This part replaces 46310-03G40-YH5.

46300-03GD0-YSN

$328.97

4

CARRIER, REAR (BLACK) | MODEL K6 E28

46310-03G50-YH5

Unavailable

4

CARRIER, REAR (SILVER) | MODEL K6 E28 FOR 3WX

46310-03G50-YFS

Unavailable

4

CARRIER, REAR | MODEL K7 This part replaces 46300-03GD0-YH5.

46300-03GD0-YSN

$328.97

4

CARRIER, REAR (SILVER) | MODEL K7 E28 FOR 4YX

46300-03GD0-YFS

Unavailable

5

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

6

BOLT, LOWER

09116-06147

$3.20

7

SPACER

09180-06120

$2.32

8

CUSHION

09320-11008

$2.60

9

LABEL,REAR CARR | E33 This part replaces 68391-19B00.

68391-19B01

$5.60

9

LABEL, REAR CARRIER (FRENCH) | E28

68391-19B20

Unavailable
