2003 Suzuki LT-A500F Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2003 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

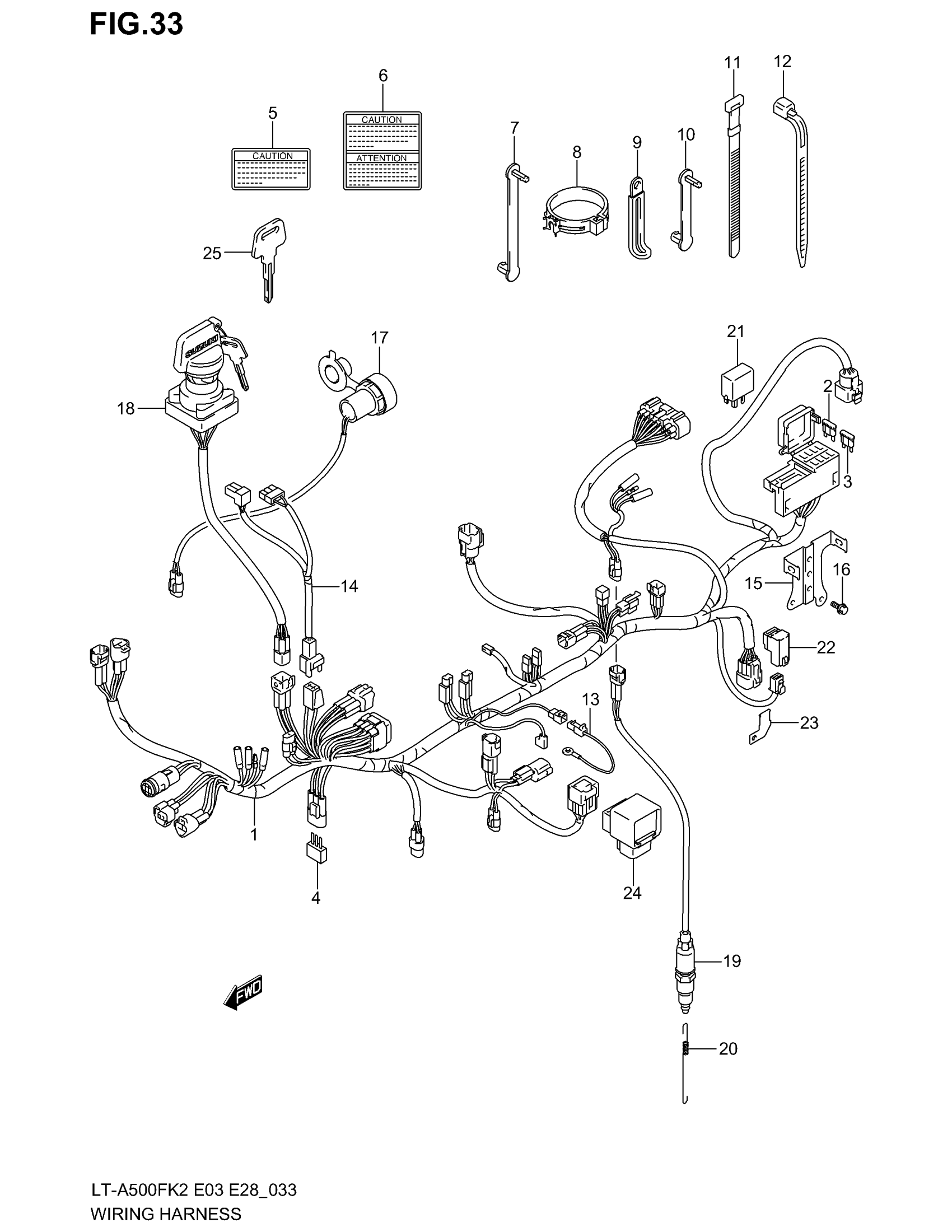

2003 Suzuki LT-A500F Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRING HARNESS | Includes Item(s) 2 - 4

36610-03G00

1
Out of stock

2

.FUSE (5A)

09481-05501

1
Out of stock

3

FUSE (10A)

09481-10501

5
Out of stock

4

.DIODE This part replaces 36611-38A00.

36611-38A10

2
Out of stock

5

1

$8.52

In stock

6

LABEL, CAUTION MAX AMP | E28

38852-03G00

1
Out of stock

7

CLAMP

36651-48E00

1
Out of stock

8

CLAMP

09403-25401

2
Out of stock

9

CLAMP This part replaces 09404-06432.

09404-06039

4
Out of stock

10

CLAMP

09407-03401

1
Out of stock

11

CLAMP

09407-12402

2
Out of stock

12

CLAMP (L:125)

09407-14403

1
Out of stock

13

WIRE, IGNITION COIL

36851-05D00

1
Out of stock

14

WIRE, FRONT BRAKE SWITCH LEAD

36854-03G00

1
Out of stock

15

BRACKET, FUSE BOX

36744-09F00

1
Out of stock

16

BOLT (5X10)

09117-05001

2
Out of stock

17

TERMINAL, POWER SOURCE | 12V80W

38850-09F00

1
Out of stock

18

SWITCH ASSY,IGN This part replaces 37110-03G00.

37110-03G01

1
Out of stock

19

SWITCH ASSY,STOP LAMP This part replaces 37740-38F00.

37740-38F01

11
Out of stock

20

SPRING

09443-06080

1
Out of stock

21

RELAY,NEUTRAL START

38730-09F00

1
Out of stock

22

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

1
Out of stock

23

BRACKET, GEAR IN START

38741-09F00

1
Out of stock

24

RELAY ASSY, DRIVE

38750-03G00

1
Out of stock

25

KEY,BLANK (TYPE:C) | OPT

37146-19B00

1
Out of stock

25

KEY,BLANK (TYPE:D) | OPT

37146-19B10

1
Out of stock

25

KEY,BLANK (TYPE:E) | OPT

37146-19B20

1
Out of stock

25

KEY,BLANK (TYPE:F) | OPT

37146-19B30

1
Out of stock
