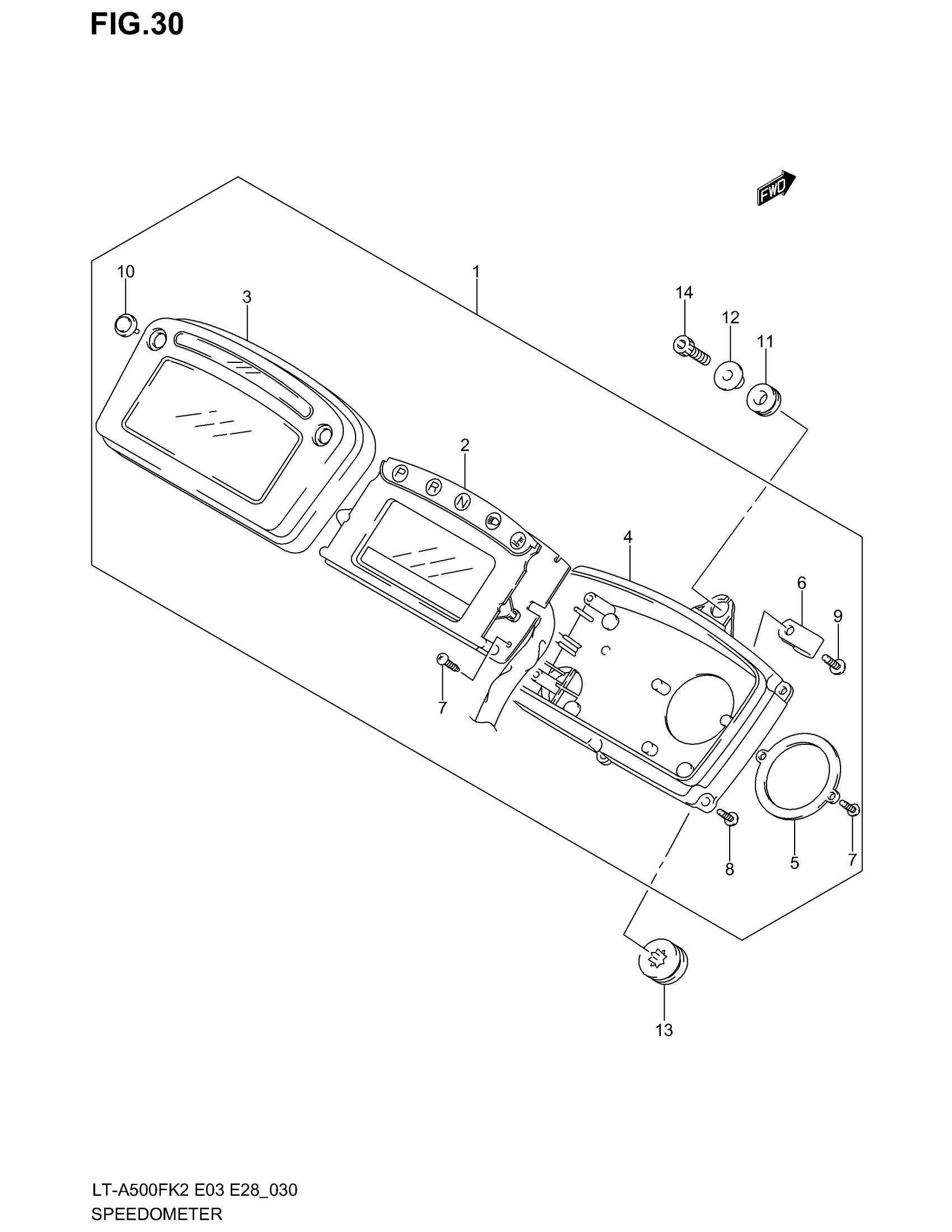

Suzuki LT-A500F (2003) SPEEDOMETER (MODEL K2) Diagram

#

Description
Price

1

SPEEDOMETER ASSY This part replaces 34100-03G00.

34100-03G20

Unavailable

1

SPEEDOMETER ASSY | E28; Includes Item(s) 2 - 11

34100-03G10

Unavailable

2

SPEEDOMETER This part replaces 34120-03G00.

34120-03G20

Unavailable

2

SPEEDOMETER | E28

34120-03G10

Unavailable

3

CASE, UPPER This part replaces 34150-03G00.

34150-31G00

$98.18

4

CASE, LOWER This part replaces 34111-03G00.

34111-03G60

$53.58

5

BRACKET

34128-03G00

Unavailable

6

CLAMP

34176-03G00

Unavailable

7

SCREW (3X14)

34149-31F10

$4.10

8

SCREW (3X14)

34149-03G00

$3.71

9

SCREW This part replaces 02142-04163.

02142-0416A

$2.27

10

SWITCH LEVER

34124-24F00

$8.83

11

CUSHION, METER This part replaces 34995-33E00.

34955-33E00

$3.56

12

SPACER

34187-47F00

$7.85

13

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.92

14

BOLT This part replaces 07130-05203.

07130-0520B

$2.53
