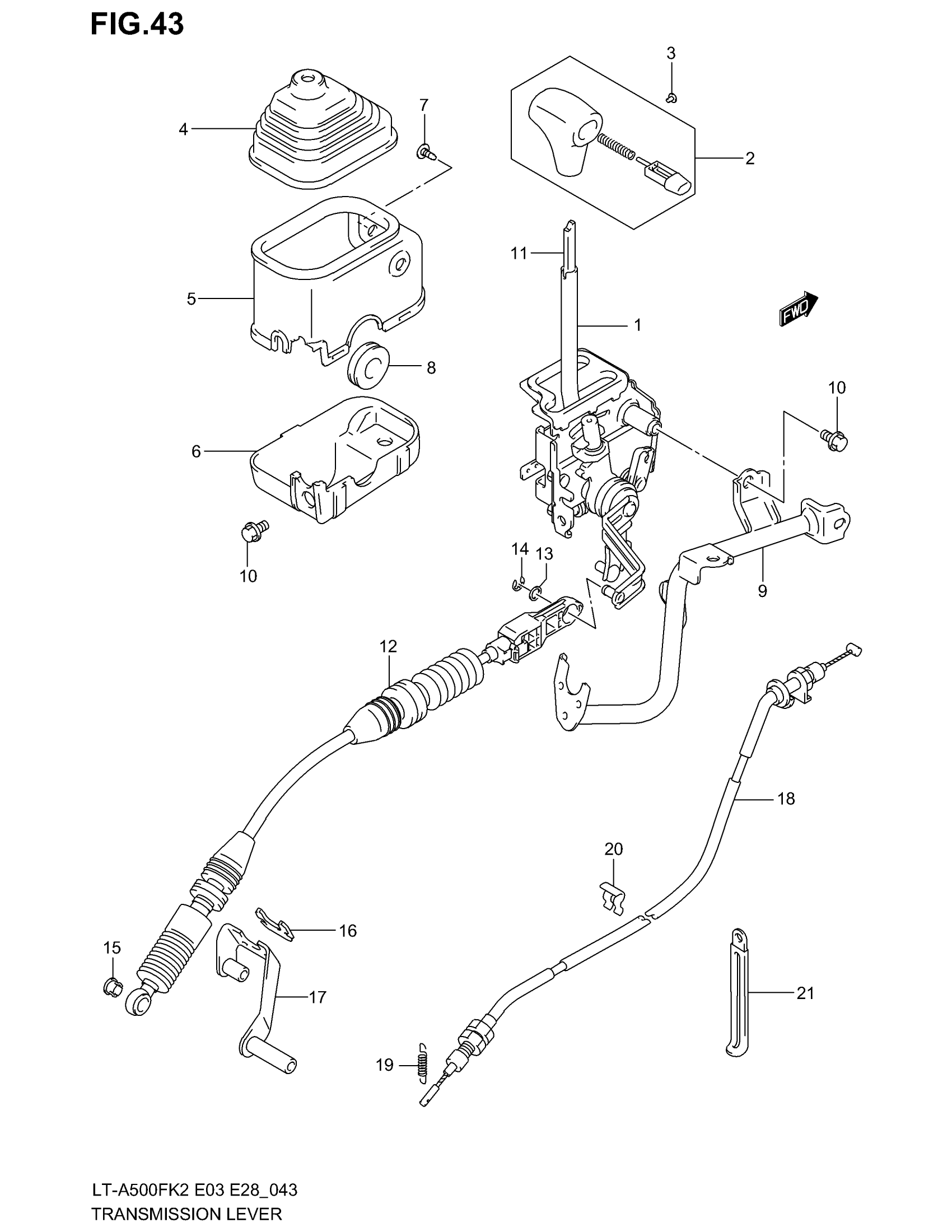

Suzuki LT-A500F (2003) SHIFT LEVER Diagram

#

Description
Price

1

LEVER SET,TRANS | MODEL K2 This part replaces 57810-03G00.

57810-03G01

$652.38

1

LEVER ASSY, TRANSMISSION | MODEL K3 This part replaces 57810-03G10.

57810-03G51

$649.73

2

KNOB, T/M LEVER This part replaces 57830-03G00.

57830-03G01

$49.03

3

SCREW,4X6 This part replaces 09125-04035.

09125-04035-XC0

$2.30

4

BOOT, T/M LEVER

57841-03G00

$29.95

5

COVER, T/M LEVER UPPER This part replaces 57843-03G00.

57843-03G01

$42.98

6

COVER, T/M LEVER LOWER

57844-03G00

$42.98

7

SCREW

09139-06083

$2.26

8

CUSHION, T/M LEVER

57842-03G00

$7.80

9

PLATE, T/M LEVER | MODEL K2

57820-03G00

Unavailable

9

PLATE, T/M LEVER | MODEL K3

57820-03G10

Unavailable

10

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

11

ROD, DETENT

57863-03G00

$9.34

12

CABLE, T/M GEAR SHIFT | MODEL K2

58680-03G00

Unavailable

12

CABLE, T/M GEAR SHIFT | MODEL K3

58680-03G50

$101.95

13

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

14

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49

15

BUSH, REAR

58821-03G00

$4.03

16

CLIP

28375-78A00

$5.17

17

BRACKET, T/M CABLE | MODEL K2

58870-03G00

Unavailable

17

BRACKET, T/M CABLE | MODEL K3

58870-03G10

Unavailable

18

CABLE, INTER LOCK This part replaces 58650-03G00.

58650-03G01

$68.90

19

SPRING,INTER LO This part replaces 58658-38F00.

58658-38F01

$10.10

20

E RING

09383-19001

$7.70

21

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74
