2003 Suzuki LT-A500F Right Rear Wheel Diagram

← All diagrams

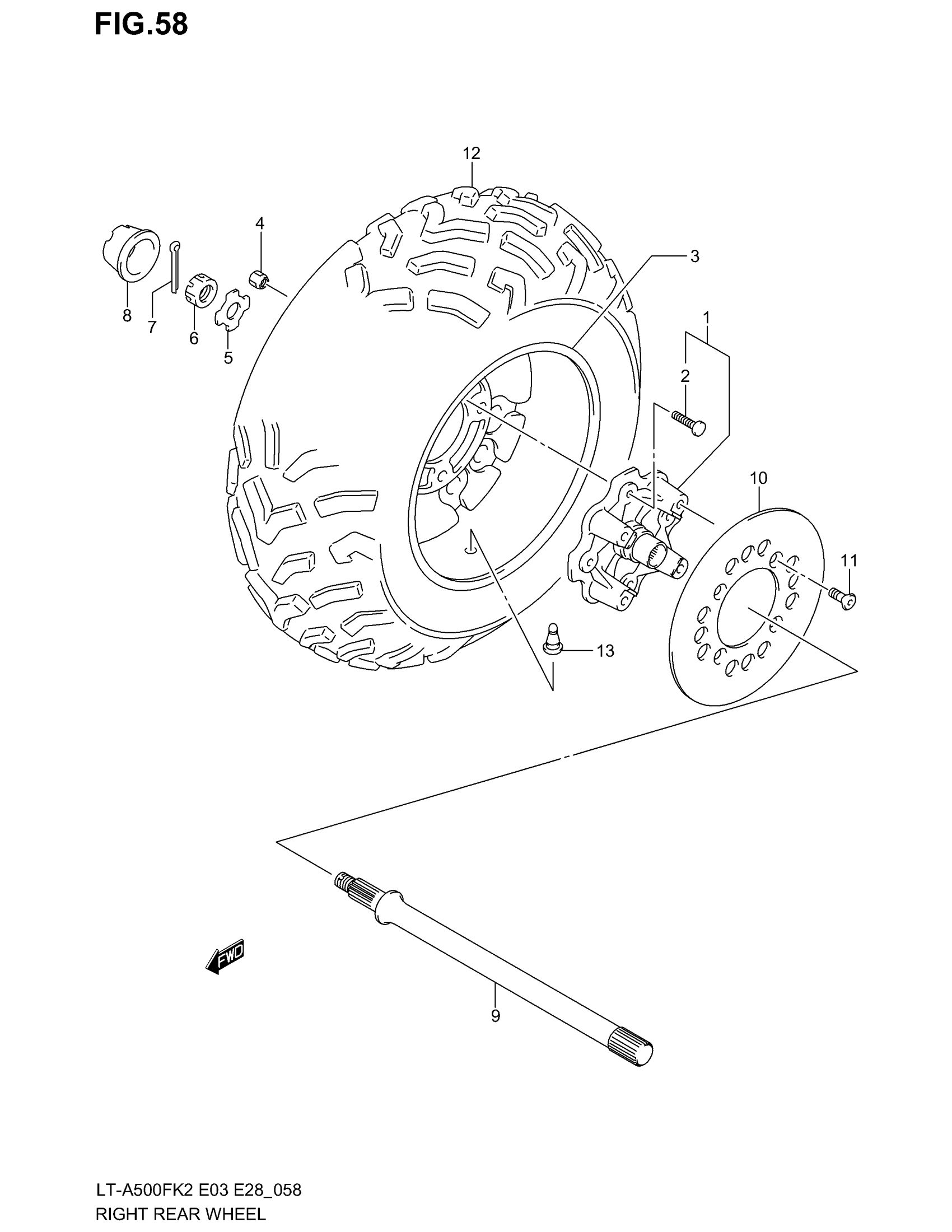

Find the part on the Right Rear Wheel diagram for your 2003 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki LT-A500F Right Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL RH | Includes Item(s) 2

64110-38F10

1
Out of stock

2

BOLT (10X30) This part replaces 09119-10049.

09119-10049-XC0

4
Out of stock

3

RIM, REAR WHEEL (12X7.5AT) (SILVER)

65311-03G00-12Z

1
Out of stock

4

NUT

09140-10021

4
Out of stock

5

WASHER

64723-09F00

1
Out of stock

6

NUT, HUB | MODEL K2

09141-18008

1

$8.27

In stock

6

NUT, HUB | MODEL K3

09141-18010

1
Out of stock

7

PIN, COTTER This part replaces 04111-40408.

04111-4040A

1
Out of stock

8

CAP,WHEEL CENTER

54725-09F01

1
Out of stock

9

AXLE, REAR RH

64711-03G00

1
Out of stock

10

DISC, REAR BRAKE

69211-38F00

1
Out of stock

11

BOLT

09106-08155

4
Out of stock

12

NO DESCRIPTION AVAILABLE This part replaces 65110-03G00.

65110-03G10

1
Out of stock

13

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock
