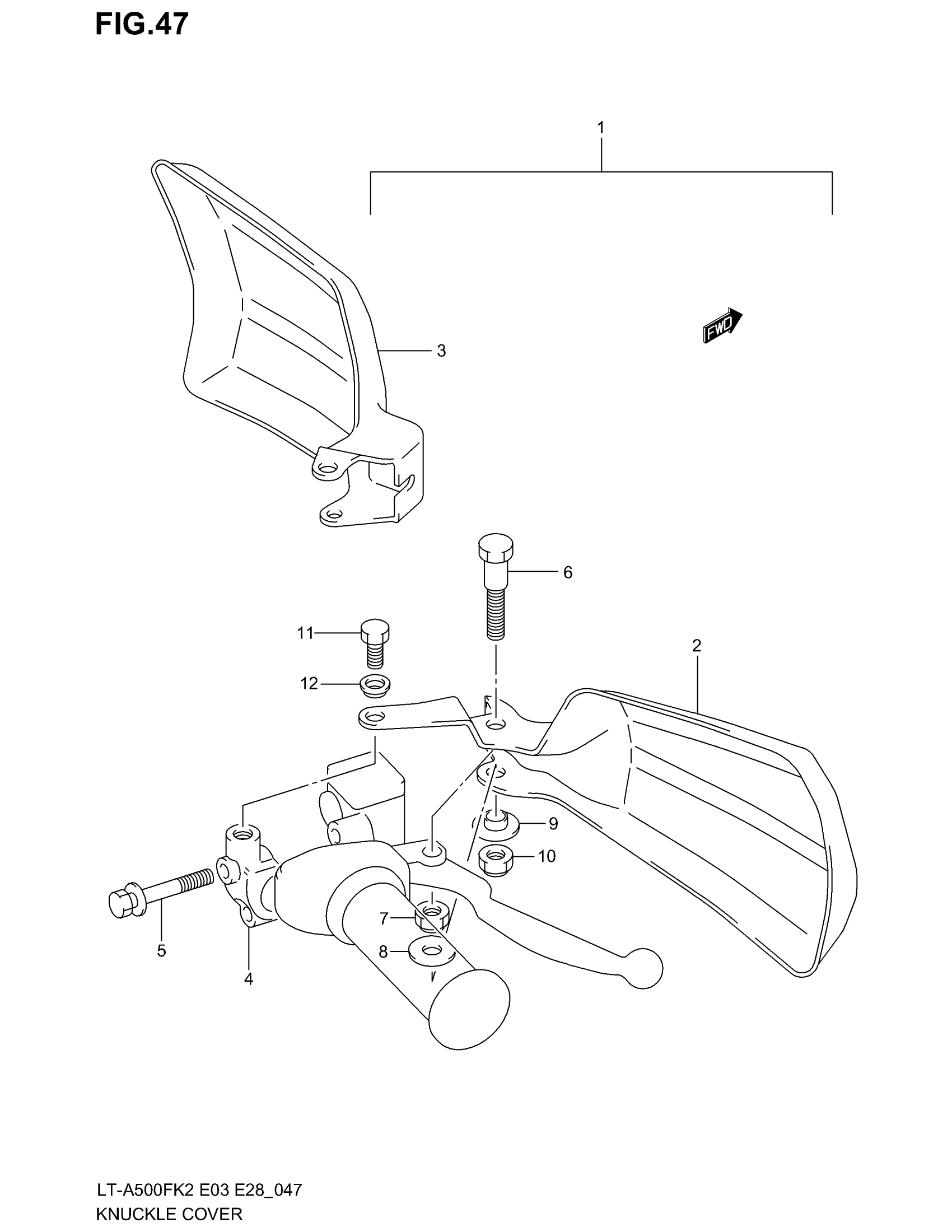

Find the part on the Knuckle Cover diagram for your 2003 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki LT-A500F Knuckle Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER SET, KNUCKLE (YELLOW)

57300-19811-YU1

—
Out of stock

1

COVER SET, KNUCKLE (GREEN) | Includes Item(s) 2 - 12

57300-19811-YT8

1
Out of stock

2

COVER, KNUCKLE RH (YELLOW)

57341-19B50-YU1

—
Out of stock

2

COVER, KNUCKLE RH (GREEN)

57341-19B50-YT8

—
Out of stock

3

COVER, KNUCKLE LH (YELLOW)

57541-19B50-YU1

—
Out of stock

3

COVER, KNUCKLE LH (GREEN)

57541-19B50-YT8

—
Out of stock

4

1

$19.60

In stock

5

1

$2.92

In stock

6

BOLT, LEVER PIVOT RH

57431-14A00

2

$8.97

In stock

7

NUT

09159-06015

1

$2.08

In stock

8

WASHER

09160-06019

2

$1.49

In stock

9

WASHER

09169-06033

2

$1.81

In stock

10

NUT

09159-06015

2

$2.08

In stock

11

BOLT, MIRROR STAY

09104-10036

2
Out of stock

12

WASHER,KNUCKLE COVER UPPER,L This part replaces 09169-10010.

09169-10024

2
Out of stock
