2003 Suzuki LT-A500F Rear Fender Diagram

← All diagrams

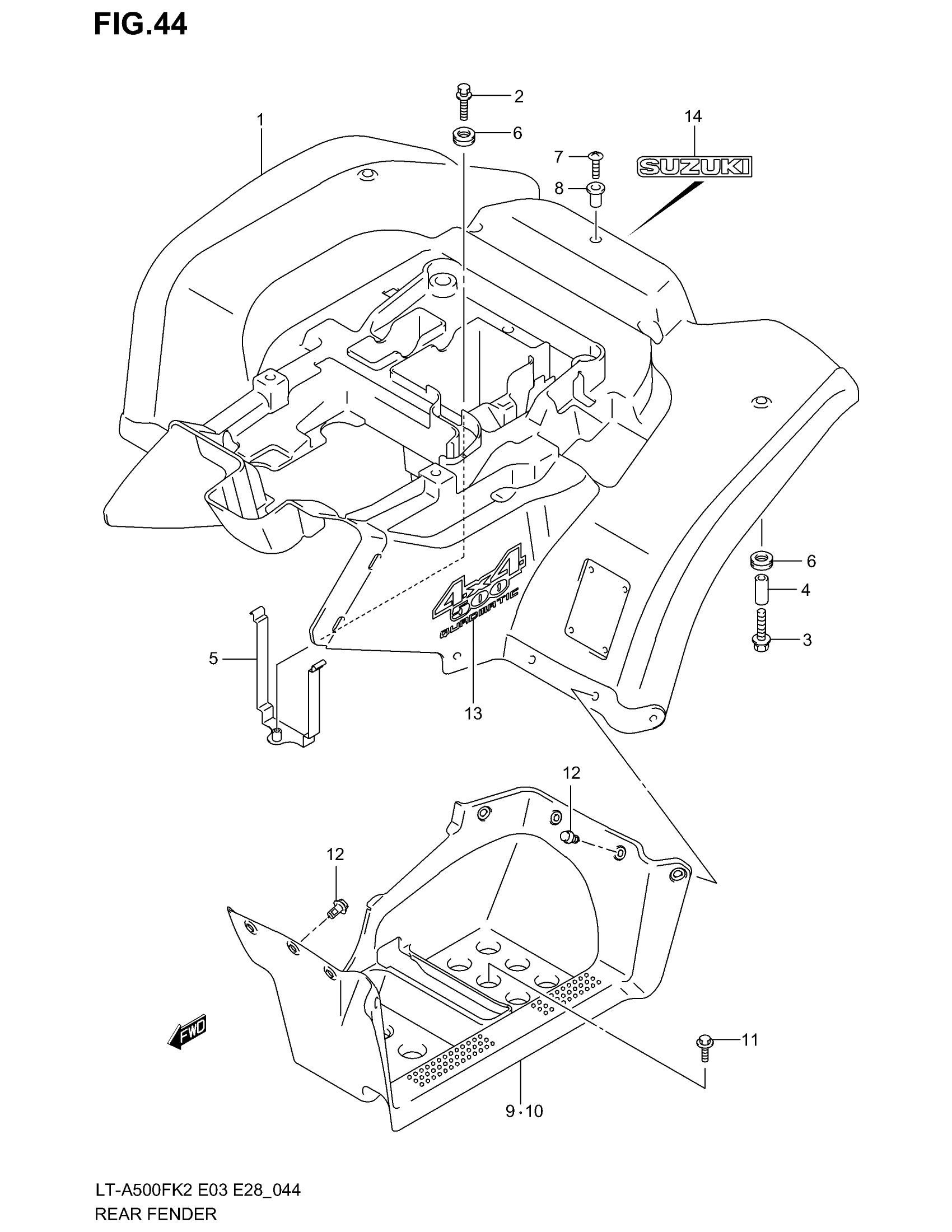

Find the part on the Rear Fender diagram for your 2003 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki LT-A500F Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 63110-03GT0-YU1.

63100-03891-YU1

1
Out of stock

1

NO DESCRIPTION AVAILABLE This part replaces 63110-03GT0-YT8.

63100-03890-YT8

1
Out of stock

1

FENDER, REAR (RED) | MODEL K3 This part replaces 63110-03GT0-YT9.

63111-03G21-YT9

1
Out of stock

2

BOLT, CENTER

09112-06009

1
Out of stock

3

BOLT, CENTER

09116-06147

2
Out of stock

4

SPACER

09180-06120

2
Out of stock

5

BRACKET, REAR FENDER

63151-03G01

1
Out of stock

6

CUSHION

09320-11008

3
Out of stock

7

SCREW, REAR This part replaces 02142-05203.

02142-0520B

1
Out of stock

8

NUT

09159-05019

1
Out of stock

9

MUDGUARD,FOOTRE This part replaces 63331-03G00-291.

63331-03G02-291

1
Out of stock

10

MUDGUARD,FOOTRE This part replaces 63341-03G00-291.

63341-03G02-291

1
Out of stock

11

BOLT (6X16.5) This part replaces 09111-06061.

09111-06094

4
Out of stock

12

CLIP

09409-08335

16
Out of stock

13

EMBLEM, SIDE | MODEL K2 FOR YU1

68171-03G00-HV9

2
Out of stock

13

EMBLEM, SIDE | MODEL K2 FOR YT8

68171-03G00-DJ8

2
Out of stock

13

EMBLEM, SIDE | MODEL K3 FOR YU1

68171-03G00-KL6

2
Out of stock

13

EMBLEM, SIDE | MODEL K3 FOR YT8,YT9

68171-03G00-JY5

2
Out of stock

14

EMBLEM, REAR | FOR YU1

68171-44B00-HW1

1
Out of stock

14

EMBLEM, REAR | FOR YT8

68171-44B00-HV6

1
Out of stock

14

EMBLEM, REAR | FOR YT9

68171-44B00-HV5

1
Out of stock
