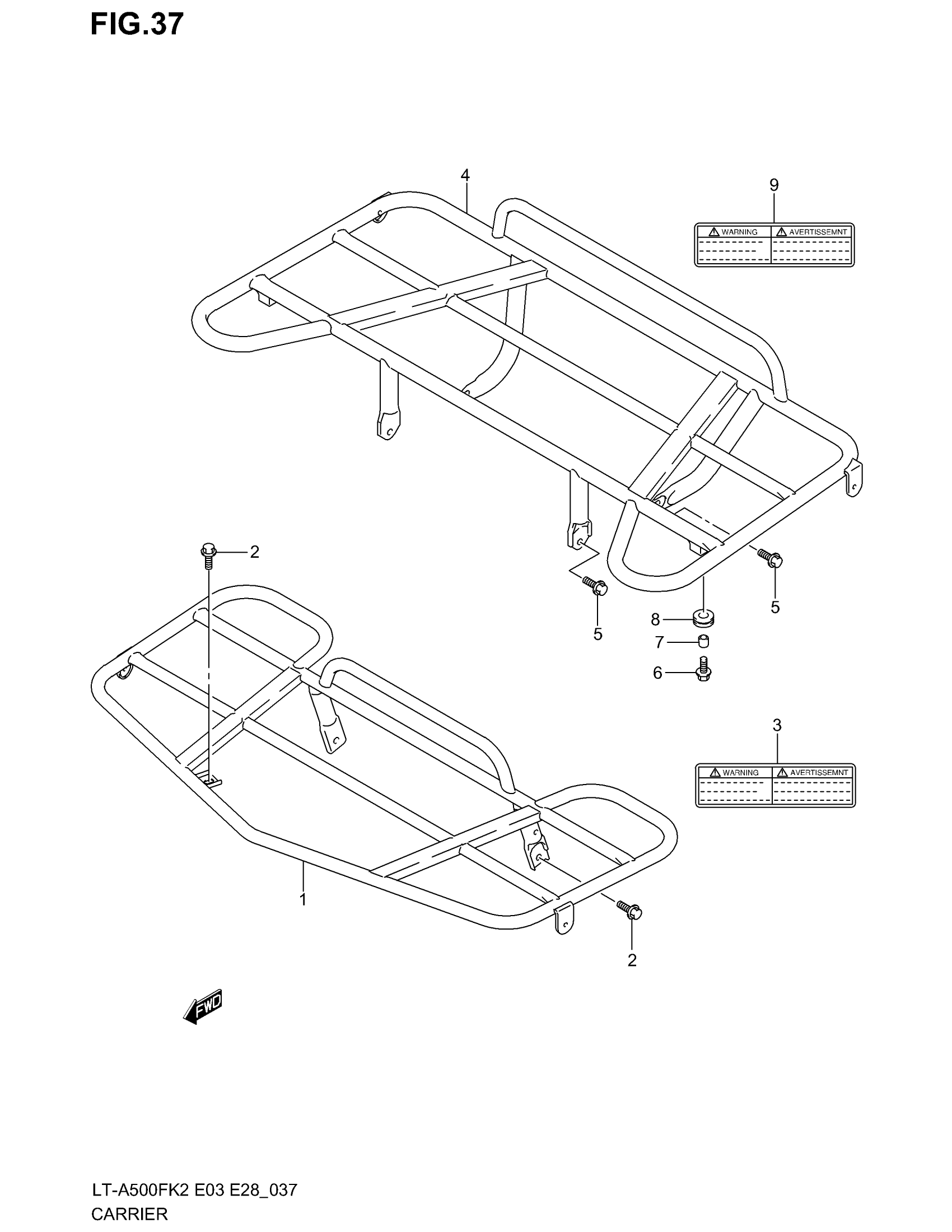

Suzuki LT-A500F (2003) CARRIER Diagram

#

Description
Price

1

CARRIER, FRONT | MODEL K2 E3,E33 This part replaces 46410-03G00-019.

46400-03GD0-YSN

$326.95

1

CARRIER, FRONT | MODEL K3 E3,E33 This part replaces 46410-03G20-019.

46400-03GD0-YSN

$326.95

1

CARRIER, FRONT (BLACK) | MODEL K2 E28

46410-03G10-019

Unavailable

1

CARRIER, FRONT (BLACK) | MODEL K3 E28

46410-03G30-019

Unavailable

2

BOLT This part replaces 01550-08203.

01550-0820A

$2.32

3

LABEL,FRONT CAR | E3,E33 This part replaces 68381-19B00.

68381-19B01

$6.12

3

LABEL,WARNING F | E28 This part replaces 68381-19B20.

68381-19B21

Unavailable

4

CARRIER, REAR | MODEL K2 E3,E33 This part replaces 46310-03G00-019.

46300-03GD0-YSN

$359.17

4

CARRIER, REAR | MODEL K3 E3,E33 This part replaces 46310-03G20-019.

46300-03GD0-YSN

$359.17

4

CARRIER, REAR (BLACK) | MODEL K2 E28

46310-03G10-019

Unavailable

4

CARRIER, REAR (BLACK) | MODEL K3 E28

46310-03G30-019

Unavailable

5

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.39

6

BOLT, LOWER

09116-06147

$3.03

7

SPACER

09180-06290

$2.09

8

CUSHION

09320-11008

$2.66

9

LABEL,REAR CARR | E3,E33 This part replaces 68391-19B00.

68391-19B01

$6.32

9

LABEL, REAR CARRIER (FRENCH) | E28

68391-19B20

Unavailable
