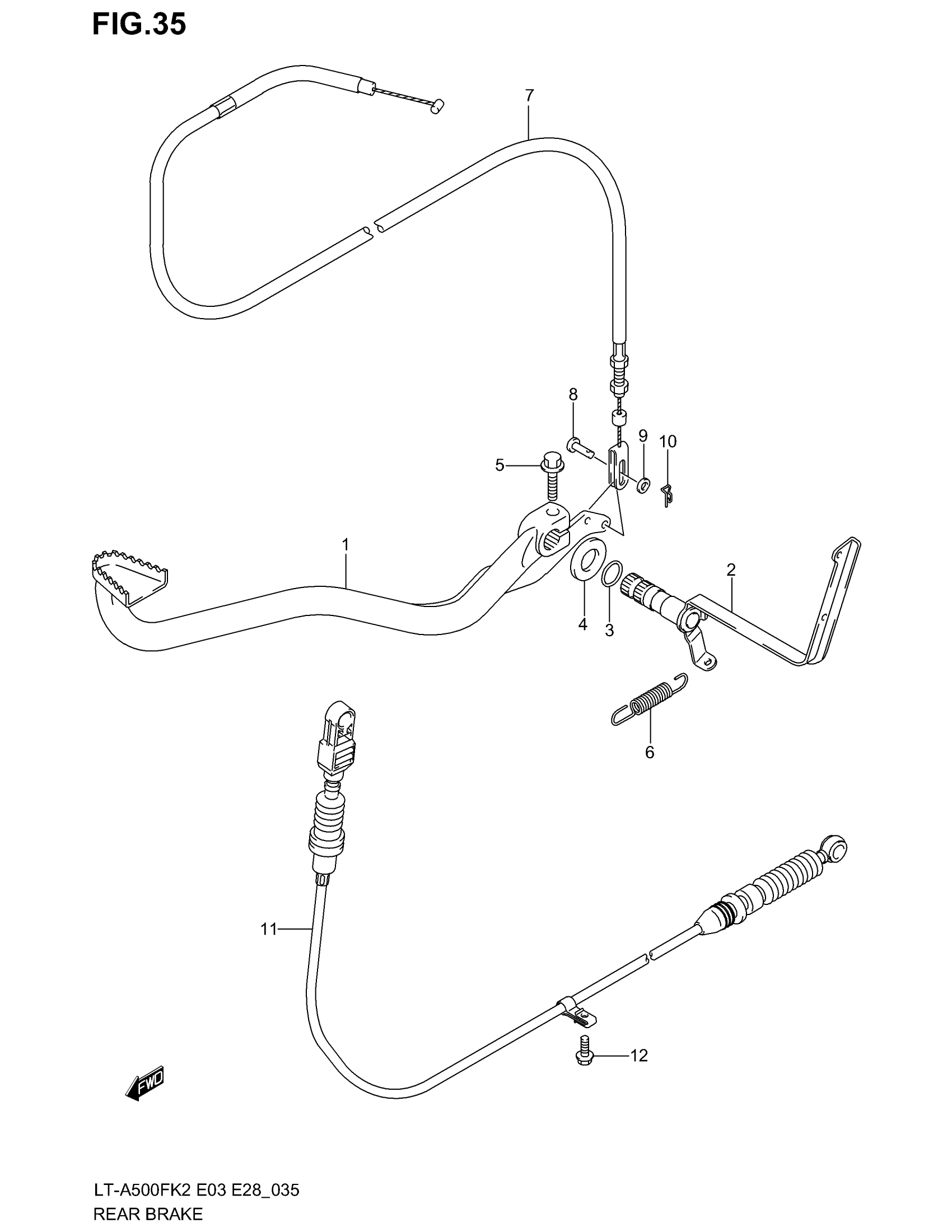

Suzuki LT-A500F (2003) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-03G00

Unavailable

2

ARM, ROD | MODEL K2

43120-03G00

Unavailable

2

ARM, ROD | MODEL K3 This part replaces 43120-03G10.

43120-03G11

Unavailable

3

O RING

09280-17002

$5.11

4

WASHER

09160-17050

$2.45

5

BOLT This part replaces 09103-08152.

09103-08419

$2.53

6

SPRING, RETURN

09443-12019

$4.50

7

CABLE, REAR BRAKE This part replaces 58810-03G00.

58810-03G01

$79.33

8

PIN

09200-06013

$2.00

9

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

10

COTTER PIN

09385-06012

$1.89

11

CABLE, REAR FINAL LOCK

58670-03G00

$135.18

12

BOLT This part replaces 01550-06203.

01550-0620A

$1.97
