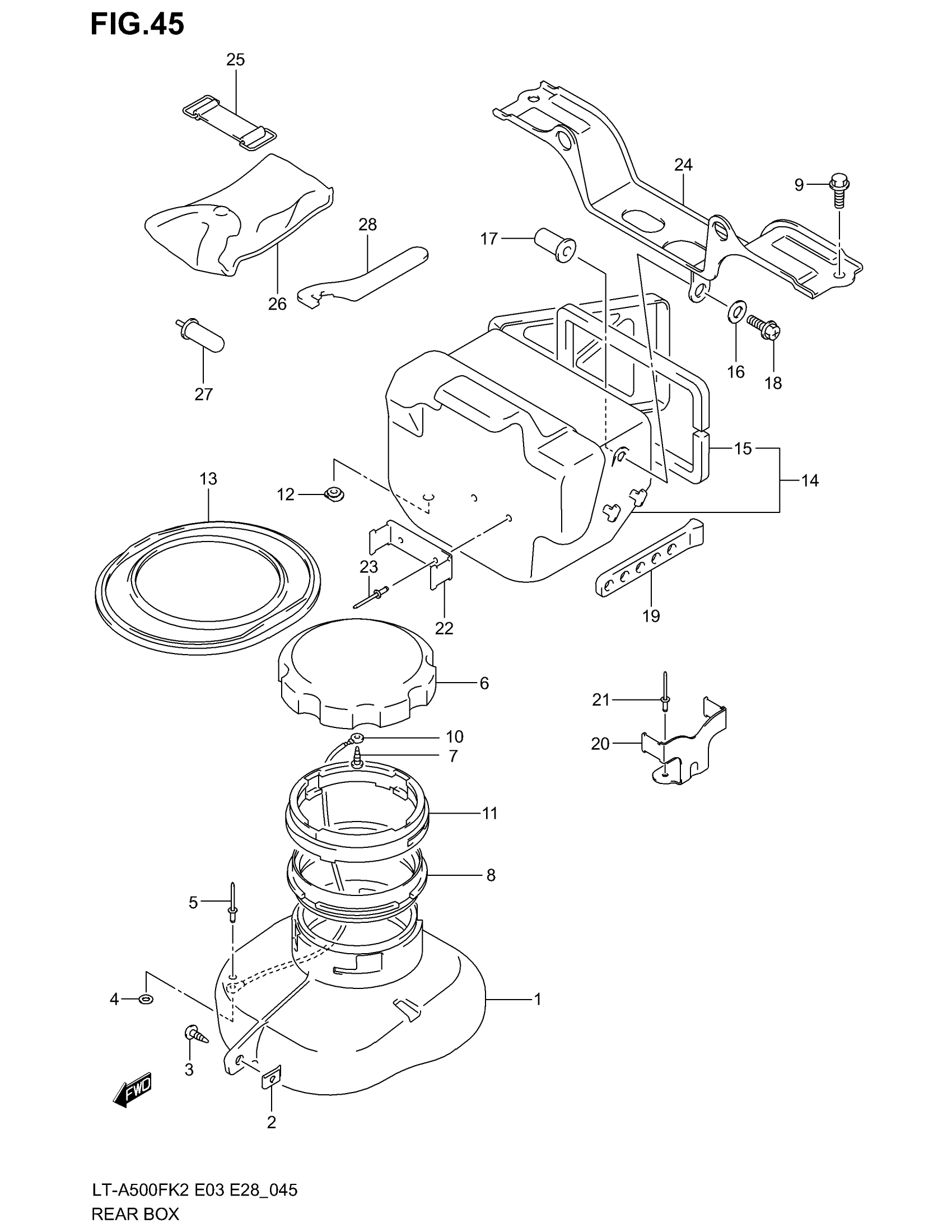

Suzuki LT-A500F (2003) REAR BOX Diagram

#

Description
Price

1

BODY, FRONT BOX

92111-03G00

Unavailable

2

NUT

09148-05038

$1.97

3

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

4

WASHER

08322-01047

$1.86

5

RIVET

09229-04038

$1.49

6

LID, FRONT BOX

92112-03G00

$18.59

7

SCREW This part replaces 03512-05123.

03511-0512A

$1.80

8

HOLDER,FRONT BOX This part replaces 92113-03G00.

92113-03G01

$55.23

9

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

10

STOPPER, FRONT BOX

92114-03G00

$29.84

11

CUSHION, FRONT BOX

92141-03G00

Unavailable

12

CAP (OD:18) This part replaces 09250-10011.

09250-10033

$1.49

13

CUSHION, NO.1

92142-03G00

Unavailable

14

BOX REAR | Includes Item(s) 15

93110-03G00

Unavailable

15

MOLDING

93114-03G00

Unavailable

16

WASHER

09160-05043

$2.30

17

NUT

09159-05019

$7.14

18

SCREW This part replaces 02162-05203.

02162-0520B

$2.62

19

BAND, BOX This part replaces 93191-09F10.

93191-09F11

$12.17

20

PLATE, FUSE BOX

47417-03G00

Unavailable

21

RIVET

09229-04038

$1.49

22

PLATE,CDI UNIT This part replaces 47413-09FA0.

47413-09FA1

Unavailable

23

RIVET

09229-04025

$2.81

24

HOLDER, BOX | MODEL K2 This part replaces 93140-03G00.

93140-03G01

Unavailable

24

HOLDER, BOX | MODEL K3

93140-03G01

Unavailable

25

BAND, TOOL This part replaces 09462-00073.

09462-00093

$9.24

26

TOOL ASSY This part replaces 09800-21040.

09800-21090

$47.92

27

GAUGE ASSY,AIR PRESSUR

96200-18A02

$58.92

28

CLAMP, WRENCH

09822-00004

$14.43
