Description

Price

1

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

$42.50

2

HOSE, RADIATOR INLET

17851-03G00

$63.30

3

HOSE, RADIATOR OUTLET

17852-03G00

Unavailable

4

HOSE, WATER PUMP OUTLET

17854-03G00

$24.37

5

CLAMP

09402-32511

$10.86

6

CLAMP, WATER HOSE NO.1 (L:235)

09407-25401

$4.66

7

CLAMP, WATER HOSE NO.2 (L:165)

09407-18402

$2.19

8

TANK ASSY, RESERVOIR | Includes Item(s) 9

17910-03G00

$70.18

9

CAP, RESERVOIR TANK

17932-12C00

$4.48

10

SCREW

09116-06168

$2.50

11

HOSE SET, RESERVOIR TANK INLE This part replaces 17981-42E00.

17900-27810

$22.00

12

CLIP

09401-08411

$1.78

13

HOSE, OVERFLOW | L:600!440

09352-50901-600

$8.06

14

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

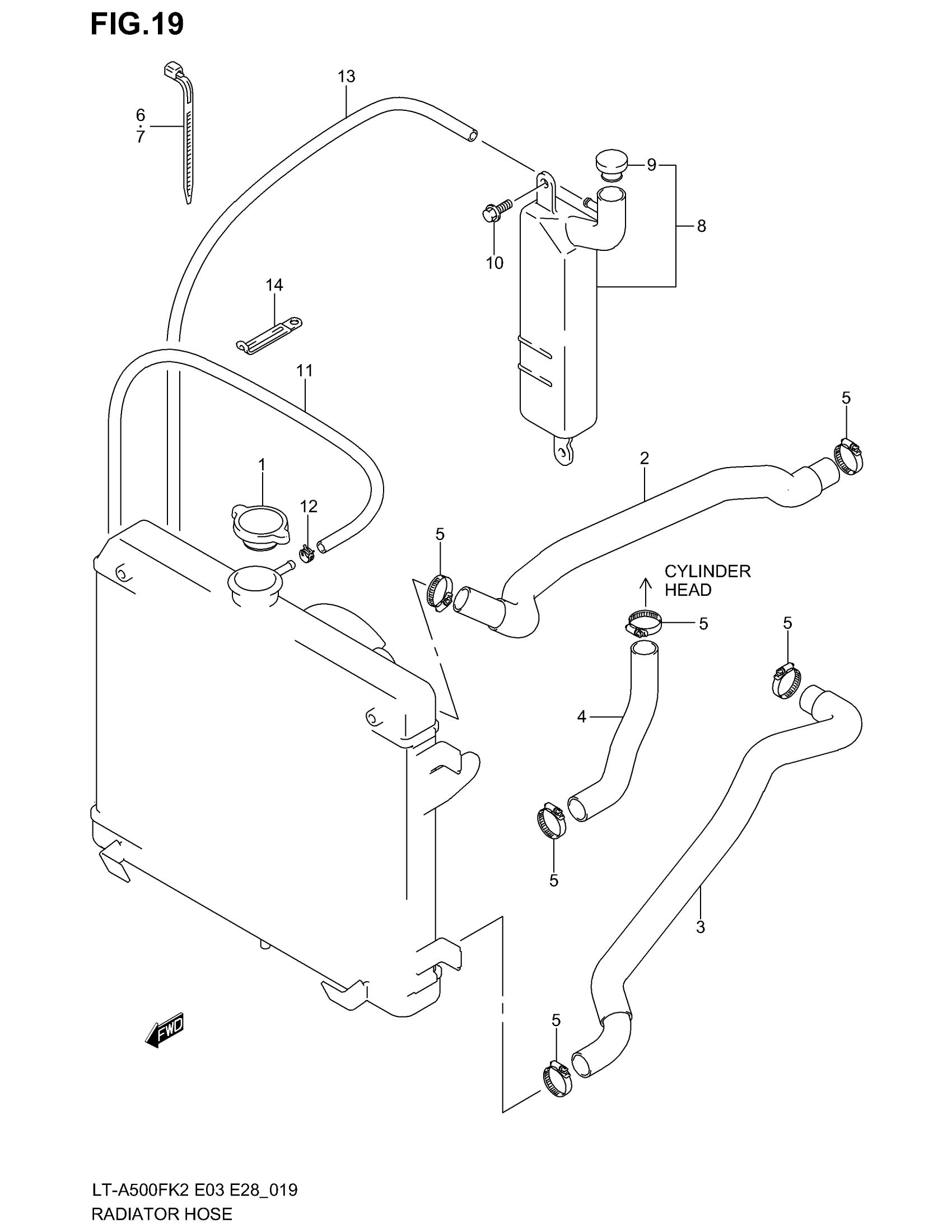

Suzuki LT-A500F (2003) RADIATOR HOSE Diagram
