Description

Price

1

HEADLAMP ASSY, RH This part replaces 35100-03G00-999.

35100-03G60-999

$265.58

2

HEADLAMP ASSY, LH | Includes Item(s) 3 - 7 This part replaces 35300-03G00-999.

35300-03G60-999

$265.58

3

UNIT, RH

35121-03G00

$175.35

4

UNIT, LH

35321-03G00

$186.17

5

RIM, RH

35127-03G00

$31.00

6

RIM, LH

35327-03G00

$27.34

7

CORD ASSY This part replaces 35171-03G00.

35171-03G01

Unavailable

8

BULB (12V,30/30W) This part replaces 09471-12097.

09471-12093

$29.38

9

HEADLAMP ASSY, AUX This part replaces 35100-03GA0-999.

35100-03GA1-999

$128.44

10

BULB (12V,40/40W)

09471-12207

$51.37

11

CLIP

09409-06322-5PK

$3.10

12

BOLT, GEAR SHIFT SW This part replaces 07120-05163.

07120-0516B

$2.53

13

REFLEX REFLECTOR ASSY, FRONT | E28

35950-14A00

$16.94

14

NUT | E28 This part replaces 08316-10053.

08316-1005A

$2.19

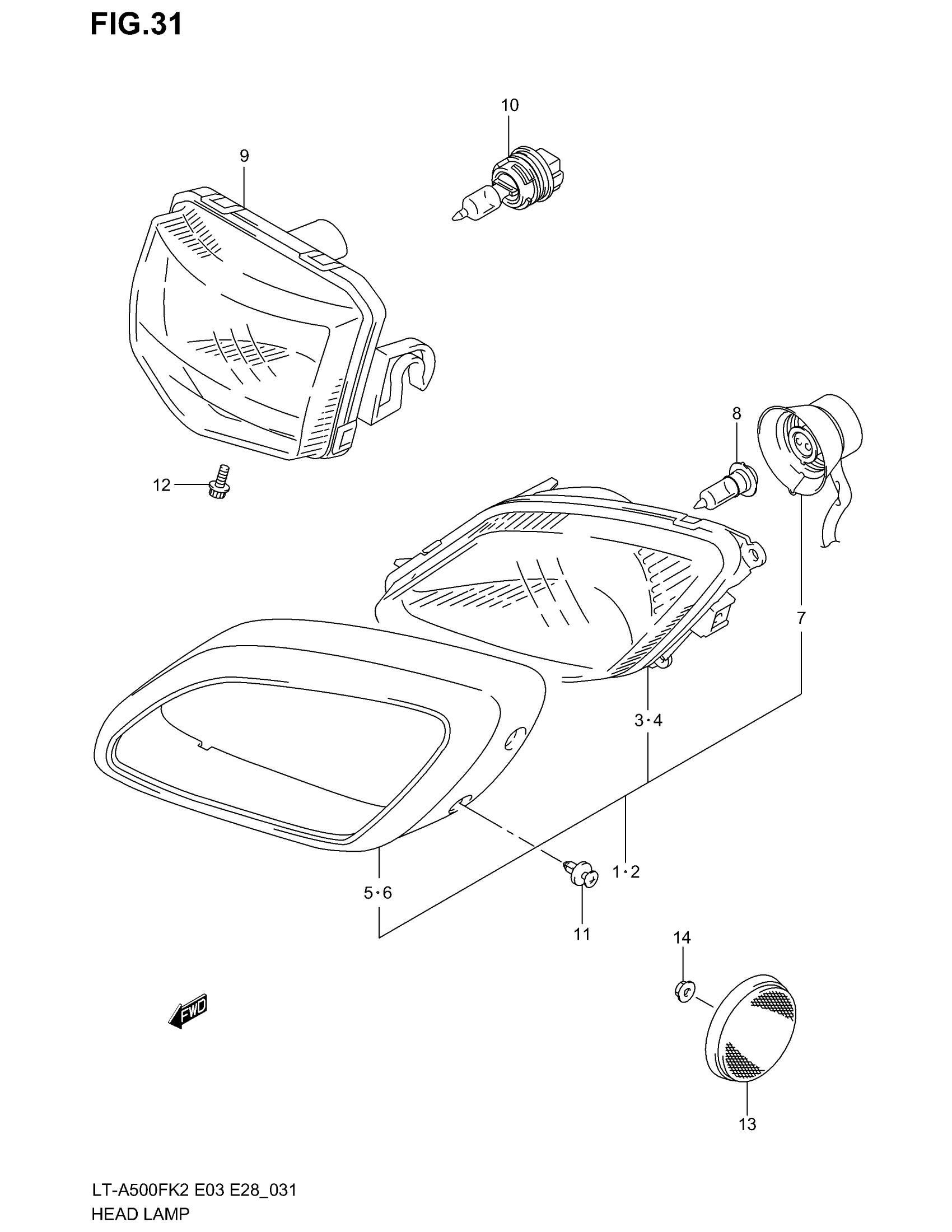

Suzuki LT-A500F (2003) HEADLAMP Diagram
