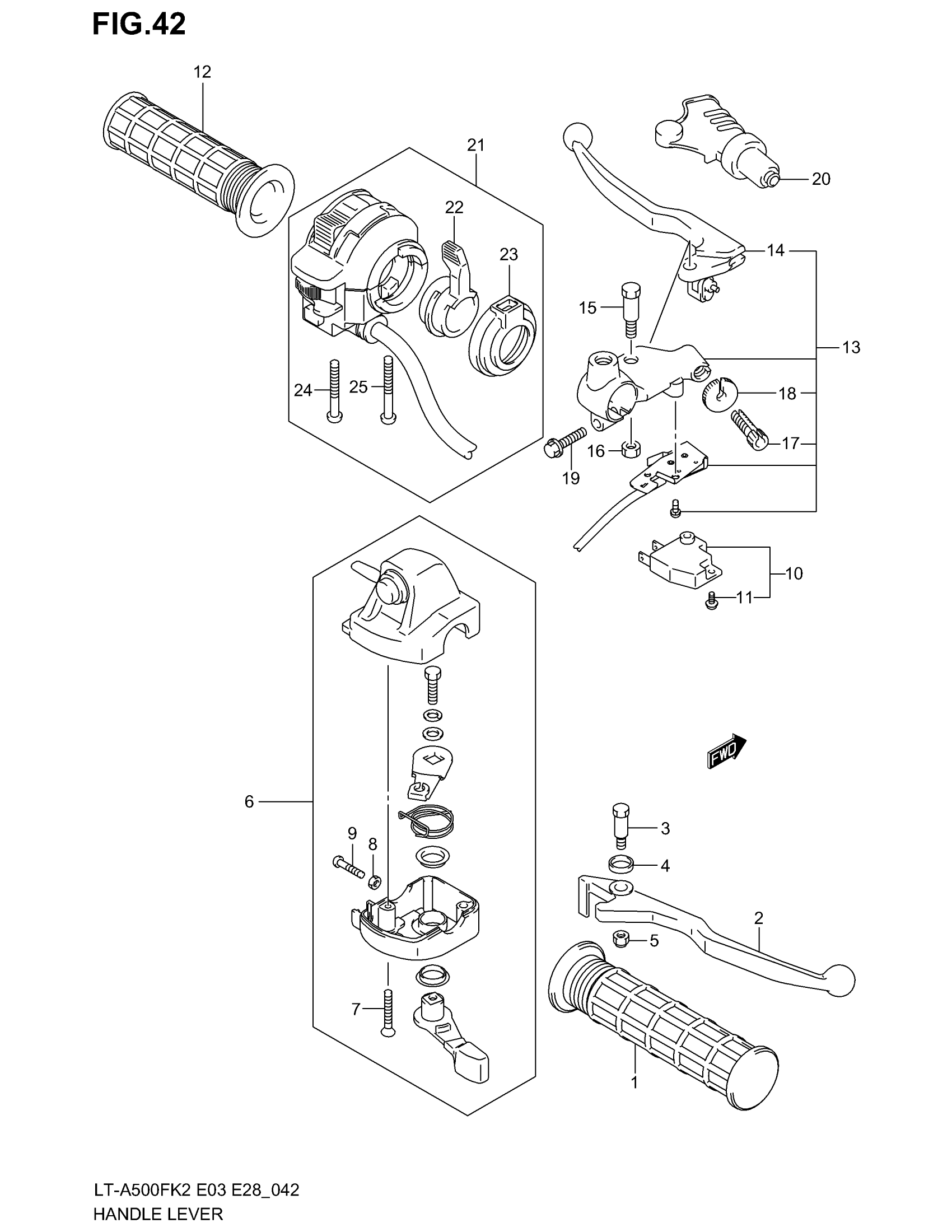

Suzuki LT-A500F (2003) HANDLE LEVER Diagram

#

Description
Price

1

GRIP (BLACK)

57211-22A01-291

$11.42

2

LEVER, BRAKE

57421-39D10

$36.03

3

BOLT

09111-06075

$7.42

4

SPACER

57349-38F00

Unavailable

5

NUT,LEVER PIVOT

57433-09F00

$3.56

6

CASE ASSY, THROTTLE | Includes Item(s) 7 - 9

57100-03G00

Unavailable

7

SCREW

02132-05307

$1.50

8

NUT This part replaces 08310-00053.

08310-0005A

$1.84

9

SCREW

09125-05066

$1.65

10

SWITCH ASSY,FR BRAKE | Includes Item(s) 11 This part replaces 57460-17C00.

57460-14J02

$38.46

11

SCREW

57465-17C00

$2.19

12

GRIP (BLACK)

57211-22A01-291

$11.42

13

LEVER ASSY,RR B | Includes Item(s) 14 - 19 This part replaces 57500-38F00.

57500-38F02

Unavailable

14

LEVER SET, BRAKE This part replaces 57620-38810.

57620-38811

Unavailable

15

..BOLT,LEVER PIVOT This part replaces 57431-45C01.

57431-21D11

$9.76

16

.NUT This part replaces 08319-21063.

08319-2106B

$2.32

17

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

$11.64

18

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

$8.36

19

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

20

COVER,CLUTCH LE | MODEL K2 This part replaces 57661-45C00.

57661-45C01

$7.93

20

COVER, BRAKE LEVEL | MODEL K3

57541-03G00

Unavailable

21

SWITCH ASSY,HAN | Includes Item(s) 22 - 25 This part replaces 37400-09F00.

37400-09F02

$149.91

22

LEVER, CHOKE

37571-19B01

$12.15

23

COVER, CHOKE

37576-19B01

$6.79

24

SCREW

02112-05407

$2.06

25

SCREW

02112-05457

$1.86
