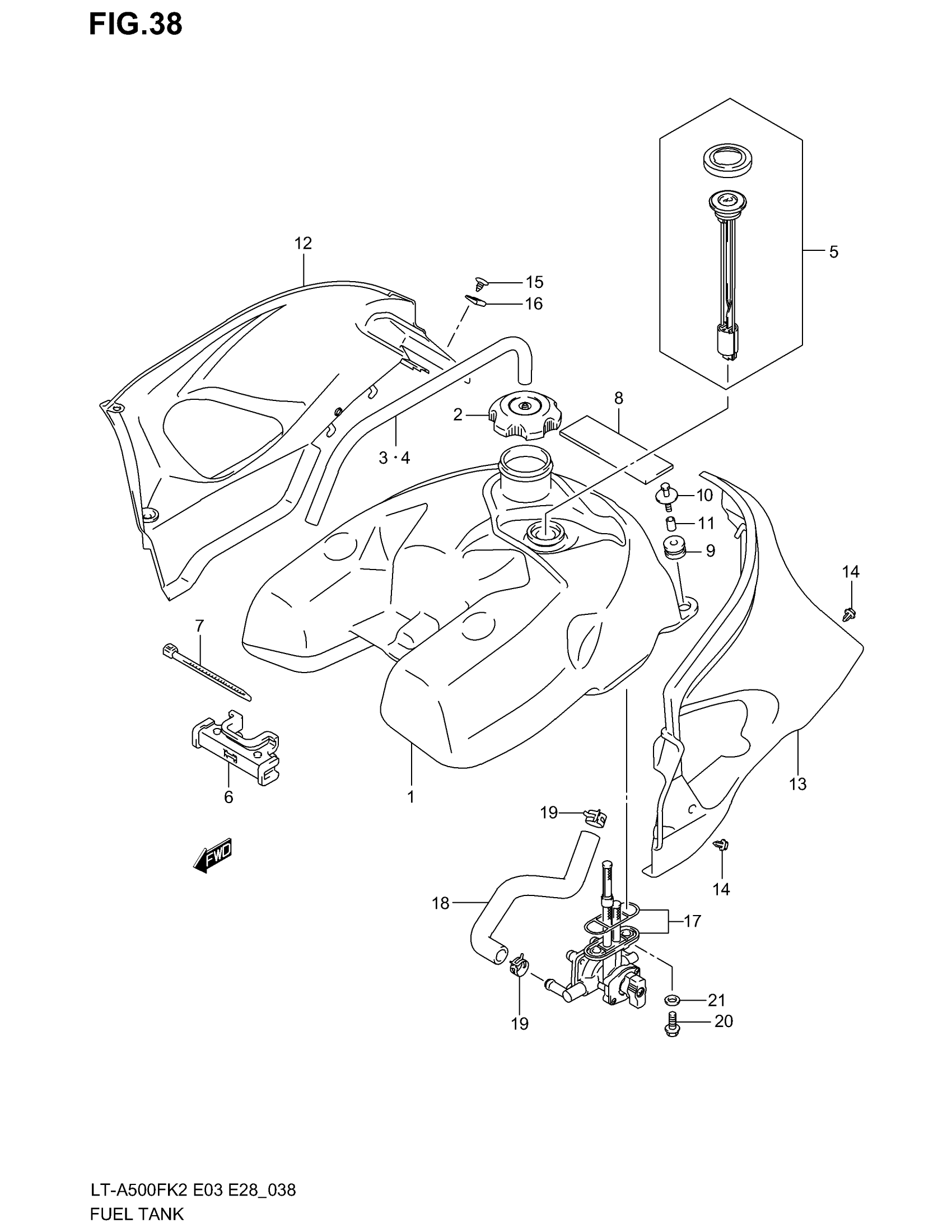

Suzuki LT-A500F (2003) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL This part replaces 44100-03G00.

44100-03G10

Unavailable

2

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

$38.33

3

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

4

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

5

GAUGE ASSY,FUEL This part replaces 44580-03G01.

44580-03G02

Unavailable

6

CUSHION,FUEL TA This part replaces 44511-03G00.

44511-03G01

$20.92

7

CLAMP

09407-14407

$3.57

8

CUSHION

47451-38A01

$4.43

9

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

$5.78

10

BOLT

09116-06050

$2.26

11

SPACER

09180-06293

$2.58

12

COVER, TANK RH (BLACK) | MODEL K2 This part replaces 44271-03G00-291.

44271-03G03-291

Unavailable

12

COVER, TANK RH (BLACK) | MODEL K3 This part replaces 44271-03G01-291.

44271-03G03-291

Unavailable

13

COVER, TANK LH (BLACK) | MODEL K2 This part replaces 44272-03G00-291.

44272-03G02-291

Unavailable

13

COVER, TANK LH (BLACK) | MODEL K3 This part replaces 44272-03G01-291.

44272-03G02-291

Unavailable

14

CLIP

09409-07333

$2.31

15

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

$1.97

16

NUT

09148-05038

$1.97

17

COCK ASSY,FUEL This part replaces 44300-03G01.

44300-03G03

$92.88

18

HOSE, FUEL This part replaces 44421-03G00.

44421-03G01

$20.35

19

CLIP This part replaces 09401-11407.

09401-11415

$2.23

20

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

21

GASKET

09168-06026

$3.10
